ASTM A269 TP304 TP304L TP316 TP316L Stainless Steel Capillary Tube For Medical Device

  • ASTM A269 TP304 TP304L TP316 TP316L Stainless Steel Capillary Tube For Medical Device
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

TP316L Stainless Steel Capillary Tube

,

tp316 Stainless Steel Capillary Tube

,

ASTM A269 TP304 Capillary Tube
Leave a Message
Product Description

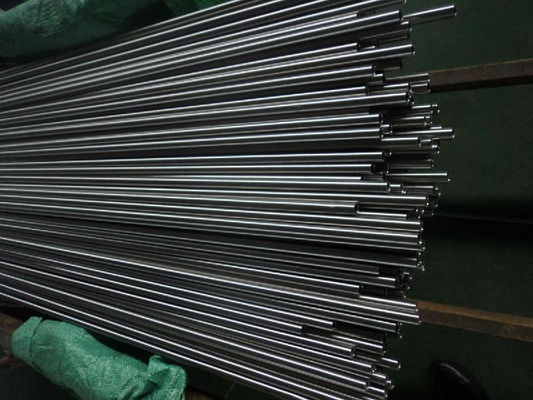

ASTM A269 TP304, TP304L, TP316, TP316L Stainless Steel Capillary Tube For Medical Device



The Stainless Steel Capillary Tube has good corrosion resistance, high-temperature resistance, anti-wear, anti-pilling and good flexibility, etc.. It can also be bent freely to form various bending angles. The stainless steel capillary tube can be kept from deforming regardless of the rotation to each angle. Because of its aesthetically pleasing surface and good corrosion properties, the stainless steel capillary tube doesn't require color plating. In order to ensure the corrosion resistance of the stainless steel capillary, it is necessary to choose the steel containing more than 12% chromium.



As a raw material, stainless steel capillary tubes are widely used in medical, petroleum, aerospace, medical equipment, air conditioning, chemicals, electronics, accessories, kitchen appliances, food machinery, power generation, pharmaceuticals, water supply equipment, boilers, etc..



Size Range 0.35mm to 6.35mm OD
Wall Thickness 0.1 –1.2 mm
Outside Diameter 0.3 –12.0 mm
Specification ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688
Material SS 304, SS 304L, SS 316, SS 316L
Finish Pickled, Polished, Bright Annealed, Electrolytic Polished
Form Round, Strait, Hydraulic etc.
Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed


Equivalent Grades:

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 – Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3



Chemical Composition:

Elements TP304L TP304 TP316L TP316
C, max 0.035 0.08 0.035 0.08
Mn, max 2 2 2 2
P, max 0.045 0.045 0.045 0.045
S, max 0.03 0.03 0.03 0.03
Si, max 1 1 1 1
Ni 8 - 12 8 - 11 10 - 14 10 - 14
Cr 18 - 20 18 - 20 16 - 18 16 - 18
Mo - - 2 - 3 2 - 3
Fe Bal. Bal. Bal. Bal.



Applications:

Pulp and Paper Plant

Oil and Gas Transportation

Medical Devices and Equipments

Chemical and Petrochemical Industries

Measurement Devices

Food and Beverage Industries

Small Precision Stainless Steel Antenna
