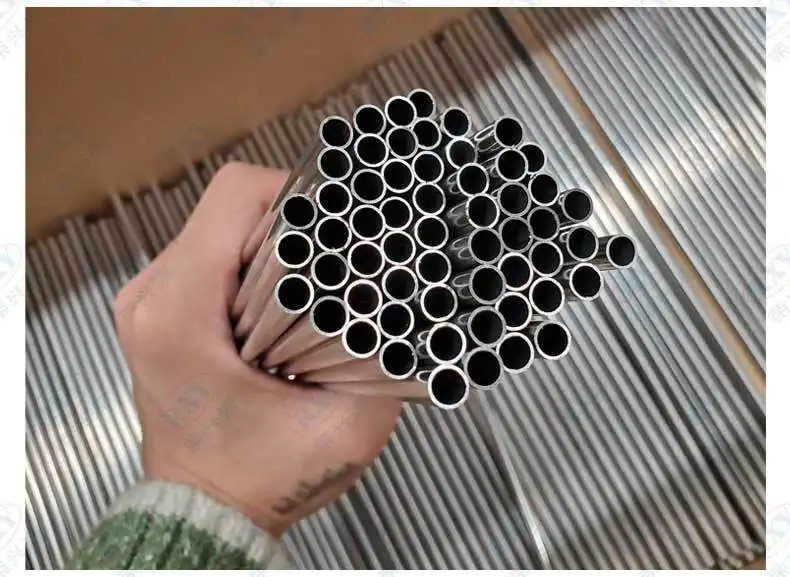

SS304 SS304L SS316 Precision Stainless Steel Capillary Tube Medical Needle Tube

  • SS304 SS304L SS316 Precision Stainless Steel Capillary Tube Medical Needle Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

SS304L Stainless Steel Capillary Tube

,

SS304L Medical Needle Tube

,

SS316 Stainless Steel Capillary Tube
Leave a Message
Product Description

SS304 SS304L SS316 Precision Stainless Steel Capillary Tube Medical Needle Tube



SS304 / SS304L / SS316L Stainless Steel Capillary Tubes are essential components for instrument tubes because of the accuracy and reliability needed to allow for consistent results. Capillary tubes are typically 1/16” OD or smaller. They are used by OEMs that make instrumentation devices such as pressure, level, flow or temperature transmitters. Though some capillary applications are as large 1/8th OD, most are of smaller diameters and integrated with systems and devices. A pressure or level transmitter will have capillary tubing as part of its measuring loop.







Chemical Composition:

Elements SS304L SS304 SS316L SS316
Carbon, max 00.035 00.08 00.035 00.08
Manganese, max 2 2 2 2
Phosphorus, max 00.045 00.045 00.045 00.045
Sulfur, max 00.03 00.03 00.03 00.03
Silicon, max 1 1 1 1
Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
Iron Bal. Bal. Bal. Bal.



Sizes:

Wall Thickness (mm)
O.D. (mm) 0.075 0.08 0.1 0.125 0.15 0.175 0.2 0.225 0.25 0.3 0.35 0.375 0.4 0.45 0.5 0.6 0.75 0.8 0.85 1 1.25 1.5 1.8 2 2.5
0.1
0.2   0.04
0.3 0.15 0.14 0.1
0.4     0.2
0.5     0.3   0.2
0.55
0.6     0.4
0.62         0.32
0.7       0.45 0.4
0.8         0.5 0.45     0.3   0.1
0.9             0.5
1     0.8   0.7   0.6   0.5 0.4 0.3
1.1             0.7
1.2             0.8             0.3
1.3               0.85 0.8
1.4             1
1.5         1.2   1.1   1   0.8   0.7   0.5
1.6             1.2     1         0.6   0.1
1.7             1.3
1.8                 1.3       1
1.9                 1.4
2     1.8       1.6   1.5 1.4         1
2.2                   1.6                 0.5
2.4                         1.6
2.5             2.1   2 1.9     1.7   1.5
2.6                   2
2.8                         2
3             2.6   2.5           2   1.5     1
3.2             2.8           2.4
3.25                                         0.75
3.5                       2.75     2.5 2.3
4                 3.5           3   2.5     2 1.5 1
4.5                 4           3.5
5         4.7   4.6   4.5           4   3.5     3   2 1.4
5.3                 4.8
5.5                                       3.5
6         5.7       5.5       5.2   5   4.5 4.4   4   3 2.4 2



Applications:

Petrochemical Industry

Fluid, Gas and oil Industry

Environmental Protection

Electricity

Hydraulic control lines

Liquid/ Gas Transportation Lines

Medical Devices

Chromatography Applications

Measurement Devices

Remote Thermometer Systems

Small precision Stainless Steel Antenna

Watches Components

Car antenna tube
