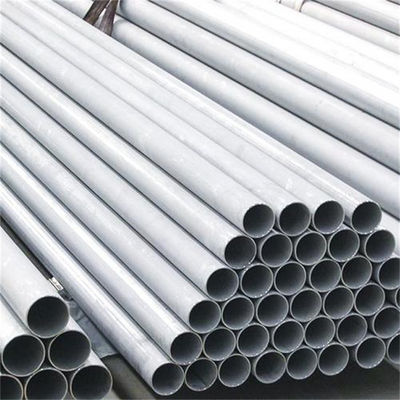

Stainless Steel Seamless Tube For Heat Exchanger Applicaiton EN 10216 / 5 TC 2 Grade 1.4401, 1.4404 , 1.4571

  • Stainless Steel Seamless Tube For Heat Exchanger Applicaiton EN 10216 / 5 TC 2 Grade 1.4401, 1.4404 , 1.4571
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

1.4401 Stainless Steel Seamless Tube

,

1.4571 Stainless Steel Seamless Tube

,

1.4404 Stainless Steel Seamless Tube
Leave a Message
Product Description

Stainless Steel Seamless Tube for heat exchanger applicaiton EN 10216 / 5 TC 2 Grade 1.4401, 1.4404 , 1.4571





Detail:





1 Standard: ASTM A213/ASME SA213, ASTM A789, ASME SA789 , SB677

2 Material: TP304/304L , TP310S/310H, TP316/316L,TP316Ti, TP317/317L, TP321/321H, TP347/347H,

3 OD:6mm-152mm

Thickness: 0.6mm-30mm

4 Certificate: PED, GOST, ISO



SIZE RANGE :

STEEL TYPES SIZE RANGE
Stainless steel seamless pipe&tube OD: 6-609.6mm WT: 0.6-50mm



MAIN STEEL TYPE AND GRADE :

PRODUCTS TYPICAL STEEL GRADE
Austenitic

TP304,TP304L,TP304H,TP316,TP316L,TP316H,TP316Ti

TP321,TP321H,TP347H,904L,TP310H,TP310S,TP317,TP317L
Duplex / Super Duplex S31803, S32205, S32750, S32760, S31500, S32304, S31254



MAIN PRODUCTION STANDARDS:

STANDARD TYPE STANDARD
EN EN10216-5 , EN10216-2
DIN DIN 17456 , DIN 17458
ASTM ASTM A312, A213, A269, A511, A789, A790 ETC
GOST GOST 9941 , GOST 5632
JIS JIS G3459 , JIS G3463
GB GB/T14975,GB/T14975, GB13296, GB5310, GB9948





Stainless Steel Seamless Pipe/ Tube:


1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “Logo(YHSS)+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.

Stainless Steel Seamless Tube For Heat Exchanger Applicaiton EN 10216 / 5 TC 2 Grade 1.4401, 1.4404 , 1.4571 0
