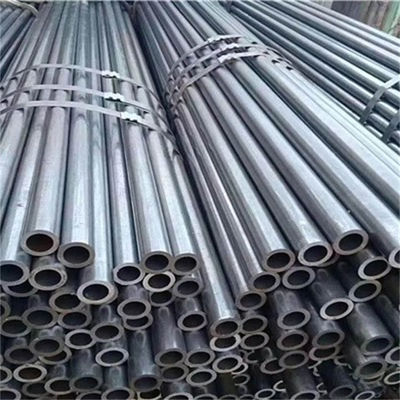

Stainless Steel Seamless Tube EN 10216-5 W.Nr.1.4547 / 1.4462 / 1.4410 / 1.4501 / 1.4529 / 1.4835

  • Stainless Steel Seamless Tube EN 10216-5 W.Nr.1.4547 / 1.4462 / 1.4410 / 1.4501 / 1.4529 / 1.4835
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number stainless steel plate
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details as required
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Price Terms FOB,CIF,CFR,EXW
Application Oil, Petroleum/Power Material 304 ,304L 310 321 316 316L
Highlight

AISI 0.8mm Stainless Steel Sheet

,

AISI 316l stainless steel sheet

,

Inox 0.8mm Stainless Steel Sheet
Leave a Message
Product Description

Stainless Steel Seamless Tube, ASTM A213 TP321 / TP321H, Heat Exchanger Tube 3/4" 16BWG 20FT , EDDY CURRENT TEST






Carbon Chromiun Low Temperature Stainless Steel Duplex Copper& Bronze Titanium Ni-Alloy
SA178-A SA213-T1 SA333-Gr.1 SA213 TP316L A789-S31803 SB111-C70600 SB338-GR.1 SB163 NO2200
SA178-C SA213-T11 SA333-Gr.3 SA249 TP316H A789-S32205 SB111-C71500 SB338-GR.2 SB167 NO2201
SA179 SA213-T12 SA333-Gr.6 SA268 TP316Ti A789-S32750 SB111-C71640 SB338-GR.5 SB444 NO8020
SA192 SA213-T22 SA333-Gr.7 SA269 TP316LN A789-S32760 SB111-C68700 SB338-GR.7 SB514 NO6022
SA209-T1 SA213-T5 SA333-Gr.8 SA376 TP321 A789-S32707 SB111-C44300 SB338-GR.9 SB619 N10276
SA209-T1a SA213-T9 SA334-Gr.1 TP304 TP321H A789-S32304 　 SB338-GR.12 SB622 NO4400
SA209-T1b SA213-T91 SA334-Gr.3 TP304L TP347 A789-S31500 　 　 SB626 NO6600
SA210-A1 　 SA334-Gr.6 TP304H TP347H S31254 　 　 SB674 NO6601
SA210-C 　 SA334-Gr.7 TP304N TP405 254MA 　 　 SB677 NO6625
SA214 　 SA334-Gr.8 TP310H TP409 17-4PH 　 　 SB704 NO690
SA513 MT 1010 　 　 TP310S TP410 17-7PH 　 　 SB705 NO8800
SA513 MT 1015 　 　 TP309S TP430 15-7PH 　 　 N1001 NO8810
SA513 MT 1020 　 　 TP317 TP439 　 　 　 N10665 NO8811
　 　 　 TP317L TP444 　 　 　 N10675 NO8825
　 　 　 TP348 TP446 　 　 　 TP904L 　
　 　 　 TP347HFG 　 　 　 　 　 　





Tube Sizes for Heat Exchangers & Condensers & Boiler

Outside Diameter 　 BWG
25 22 20 18 16 14 12 10
　 Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch 　 Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212 　 　 　
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429 　 　
12.7 1/2 　 0.214 0.263 0.356 0.457 0.612 0.754 　
15.88 5/8 　 0.271 0.334 0.455 0.588 0.796 0.995 　
19.05 3/4 　 0.327 0.405 0.553 0.729 0.895 1.236 　
25.4 1 　 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 　 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 　 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 　 　 　 1.342 1.774 2.244 2.894 3.5
50.8 2 　 　 　 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 　 　 　 1.949 2.554 3.244 4.214 5.13
76.2 3 　 　 　 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 　 　 　 2.729 3.609 4.584 5.974 7.27
101.6 4 　 　 　 　 4.134 5.254 6.854 8.35
114.3 4 1/2 　 　 　 　 4.654 5.924 7.734 9.43









Some of the quality tests carried out by us includes:



Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:



  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing



  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •



Stainless Steel Seamless Tube EN 10216-5 W.Nr.1.4547 / 1.4462 / 1.4410 / 1.4501 / 1.4529 / 1.4835 0
