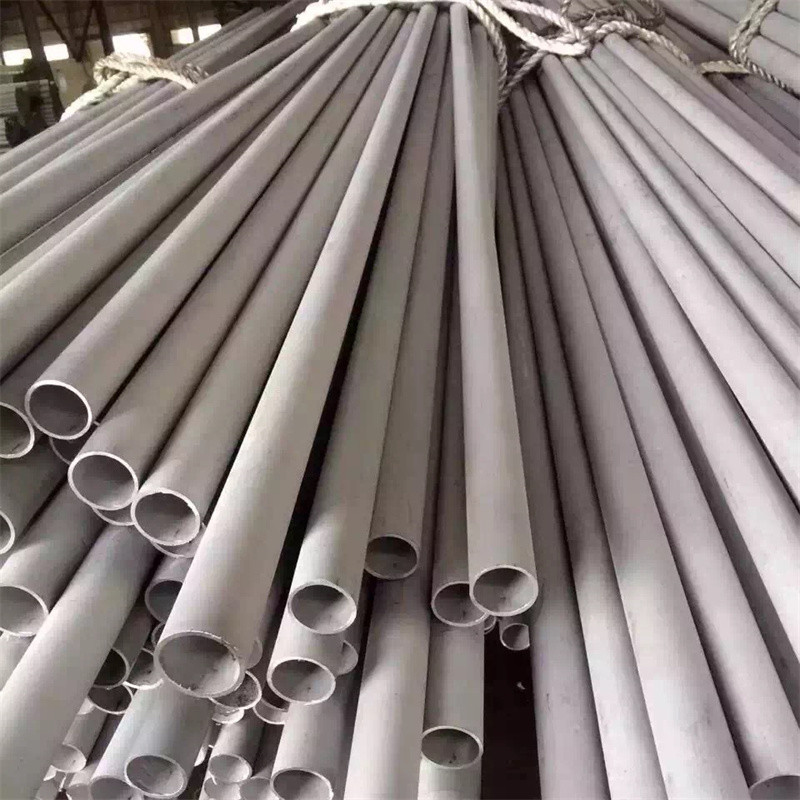

ASTM A213 TP316L Stainless Steel Seamless Heat Exchanger Tubes
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shangle |
| Certification | PED,IS09001 |
| Model Number | stainless steel plate |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | as required |
| Delivery Time | 7-15 working days after receiving payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 9999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Port | Ningbo | Price Terms | FOB,CIF,CFR,EXW |
|---|---|---|---|
| Application | Oil, Petroleum/Power | Material | 304 ,304L 310 321 316 316L |
| Highlight | 4mm Stainless Steel Plate,Metal 4mm ss sheet,5mm Stainless Steel Plate |
||
Product Description
HEAT EXCHANGER TUBE ASTM A213 TP316L STAINLESS STEEL SEAMLESS TUBE
Overview
Grade 316 Stainless Steel Tubes or UNS S31600 Tubes are one of the most common grades of stainless steel offers good strength and heat resistant and oxidation resistance properties in continuous temperature service. The key properties of this material are its high chromium and medium nickel content making its resistance to oxidation, sulfidation and other forms of hot corrosion its main characteristics.
Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields.
Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm).
Specification
ASTM A213/A213M-21a Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.
ASTM A249 / A249M : Standard Specification for Welded Austenitic Steel Boiler, Superheater Heat-Exchanger, and Condenser Tubes.
Other Standard : DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463...
| Specifications | ASTM A213 / ASME SA213 |
| Dimensions | ASTM, ASME and API |
| Range | 1/2"OD - 12"OD |
| Outside Diameter | 3.00 mm - 219.10 mm, 6.35 mm O.D to 114.3 mm O.D |
| Length | Single Random, Double Random & Required Length |
| Thickness | 0.40 mm - 12.70 mm, 0.8 mm to12.7 mm |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS |
| Type | Seamless |
| Form | Round Tube, Square Tube, Rectangular Tube |
| End | Plain End, Beveled End, Treaded |
SS 316L Pipes & Tubes Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications
- 1. Food preparation equipment particularly in chloride environments.
- 2. Laboratory benches & equipment.
- 3. Coastal architectural panelling, railings & trim.
- 4. Boat fittings.
- 5. Chemical containers, including for transport.
- 6. Heat Exchangers.
- 7. Woven or welded screens for mining, quarrying & water filtration.
- 8. Threaded fasteners.
- 9. Springs.
Material Grade
| American Standard | Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Gost Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Some of the quality tests carried out by us includes
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing
Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
