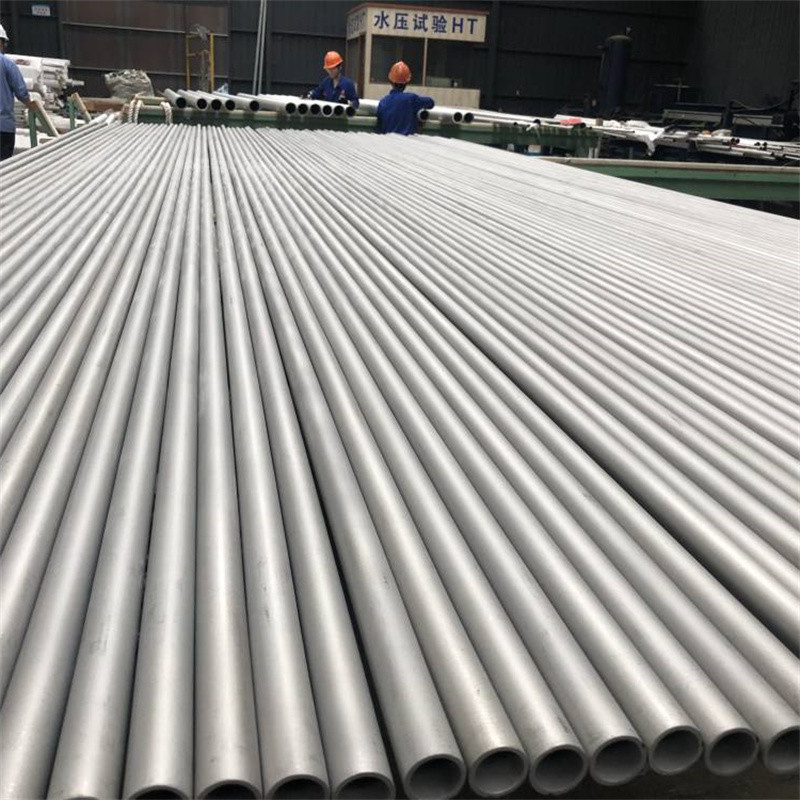

ASTM A213 / ASME SA213 TP310S S31008 Stainless Steel Seamless Tube for Superheater

  • ASTM A213 / ASME SA213 TP310S S31008 Stainless Steel Seamless Tube for Superheater
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Superheater Stainless Steel Seamless Tube

,

ASTM A213 Stainless Steel Seamless Tube

,

ASME SA213 Stainless Steel Seamless Tube
Leave a Message
Product Description

ASTM A213 / ASME SA213 TP310S Stainless Steel Seamless Tube Superheater Application​





ASTM A213 TP310S seamless tubes are made from austenitic stainless steel 25Cr-20Ni, which is higher in chromium and nickel. They have a very high resistance to corrosion and oxidation at elevated temperature. Thus, TP310S seamless tubing can be used for the construction of boilers, superheaters, and heat exchangers working at elevated temperatures in moderately oxidizing conditions.





ASTM A213 TP310S Stainless Steel Seamless Tubes Equivalent Grades

STANDARD UNS WERKSTOFF NR.
SS 310S S31008 1.4845





UNS S31008 Stainless Steel Seamless Tube Chemical Composition

Grade C Ni Si N S Mn P Cr Mo
SS 310S min. - 19.0 - - - - - 24.0 -
max. 0.08 22.0 1.50 - 0.030 2.00 0.045 26.0




Stainless Steel WERKSTOFF NR. 1.4845 Seamless Tubing Mechanical Properties

Grade Tensile Strength (MPa) min Elongation (% in 50mm) min Yield Strength 0.2% Proof (MPa) min Rockwell B (HR B) max Hardness
Rockwell B (HR B) max Brinell (HB) max
SS 310S 515 40 205 95 95 217




Material Grades

American Standard Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
GOST 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ





Some of the quality tests carried out by us includes

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections




Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •





ASTM A213 TP310S Stainless Steel Seamless Tube Application Industry

1. Gas Processing Industries

2. Petrochemical Industries

3. Power Generation Industries

4. Food Processing Industries

5. Chemical Industries

6. Oil & Gas Industries

7. Fertilizers Industries
8. Sugar Industries
ASTM A213 / ASME SA213 TP310S S31008 Stainless Steel Seamless Tube for Superheater 0
