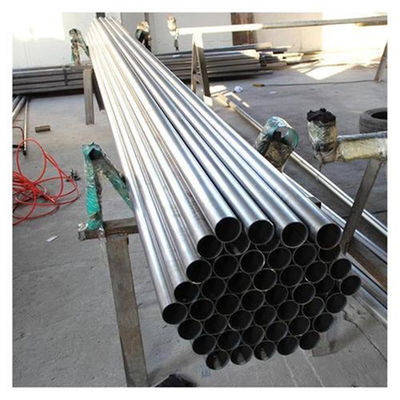

ASME SB338 GR.7 Titanium Alloy Seamless Tube Cold Drawn For Heat Exchanger

  • ASME SB338 GR.7 Titanium Alloy Seamless Tube Cold Drawn For Heat Exchanger
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Cold Drawn Titanium Alloy Seamless Tube

,

ASME SB338 Titanium Alloy Seamless Tube

,

Heat Exchanger Titanium Alloy Seamless Tube
Leave a Message
Product Description

ASME SB338 GR.7 Titanium Alloy Seamless Tube Cold Drawn For Heat Exchanger



We are one of the largest stainless steel, duplex and alloy steel pipe manufacturers in China. After more than 20 years of development, we have accumulated many customers all over the world, and Yuhong products have also won unanimous praise from customers.



ASME SB338 is a Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tube or Tubing for Surface Condensers, Evaporators, and Heat Exchangers. It is the same as ASTM B338 with some minor differences in product marking. There are 28 grades of titanium and titanium alloys used for pipe, with titanium grades 2, 7 and 12 being the most common in pipe applications.



Grade 7 titanium tubing is mechanically and physically identical to CP 2 grade titanium, but due to the addition of palladium to grade 7 titanium, it is the most corrosion resistant of all titanium alloys. Grade 7 titanium tubes are widely used in heat exchange equipment such as tubular heat exchangers, coil heat exchangers, serpentine heat exchangers, condensing evaporators and conveying pipes. Many nuclear power industries use grade 7 titanium tubing as the standard tube for their equipment.



Titanium seamless tubes shall be made from hollow billets by any cold drawing or cold rolling process, with a continuous perimeter at all stages of the manufacturing operation. Titanium welded pipes shall be made from annealed flat rolled sheets by automatic arc welding or other welding processes.



ASME SB338 GR.7 CHEMICAL COMPOSITION

Element Ti Alloy Gr.7
C 0.08 max
Fe 0.30 max
Ti Bal
H 0.015 max
Pd 0.12 - 0.25
O 0.25 max
Al -
N 0.03 max





ASME SB338 GR.7 MECHANICAL PROPERTIES

Element Titanium Alloy Gr7
Density 0.163 lb/in3
Tensile Strength 50
Yield Strength (0.2%Offset) 40/65
Elongation 20%



ASME SB338 GR.7 PHYSICAL PROPERTIES

Beta Transus (F ± 25) 1675
Coefficient of Thermal Expansion (10-6in./in./F) 32-212 4.8
32-600 5.1
32-1000 5.4
32-1200 5.6
32-1500 5.6
Density (lbs./cu. in.) 0.163
Melting Point, Approx (F) 3020
Electrical Resistivity at Room Temp. (Microhms cm) 56
Modulus Elasticity – Tension (106 psi) 14.9
Modulus Elasticity – Torsion (106 psi) 6.5
Thermal Conductivity 9.5 at Room Temperature
(Btu/hr/sq. ft./F/ft.)
Specific Heat (Btu/lb./F) at Room Temp. 0.124
Weldability Good
Annealing Temp. (F) Full 1300°/30 Min. – 2 Hrs,; Air Cool
Stress Relief 1000-1100°/30 Min.; Air Cool
Forging* Temp. (F) Blocking 1600-1700°
Finishing 1500-1600°
Available Mill Products Tube, Tubing
Typical Application For corrosion resistance in the chemical industry where media is mildly reducing
or varies between oxidizing and reducing.
Industry Specifications ASTM

F338 Grade 7




Complete titanium tube production system, from smelting to finished tube production. YUHONG GRUOP has modern production equipment, 20 various rolling mills, 3 vacuum annealing furnaces (effective length up to 18.5 meters), 2 2 ton vacuum consumables melting furnaces and 3 ton vacuum consumables melting furnaces, 1 extruder 2000 tons, 1 hydraulic press 3000 tons. The company has complete quality inspection equipment, equipped with metallographic chemical analyzer, hydrogen, oxygen, nitrogen analyzer and ordinary wire drawing machine, testing machine, hydraulic pneumatic testing machine, hardness tester, eddy current, ultrasonic flaw detection equipment.



Application

  • Food Processing Industry
  • Fabrication Industry
  • Oil and Gas Industry
  • Chemical Industry
  • Plumbing
  • General Purpose Applications
  • Heating
  • Water Supply Systems
  • Power Plant
  • Paper and Pulp Industry
