ASTM A213/ASME SA213 TP316/316L 1.4401/1.4404 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER

  • ASTM A213/ASME SA213 TP316/316L 1.4401/1.4404 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

1.4401 Stainless Steel Heat Exchanger Tube

,

1.4404 STAINLESS STEEL SEAMLESS TUBE

,

ASTM A213 SEAMLESS TUBE
Leave a Message
Product Description

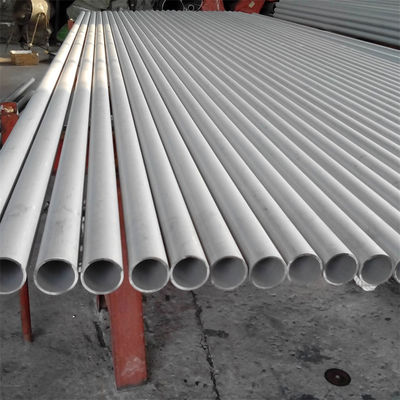

ASTM A213/ASME SA213 TP316/316L 1.4401/1.4404 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER



Overview:

TP316/316L Seamless Tube is a type of austenitic stainless steel tubing that is commonly used in various high-performance applications such as chemical and petrochemical processing, pharmaceutical production, and medical equipment manufacturing. The TP316/316L grade of stainless steel is highly resistant to corrosion and is also known for its excellent mechanical and chemical properties.

These seamless tubes are produced by drawing a solid stainless steel billet through a piercing rod to create a hollow tube with consistent wall thickness and smooth interior surface. The use of seamless tube construction ensures high structural integrity and stability, making it ideal for use in high-pressure applications.

The TP316/316L Seamless Tubes are highly resistant to corrosion and can be used in aggressive environments with temperatures up to 1000℃. They are also extremely resistant to pitting, crevice, and stress corrosion cracking. This makes them ideal for use in chemical processing, marine applications, and oil and gas production.

These tubes are also easy to fabricate and can be welded, bent, and formed into different shapes and sizes without compromising their strength and durability. Additionally, the TP316/316L stainless steel grade has low carbon content, which ensures better weldability and minimizes the risk of intergranular corrosion.

The tubes come in various sizes and thicknesses and are produced according to various international standards such as ASTM, ASME, and EN standards. Post-production heat treatment ensures the final product has the required mechanical and chemical properties.

Specification:

Specification ASTM A213 & Its equivalent ASME, DIN & EN Standard.
Grades TP316/316L; 1.4401/1.4404
Type U-bend & Straight seamless tube
Outer Diameter 1/4'' to 2'' or custom size
Wall Thickness BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10
Length Upto 6 meters, custom cut lengths
Delivery Condition Solution Annealed & Pickled/Bright Annealed
Ends Plain End, Beveled End
Other Testing Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc.
Dimension All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packing Plywood case/Woven bag in bundle


Chemical Composition:

Grade UNS C Mn P S Si Cr Ni Mo
TP316 S31600 0.08 max 2.00 max 0.045 max 0.03 max 1.00 max 16.0-18.0 10.0-14.0 2.00-3.00
TP316L S31603 0.035 max 2.00 max 0.045 max 0.03 max 1.00 max 16.0-18.0 10.0-14.0 2.00-3.00


Mechanical Properties:

Grade Tensile Strength, min, ksi (MPa) Yield Strength,
min, ksi (MPa)		 Elongation in 2 in.
or 50mm, min (%)		 Hardness Solutioning Temperature,
min, °F(°C)
Rockwell Brinell/Vickers
TP316 75(515) 30(205) 35 90HRB 192HBW/200HV 1900(1040)
TP316L 70(485) 25(170) 35 90HRB 192HBW/200HV 1900(1040)


Applications:

1.Off-Shore Oil Drilling Companies
2.Power Generation
3.Petrochemicals
4.Gas Processing
5.Specialty Chemicals
6.Pharmaceuticals
7.Pharmaceutical Equipment
8.Chemical Equipment
9.Sea Water Equipment
10.Heat Exchangers
11.Condensers
12.Pulp and Paper Industry

ASTM A213/ASME SA213 TP316/316L 1.4401/1.4404 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER 0
