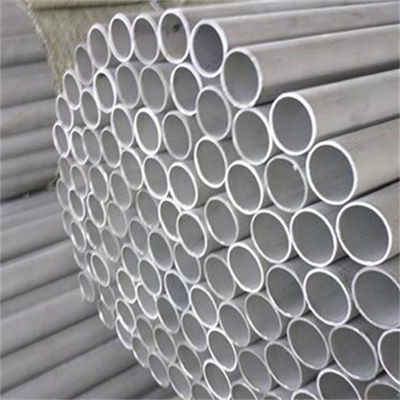

ASTM B163 / ASME SB163 UNS N04400 / DIN 2.4360 / MONEL 400 NICKEL ALLOY SEAMLESS TUBE

  • ASTM B163 / ASME SB163 UNS N04400 / DIN 2.4360 / MONEL 400 NICKEL ALLOY SEAMLESS TUBE
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

ASME SB163 NICKEL ALLOY SEAMLESS TUBE

,

DIN 2.4360 NICKEL ALLOY SEAMLESS TUBE

,

MONEL 400 NICKEL ALLOY SEAMLESS TUBE
Leave a Message
Product Description

ASTM B163/ASME SB163 UNS N04400/DIN 2.4360/MONEL 400 NICKEL ALLOY SEAMLESS TUBE





Overview:



Monel 400 is a nickel-copper alloy that offers excellent resistance to corrosion in various environments. It also provides good mechanical properties, making it suitable for use in a wide range of applications, including marine engineering, chemical processing, and aerospace.



Monel 400 seamless tubes are widely used in the chemical processing industry, where they serve as a cost-effective alternative to high-performance alloys such as Inconel and Hastelloy. The tubes have a high resistance to corrosion by seawater, chlorides, and reducing acids, making them suitable for use in marine environments.



The seamless tubes are available in different sizes, thicknesses, and lengths, and can be customized to fit specific end-user requirements. The manufacturing process ensures uniform wall thickness, high dimensional accuracy, and excellent surface finish.



Monel 400 seamless tubes also exhibit good mechanical properties, including high strength and ductility. They have excellent resistance to stress-corrosion cracking and thermal fatigue, making them ideal for use in high-stress and high-temperature applications.



The tubes also exhibit good formability and weldability, allowing them to be shaped and joined easily. Their excellent thermal conductivity and low electrical resistivity make them suitable for use in electrical and electronic components.



Specification:



Specifications ASTM B163 & Its equivalent ASME, DIN & EN Standard
Grades UNS N04400/DIN 2.4360/MONEL 400
Type U-bend & Straight seamless tube
Outside Diameter 1/4'' to 2'' or custom size
Wall Thickness BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10
Length Upto 6 meters, custom cut lengths
Delivery Condition Solution Annealed & Pickled
Ends Plain End, Beveled End
Other Testing Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc.
Dimension All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packing Plywood case/Woven bag in bundle



Chemical Composition:

Grade Ni Cu Fe Mn C Si S
UNS N04400 63.0 min. 28.0-34.0 2.50 max. 2.00 max. 0.30 max. 0.50 max. 0.024 max.



Mechanical Properties:

Grade Tensile Strength, min, ksi (MPa)

Yield Strength,

min, ksi (MPa)

Elongation in 2 in.

or 50mm, min (%)
UNS N04400 70(483) 28(193) 35



Applications:



1. Marine engineering.

2. Chemical and hydrocarbon processing equipment.

3. Gasoline and freshwater tanks.

4. Crude petroleum stills.

5. De-aerating heaters.

6. Boiler feed water heaters and other heat exchangers.

7. Valves, pumps, shafts, fittings, and fasteners.

8. Industrial heat exchangers.

9. Chlorinated solvents.

10. Crude oil distillation towers.
