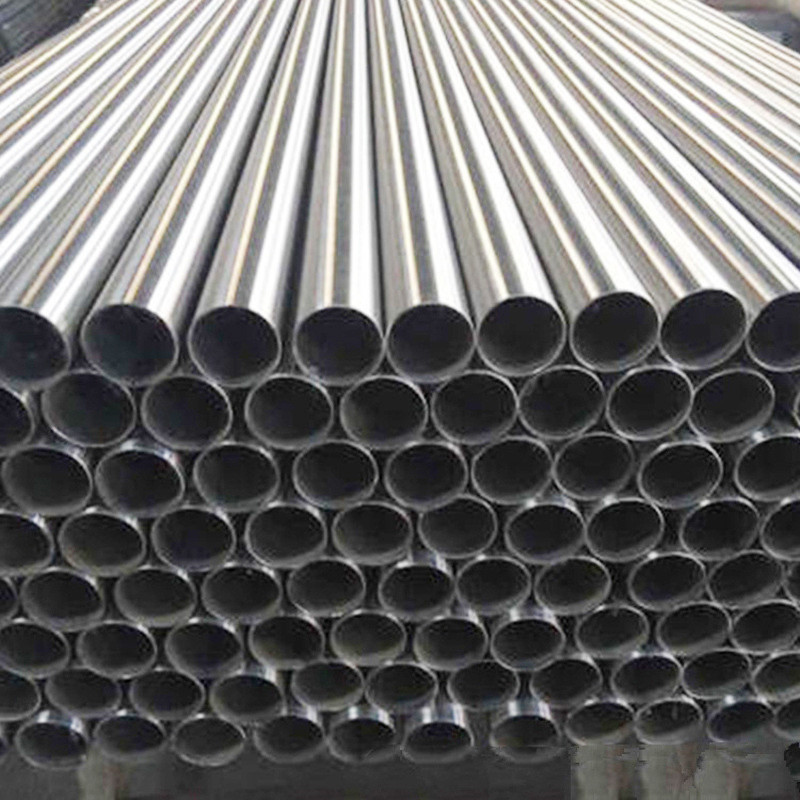

ASTM A213 / ASME SA213 T5 Alloy Steel Seamless Tube For Heat Exchanger

  • ASTM A213 / ASME SA213 T5 Alloy Steel Seamless Tube For Heat Exchanger
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Heat Exchanger Alloy Steel Seamless Tube

,

ASTM A213 Alloy Steel Seamless Tube
Leave a Message
Product Description

ASTM A213/ASME SA213 T5 ALLOY STEEL SEAMLESS TUBE FOR HEAT EXCHANGER





Overview:



Grade T5 Seamless Tube is a type of alloy steel tube that is designed for use in high-temperature applications. The T5 grade of alloy steel contains a high concentration of chromium and molybdenum, which give it excellent resistance to high-temperature oxidation and corrosion.



The T5 Seamless Tubes are commonly used in industries such as power generation, chemical processing, and oil and gas production. They are also used in heat exchangers, boilers, and other high-temperature applications.



The T5 Seamless Tube is seamless, meaning that it has no welded joints. This makes it highly resistant to leaks and reduces the probability of failure in high-pressure applications. The tube is available in various sizes, and thicknesses, and can be produced according to client specifications with strict adherence to international standards such as ASTM A213 and A269.



The T5 Seamless Tube's high-temperature oxidation resistant properties are due to the high levels of chromium and molybdenum in addition to a small percentage of carbon. These chemical properties ensure that the tube has excellent corrosion resistance and can withstand high temperatures.



The tube's molybdenum content also gives it excellent mechanical properties, including high tensile strength, hardness, and wear resistance. This makes it ideal for use in applications requiring high strength and durability.



The T5 Seamless Tube can also be easily machined and fabricated into various shapes and sizes without compromising its structural integrity. It is also capable of being welded using standard welding procedures and without preheat treatments.



Specification:



Specification ASTM A213 & Its equivalent ASME, DIN & EN Standard.
Grades T5
Type U-bend & Straight seamless tube
Outer Diameter 1/4'' to 2'' or custom size
Wall Thickness BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10
Length Upto 6 meters, custom cut lengths
Delivery Condition Normalize & Temper
Ends Plain End, Beveled End
Other Testing Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc.
Dimension All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packing Plywood case/Woven bag in bundle



Chemical Composition:

Grade C Mn P S Si Cr Mo
T5 0.15 max 0.30-0.60 0.025 max 0.025 max 0.50 max 4.0-6.0 0.45-0.65



Mechanical Properties:

Grade Tensile Strength, min, ksi (MPa)

Yield Strength,

min, ksi (MPa)

Elongation in 2 in.

or 50mm, min (%)

 Hardness Subcritical Annealing
or Tempering
Temperature,
min or range °F [°C]
Rockwell Brinell/Vickers
T5 60(415) 30(205) 30 85HRB 163HBW/170HV 1250(675)



Applications:



Grade T5 Seamless Tubes have excellent high-temperature mechanical properties, making them suitable for use in high-temperature applications. Some of the common applications of T5 seamless tubes include:



1. Power Generation: T5 Seamless Tubes are used in power generation applications such as boilers, superheaters, and reheaters, where they can withstand high-temperature and high-pressure conditions. These components play a crucial role in improving the efficiency of power plants and reducing emissions.



2. Chemical Processing: The T5 Seamless Tubes are used in chemical processing plants because of their excellent corrosion resistance properties. The tubes can handle harsh chemicals, high temperatures, and pressure conditions, thus making them suitable for pipes, heat exchangers, and reactors.



3. Oil and Gas Production: T5 seamless tubes are extensively used in the oil and gas industry, particularly in upstream production and processing. They are used in equipment such as heat exchangers, boilers, and pipelines, where they can withstand the harsh conditions of oil and gas production.



4. Aerospace: T5 Seamless Tubes are used in aerospace applications for their mechanical properties, which include high strength and toughness. They can withstand the high temperatures and pressures associated with the operation of aircraft engines.
