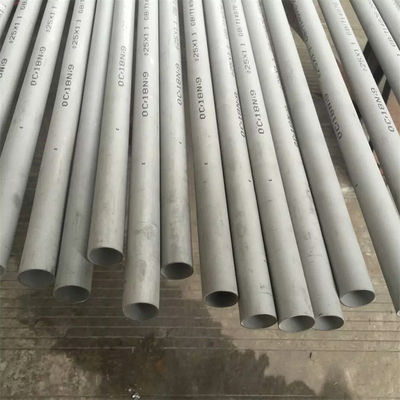

ASTM A213/ASME SA213 TP310S 1.4845 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER

  • ASTM A213/ASME SA213 TP310S 1.4845 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

1.4845 Stainless Steel Seamless Tube

,

ASME SA213 TP310S STEEL SEAMLESS TUBE

,

ASTM A213 STEEL SEAMLESS TUBE
Leave a Message
Product Description

ASTM A213/ASME SA213 TP310S/1.4845 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER





Overview:



310S Seamless Tube is a type of austenitic stainless steel tube that is designed to withstand high-temperature environments. It is commonly used in industries such as chemical and petrochemical processing, power generation, oil and gas production, and furnace manufacturing.



The 310S grade of stainless steel is a high-alloy austenitic stainless steel that contains 25% chromium and 20% nickel, along with a significant amount of molybdenum. This composition provides the tube with superior resistance to high-temperature oxidation and corrosion, making it highly suitable for use in high-heat applications.



310S Seamless Tubes are often used in extreme temperature conditions such as furnaces, kilns, and heat exchangers where they can operate at temperatures up to 1,200°C without showing signs of deformation or loss of mechanical properties. This type of tube is seamless, meaning it is made without seams or welded joints, which ensures a high degree of structural integrity and stability.



The tubes are available in a range of sizes, from small diameter tubes used in instrumentation and control systems to large diameter tubes used in oil and gas applications. They are manufactured using a variety of cold-working techniques, which include cold drawing, cold rolling, and cold forging.



In addition to its excellent high-temperature performance, 310S stainless steel is also highly resistant to corrosion, pitting, and crevice corrosion. This property makes it a popular choice in applications where the tubes are exposed to corrosive fluids, like acids and alkalies.



In summary, 310S Seamless Tube is a specialized type of austenitic stainless steel tube that is designed to withstand high temperatures and harsh environments. Its exceptional properties make it ideal for use in areas like furnace manufacturing, heat exchangers, and oil and gas applications, where its resistance to high-temperature oxidation and corrosion provide excellent performance.


Specification:



Specification ASTM A213 & Its equivalent ASME, DIN & EN Standard
Grades TP310S; 1.4845
Type U-bend & Straight seamless tube
Outer Diameter 1/4'' to 2'' or custom size
Wall Thickness BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10
Length Upto 6 meters or custom cut lengths
Delivery Condition Solution Annealed & Pickled; Bright Annealed
Ends Plain End, Beveled End
Other Testing Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc.
Dimension All Pipe & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packing Plywood case/Woven bag in bundle


Chemical Composition:

Grade C Mn Si P S Cr Ni
TP310S 0.08 max 2.00 max 1.00 max 0.045 max 0.03 max 24.0-26.0 19.0-22.0


Mechanical Properties:

Grade Tensile Strength, min, ksi (MPa)

Yield Strength,

min, ksi (MPa)

Elongation in 2 in.

or 50mm, min (%)

 Hardness

Solutioning Temperature,

min, °F(°C)
Rockwell Brinell/Vickers
TP310S 75(515) 30(205) 35 90HRB 192HBW/200HV 1900(1040)

Applications:

1.Gas Procesing Industries
2.Petrochemical Industries
3.Power Generation Industries
4.Food Processing Industries
5.Chemical Industries
6.Oil & Gas Industries
7.Fertilizers Industries
8.Suger Industries
ASTM A213/ASME SA213 TP310S 1.4845 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER 0
