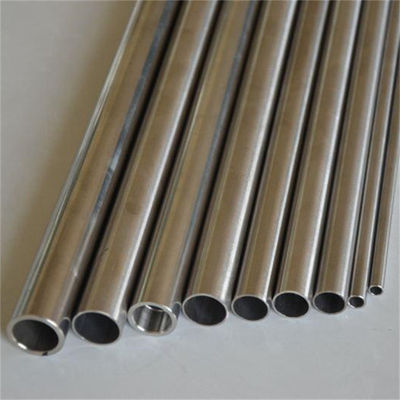

Heat Exchanger Tube ASME SA213 TP304 / 1.4301 Stainless Steel Tube HT & ET

  • Heat Exchanger Tube ASME SA213 TP304 / 1.4301 Stainless Steel Tube HT & ET
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

ASME SA213 Heat Exchanger Tube

,

1.4301 Heat Exchanger Tube
Leave a Message
Product Description

Heat Exchanger Tube ASME SA213 TP304 / 1.4301 Stainless Steel Tube HT & ET


ASTM A213 TP304 SS Tubing sizes and thicknesses usually furnished to this specification are 1/8 inch [3.2 mm] in inside diameter to 5 inch [127 mm] in outside diameter and 0.015 to 0.500 inch [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified in the order, average wall thickness. ASTM A213 TP304 Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.



ASTM A213 TP304 STAINLESS STEEL TUBE SPECIFICATION

ASTM A213 TP304 Stainless Steel Tubes Specification ASTM A-213 & Its equivalent ASME, DIN & EN Standard.
ASTM A213 TP304 Tubes Grades 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410,446
ASTM A213 TP304 Stainless Steel Tubes Type Seamless Ferritic and Austenitic Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A213 TP304 Tubes Outer Diameter Size 1/4” OD, NB to 3” OD, NB sizes
ASTM A213 TP304 Stainless Steel Tubes Thickness 1mm to 12mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
ASTM A213 TP304 Tubes Length Up to 6 meters, custom cut lengths
ASTM A213 TP304 Tubes Ends No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Seamless Tubes
ASTM A213 TP304 Tubes Delivery Conditions As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
ASTM A213 TP304 Stainless Steel Tubes Coating Electropolish, Mechanical Polish, Satin Finish, Passivated
ASTM A213 TP304 Tubes Other Testing Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
ASTM A213 TP304 Tubes Dimension All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
ASTM A213 TP304 Tubes Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM A213 TP304 Stainless Steel Tubes Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM A213 TP304 Stainless Steel Tubes Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
ASTM A213 TP304 Stainless Steel Tubes Delivery By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 30 Feet Container / 35 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes



CHEMICAL COMPOSITION:

GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0



MECHANICAL PROPERTIES:

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min.º F(º C) Ksi (MPa), Min. Ksi (MPa), Min.

TP304 Solution 1900 (1040) 75(515) 30(205) 35



PHYSICAL PROPERTIES:


Grade		 Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
304 8000 193 17.2 17.8 18.4 16.2 21.5 500 720



EQUIVALENT:

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
ASTM A213 TP304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304

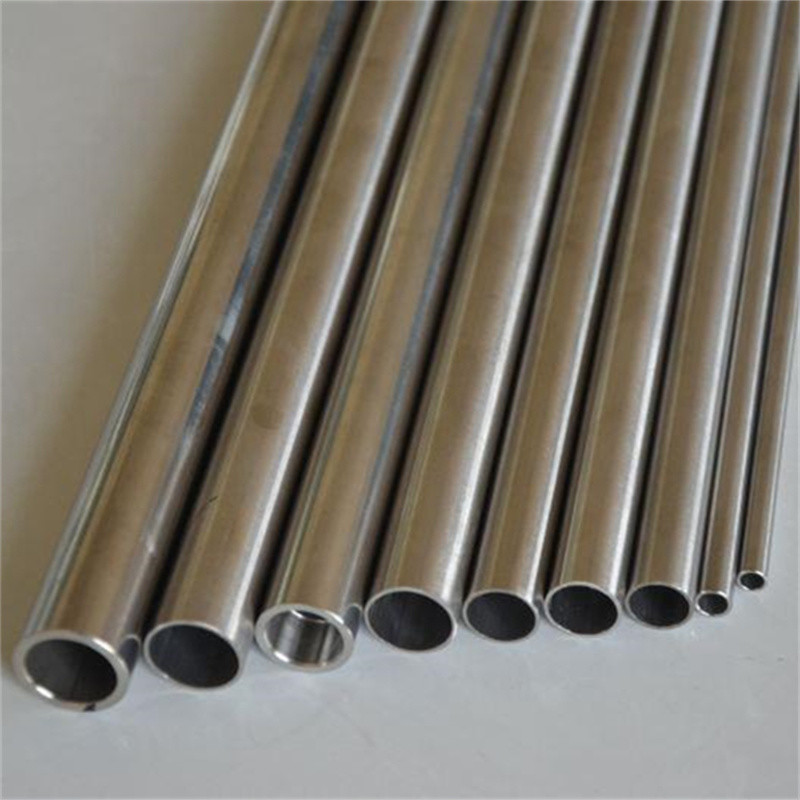

Heat Exchanger Tube ASME SA213 TP304 / 1.4301 Stainless Steel Tube HT & ET 0
