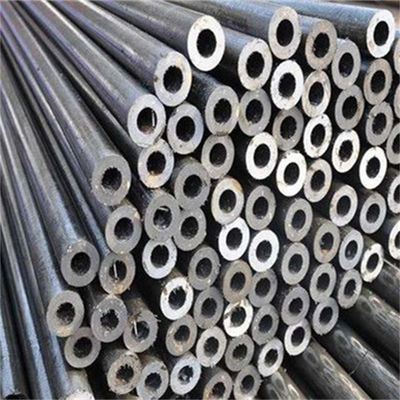

ASTM A268 TP410 (1.4006 UNS S41000) Ferritic Steel Seamless Tube For Heat Exchanger

  • ASTM A268 TP410 (1.4006 UNS S41000) Ferritic Steel Seamless Tube For Heat Exchanger
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

UNS S41000 Ferritic Steel Seamless Tube

,

Heat Exchanger Ferritic Steel Seamless Tube

,

ASTM A268 Ferritic Steel Seamless Tube
Leave a Message
Product Description

ASTM A268 TP410 (1.4006 UNS S41000) Ferritic Steel Seamless Tube for Heat Exchanger​



ASTM A268 /ASME SA268 TP410 tubes are primarily composed of the following elements:
1. Chromium (Cr): 11.5% to 13.5%
2. Carbon (C): Maximum 0.15%
3. Nickel (Ni): Maximum 0.75%
4. Manganese (Mn): Maximum 1.0%
5. Silicon (Si): Maximum 1.0%
6. Phosphorus (P): Maximum 0.04%
7. Sulfur (S): Maximum 0.03%
ASTM A268 /ASME SA268 TP410 tubes Mechanical Properties:
The mechanical properties of SA-268 TP410 tubes are typically as follows:
- Tensile Strength: 485 MPa (70,300 psi) minimum
- Yield Strength: 275 MPa (40,000 psi) minimum
- Elongation: 20% minimum
- Hardness: Rockwell B hardness of 95 maximum



ASTM A268 Stainless Steel Tubing Sizes Tolerance
Outside Diameter, In.[Mm] OD Tolerance, In.[Mm] Wall Thickness, % Thin Wall Tubes
Up To1⁄2, [12.7], Excl ±0.005 [0.13] ±15
1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> ±0.005 [0.13] ±10 Less Than 0.065 In. [1.6 Mm] Nominal
11⁄2 To 31⁄2 [38.1 To 88.9], Excl ±0.010 [0.25] ±10 Less Than 0.095 In. [2.4 Mm] Nominal
31⁄2 To 51⁄2 [88.9 To 139.7], Excl ±0.015 [0.38] ±10 Less Than 0.150 In. [3.8 Mm] Nominal
51⁄2 To 8 [139.7 To 203.2], Incl ±0.030 [0.76] ±10 Less Than 0.150 In. [3.8 Mm] Nominal





Final Finishing:

Solution Annealed & Pickled



Application:

  • Shell and tube heat exchangers
  • Condensers
  • Boilers
  • Process heaters
  • Heat Exchangers
  • Refinery equipment
  • Petrochemical plants
  • Power generation facilities
  • Others
