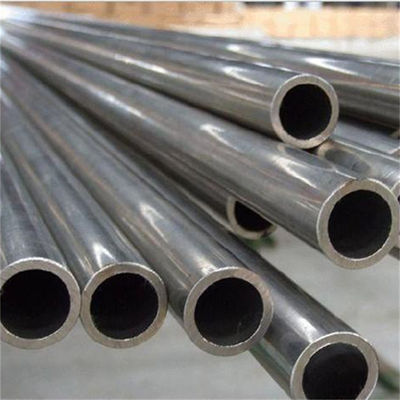

Austenitic ASTM A213 TP316L 1.4404 Seamless Heat Exchanger Tube

  • Austenitic ASTM A213 TP316L 1.4404 Seamless Heat Exchanger Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

1.4404 Seamless Heat Exchanger Tube

,

ASTM A213 TP316L Heat Exchanger Tube

,

ASTM A213 Seamless Heat Exchanger Tube
Leave a Message
Product Description

Austenitic ASTM A213 TP316L 1.4404 Seamless Heat Exchanger Tube





What is SS 316L tube?


The austenitic stainless steel used to make stainless steel 316L pipe/tube has a lower carbon content than the 316 grade and is composed of chromium, nickel, and molybdenum. It is simpler to use the pipes for welding applications because they contain little carbon.





316L Stainless Steel Features


316L Stainless Steel grade is molybdenum-bearing austenitic stainless steel, 316L is more resistant to general corrosion and pitting corrosion, crevice corrosion than the conventional chromium-nickel austenitic stainless steel such as 304.

316L Stainless Steel also offer higher creep, stress-to-rupture, and tensile strength at elevated temperature. The recommended temperature range includes -425°F to 1,200°F (-255°C to 605°C).

In addition to excellent corrosion resistance and strength properties, the Alloys 316 and 316L Cr-Ni-Mo alloys also provide excellent fabricability and formability which are typical of the austenitic stainless steel, 316L is often used in marine atmosphere.



We convey quality goods which incorporate SS 316L Pipes and Tubes. These 316L Pipes & Tubes are low carbon, molybdenum containing variations of 316. Our Stainless Steel Grade 316L Pipes & Tubes are known for their especially high imperviousness to pitting and crevice corrosion in chloride conditions.



The chemical composition of 316L:



Grade 316L
Ni 10 - 14
N 0.10 max
Cr 16 – 18
C 0.08 max
Si 0.75 max
Mn 2 max
P 0.045 max
S 0.030 max
Mo 2.00 - 3.00



Equivalent for 316L:



Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316L S31603 S31603 - 1.4404 X5CrNiMo17-12-2 2348 SUS 316L



Mechanical Properties:



Grade 316L
Tensile Strength (MPa) min 485
Yield Strength 0.2% Proof (MPa) min 170
Elongation (% in 50mm) min 40
Rockwell B (HR B) max 95
Brinell (HB) max 217



Physical properties:



Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740



Applications:



-Oil & Gas
-Chemical
-Petrochemical
-Power
-Construction
-Fertilizers
-Automotive
-Food Industry
