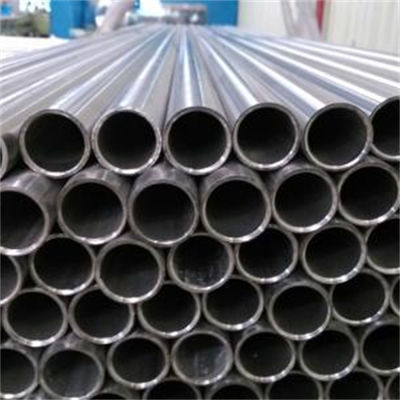

ASTM A213 / ASME SA213 Heat Exchanger / Boiler Tube Stainless Steel / High Temperature Alloy Steel Seamless Tube

  • ASTM A213 / ASME SA213 Heat Exchanger / Boiler Tube Stainless Steel / High Temperature Alloy Steel Seamless Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number stainless steel plate
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details as required
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Price Terms FOB,CIF,CFR,EXW
Application Oil, Petroleum/Power Material 304 ,304L 310 321 316 316L
Highlight

ASTM Stainless Steel Plate

,

ASTM Stainless Steel Metal Sheet

,

Stainless Steel Plate ISO9001
Leave a Message
Product Description

ASTM A213 / ASME SA213 TP304 / TP304L / TP316 / TP316L Stainless Steel Seamless Tube 3/4" 18 BWG 6M, Heat Exchanger







Material Grade:













American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Nickel Alloy:

UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400

Others:TP405,TP409, TP410, TP430, TP439,...





Europen Standard



1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501





GOST



08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ







Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter 　 BWG
25 22 20 18 16 14 12 10
　 Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch 　 Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212 　 　 　
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429 　 　
12.7 1/2 　 0.214 0.263 0.356 0.457 0.612 0.754 　
15.88 5/8 　 0.271 0.334 0.455 0.588 0.796 0.995 　
19.05 3/4 　 0.327 0.405 0.553 0.729 0.895 1.236 　
25.4 1 　 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 　 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 　 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 　 　 　 1.342 1.774 2.244 2.894 3.5
50.8 2 　 　 　 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 　 　 　 1.949 2.554 3.244 4.214 5.13
76.2 3 　 　 　 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 　 　 　 2.729 3.609 4.584 5.974 7.27
101.6 4 　 　 　 　 4.134 5.254 6.854 8.35
114.3 4 1/2 　 　 　 　 4.654 5.924 7.734 9.43
Form of Tube: Straight & U-bend & Finned & Coiled           　
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213 　 　 　



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •



ASTM A213 / ASME SA213 Heat Exchanger / Boiler Tube Stainless Steel / High Temperature Alloy Steel Seamless Tube 0
