ASTM A213 TP304, TP304L , TP316L , TP321 , TP310S, TP347H , TP317L ,16 BWG 20FT Heat Exchanger Tube

  • ASTM A213 TP304, TP304L , TP316L , TP321 , TP310S, TP347H , TP317L ,16 BWG 20FT Heat Exchanger Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number stainless steel plate
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details as required
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Price Terms FOB,CIF,CFR,EXW
Application Oil, Petroleum/Power Material 304 ,304L 310 321 316 316L
Highlight

2m Stainless Steel Plate

,

2m polished stainless steel sheet

,

Hot Rolled Stainless Steel Plate
Leave a Message
Product Description

Stainless Steel Seamless Tube, ASTM A213 / ASME SA213 TP310S / TP310H , 3/4" 16 BWG 20FT, 100% ET & HT







ube Sizes for Heat Exchangers & Condensers & Boiler
　 　 　 　 　 　 　 　 　 　
Outside Diameter 　 BWG
25 22 20 18 16 14 12 10
　 Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch 　 Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212 　 　 　
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429 　 　
12.7 1/2 　 0.214 0.263 0.356 0.457 0.612 0.754 　
15.88 5/8 　 0.271 0.334 0.455 0.588 0.796 0.995 　
19.05 3/4 　 0.327 0.405 0.553 0.729 0.895 1.236 　
25.4 1 　 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 　 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 　 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 　 　 　 1.342 1.774 2.244 2.894 3.5
50.8 2 　 　 　 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 　 　 　 1.949 2.554 3.244 4.214 5.13
76.2 3 　 　 　 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 　 　 　 2.729 3.609 4.584 5.974 7.27
101.6 4 　 　 　 　 4.134 5.254 6.854 8.35
114.3 4 1/2 　 　 　 　 4.654 5.924 7.734 9.43
Form of Tube: Straight & U-bend & Finned & Coiled 　 　 　 　 　 　 　 　 　
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. 　 　 　 　 　 　 　 　 　
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213 　 　 　 　 　 　 　 　 　


Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-

Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.



ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater



Heat-Exchanger, and Condenser Tubes.



Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...





Product Item Stainless Steel Heat Exchanger Tube
Grade TP 304/304L, TP316/316L,TP 321/321H,TP317L, TP310S, TP310H, TP309S, TP314, TP329, TP347H etc
O.D. 6.35-101.6mm(1/4''-4'')
W.T. 0.71-14mm(0.028''-0.55'')
Size OD ( 6.35-101.6mm ) * WT ( 0.71-14mm ) * MAX. 32M
Standard ASTM A269, ASTM A312, ASTM A213 etc
Quality MTC will be supplied with shipment, Third Party Inspection is acceptable
Application

Petroleum, chemical enterprise, super heater of boiler and heat exchanger

High temperature-resistant transmission fluid pipe in power station

Ship with pressure pipe

Exhaust purification device

Construction and ornament etc
Advantage Advanced technology of cold draw machine; Advanced annealing machine; better mechanical property; more precise dimension; perfect inspection method and inspection equipment etc
Process Method Cold Drawn/ Cold Rolled etc
Surface Finish Annealed, Pickled etc
Package
  1. Woven bags/Bundles
  2. In plywood cases
  3. Iron cases
Delivery Time 10-60 Days after receiving the deposit (Normally according to the order quantity)
Main Market Europe, Middle East, Southeast Asia, South America. etc
Certificate ABS, DNV-GL, BV, KR, LR, CCS, PED, TUV ,ISO9001, ISO 14001, ISO 18001

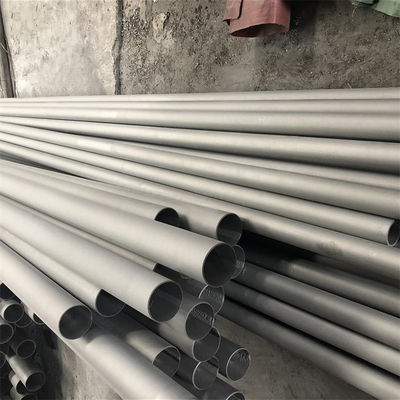

ASTM A213 TP304, TP304L , TP316L , TP321 , TP310S, TP347H , TP317L ,16 BWG 20FT Heat Exchanger Tube 0
