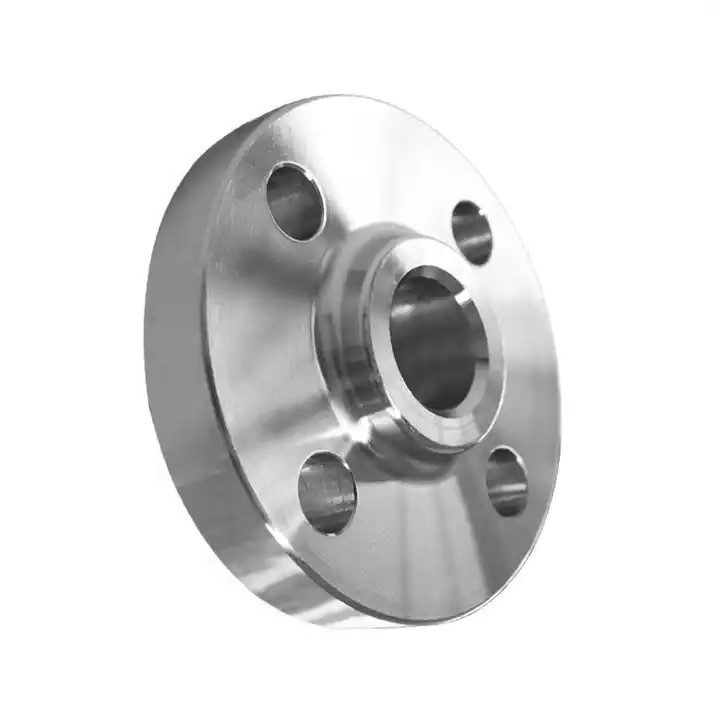

Forged Slip On Flat Face Flange
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shangle |
| Certification | ISO9001 PED |
| Model Number | 304/304L,0Cr19Ni10,EN1.4306 ect |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | as required |
| Delivery Time | 5-7days |
| Payment Terms | L/C, T/T |
| Supply Ability | 9999 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | F304L | Type | Slip On |
|---|---|---|---|
| Standard | Ansi Asme | Other | Lap Joint Flange |
| Application | Natural Gas, Chemical, Power And Metallurgy | Size | 1/2"-24" |
| Manufacturing Way | Forging;Casting | Packing | Wooden Box |
| Highlight | Forged Slip On Flat Face Flange,Forged ASTM A182 Flange,F316L Slip On Flat Face Flange |
||
Product Description
DIN2573, ASTM A182 F316 F316L Stainless Steel Forged Slip On Flat Face Flanges B16.5
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description:
DIN2573, ASTM A182 F316 F316L Stainless Steel Forged Slip On Flat Face Flanges B16.5
Slip On flange is also called SO Flange. Stainless Steel Slip On FF Flange is essentially a ring which is placed over the pipe end, with the flange face extending from end of pipe by some distance to apply a weld bead on the inside diameter. The Out Diameter of SOFF Flange is also welded on the back side of the pipe flanges. These Pipe Flanges slip over the pipe. They’re manufactured with an inside diameter which is slightly bigger than the pipe’s O.D. These attachments are connected to the pipe via fillet weld at the top and bottom of the flange. Our Group is professional in manufacturing DIN2573 SS316 / 316L or ASTM A182 F316 /F316L Stainless Steel Slip On Flat Face Flanges with excellent quality.
Mechanical Properties:
|
Grade |
Density |
Tensile Strength |
Yield Strength (0.2%Offset) |
Melting Point |
Elongation |
|
SS 316 |
8000 Kg/m3 |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
1400 °C (2550 °F) |
35 % |
|
SS 316L |
8000 Kg/m3 |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
1399 °C (2550 °F) |
35 % |
Specifications:
|
Type |
Slip On Flange |
|
Size |
1/2” to 48” |
|
Class |
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
|
Dimensions |
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA,etc. |
|
Standard |
ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820 |
|
BS |
BS4504 , BS4504, BS1560, BS10 |
|
DIN |
DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
|
Surface Treatment |
Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
|
Form |
SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc |
|
Face Type |
Flat Face (FF), Raise Face (RF), Ring Joint (RJT) |
|
Connection Type |
Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove |
|
Applications |
Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, etc. |
Equivalent Grades:
|
STANDARD |
UNS |
WERKSTOFF NR. |
JIS |
BS |
GOST |
EN |
AFNOR |
|
F316 |
S31600 |
1.4401 / 1.4436 |
SUS 316 |
316S31 / 316S33 |
– |
X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Z7CND17‐11‐02 |
|
F316L |
S31603 |
1.4404 / 1.4435 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
Equivalent Grades:
|
STANDARD |
UNS |
WERKSTOFF NR. |
JIS |
BS |
GOST |
EN |
AFNOR |
|
F316 |
S31600 |
1.4401 / 1.4436 |
SUS 316 |
316S31 / 316S33 |
– |
X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Z7CND17‐11‐02 |
|
F316L |
S31603 |
1.4404 / 1.4435 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
Applications:
- Refineries
- Food Processing & Dairy
- Oil and Gas Industry
- Off-Shore Oil Drilling Companies
- Pharmaceutical Equipment
- Pulp & Paper Industry
- Power Generation
- Specialty Chemicals
- Sea Water Equipment
- Gas Processing
- Chemical Equipment
- Heat Exchangers
- Petrochemicals
- Pharmaceuticals
- Condensers
