Forged Stainless Steel Pipe Flange , F60 1.4462 S32205 SWRF 6 Inch Weld Neck Flange

  • Forged Stainless Steel Pipe Flange , F60 1.4462 S32205 SWRF 6 Inch Weld Neck Flange
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001 PED
Model Number 304/304L,0Cr19Ni10,EN1.4306 ect
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details as required
Delivery Time 5-7days
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material F304L Type Slip On
Standard Ansi Asme Other Lap Joint Flange
Application Natural Gas, Chemical, Power And Metallurgy Size 1/2"-24"
Manufacturing Way Forging;Casting Packing Wooden Box
Highlight

Forged Stainless Steel Pipe Flange

,

Forged 6 Inch Weld Neck Flange

,

SWRF 6 Inch Weld Neck Flange
Leave a Message
Product Description

ASTM A182 F60 1.4462 S32205 Duplex Steel SWRF Forged Flange B16.5

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.





F60 Equivalent:

STANDARD WERKSTOFF NR. UNS
Duplex F60 1.4462 S32205



F60 Chemical Composition:

N P C Si Ni Mo Mn Cr Fe S
0.003 0.002 1.00 2.00 Bal 22.00 to 23.00 3.00 to 3.05 4.05 to 6.05 0.003 0.014 to 0.02





Mechanical Properties of F60 Flange:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.8 g/m³ 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %


ASTM A182 Grade F60 Duplex Flanges Weight Chart:



Normal Pipe Sizes

Dimensions Of Flanges

Weight In Kilogram

Normal Pipe Size
(Inch)

DN (Millimeter)

Flanges
Millimeter

Flanges
Thickness

Slip-on
Socket Weld (KG)

Weld Neck (KG)

Blind (KG)
1/2 15 88.9 11.2 0.4 0.5 0.4
3/4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/4 32 117.3 15.7 1 1.3 1.2
1 1/2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0



Applications:

  • Chemical processing
  • Desalination plants
  • Oil and gas exploration and production
  • Geothermal wells
  • Seawater and other chloride-containing environments
  • Salt evaporation
  • Pulp and paper production
  • Oil and Gas - refining, petrochemical and gas processing application
  • Seawater cooling

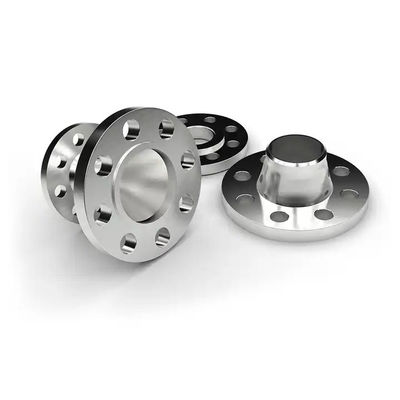

Detail Images:Forged Stainless Steel Pipe Flange , F60 1.4462 S32205 SWRF 6 Inch Weld Neck Flange 0
Forged Stainless Steel Pipe Flange , F60 1.4462 S32205 SWRF 6 Inch Weld Neck Flange 1
