F304L Stainless Steel Flange ASTM A182 F310 UNS S31000 Weld Neck RTJ

  • F304L Stainless Steel Flange ASTM A182 F310 UNS S31000 Weld Neck RTJ
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001 PED
Model Number 304/304L,0Cr19Ni10,EN1.4306 ect
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details as required
Delivery Time 5-7days
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material F304L Type Slip On
Standard Ansi Asme Other Lap Joint Flange
Application Natural Gas, Chemical, Power And Metallurgy Size 1/2"-24"
Manufacturing Way Forging;Casting Packing Wooden Box
Highlight

F304L Stainless Steel Flange

,

RTJ ASTM A182 Flange

,

RTJ Stainless Steel Flange
Leave a Message
Product Description

Stainless Steel Flanges ASTM A182 F310(UNS S31000) Weld Neck RTJ Flange

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description:

Stainless Steel 310 is the combination of nickel and chromium giving them resistant to general corrosion. Due to the content of nickel in the alloy, These flanges have good strength at the most extreme weather conditions and also have excellent resistance to the creep deformation. ASTM A182 F310 Stainless Steel Flange combines excellent high temperature properties with good ductility and weldability. It is designed for high temperature service. ASTM A182 F310 Flanges is widely used for applications in the industrial, architectural, and transportation fields.

Chemical Composition:
Ni 19– 21
Cr 24 – 26
C 0.015 max
Mn 2 max
P 0.02 max
S 0.015 max
Si 0.15 max
Mo 0.1 max
Fe 54.7 min



Mechanical Properties:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7900 kg/m3 1402 °C (2555 °F) 75000Psi, 515Mpa 30000Psi, 205Mpa 40 %



Equivalent Grades:

STANDARD UNS JIS GOST WERKSTOFF NR. BS EN
SS310 S31000 SUS 310 20Ch25N20S2 1.4841 310S24 X15CrNi25-20



Specifications ASTM A182 / ASME SA182
Flange size range 1/2” to 48”
Flanges Dimensions ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Flanges Standard ANSI, AWWA, ASME, BS 10 Table D Flanges, Table E Flanges, BS, DIN, EN, GOST.
Class 150#, 300#, 600#, 900#, 1500#, 2500#
Flange Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), Small Tongue, Large Tongue & Groove
Specialized manufacturer of Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges

Applications:

  • Boiler & Heat Exchanger
  • Petrochemical Industry
  • Chemical Industry
  • Nuclear Power Plant
  • Oil and Gas Plant
  • Pulp & Paper Industry
  • Ship Building Equipments
  • Paper and Pulp Plants

Detail Images:

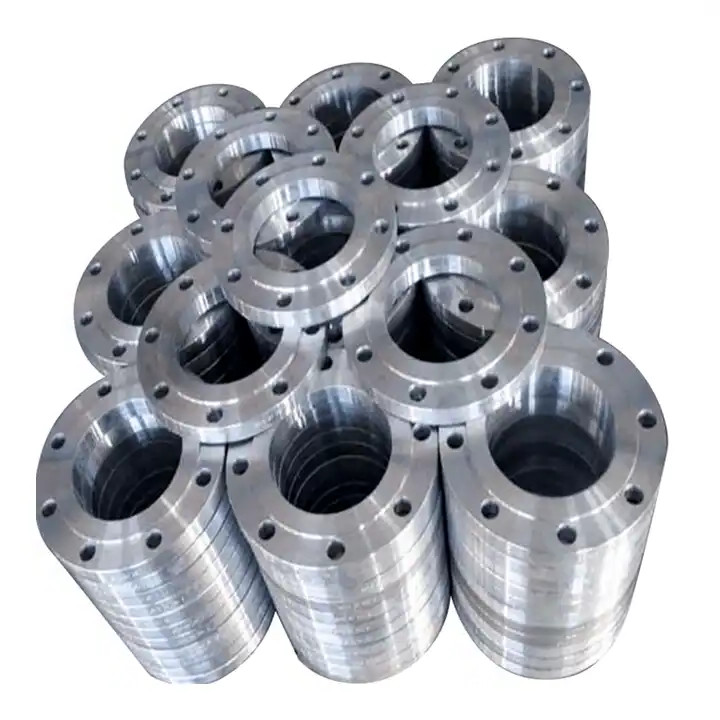

F304L Stainless Steel Flange ASTM A182 F310 UNS S31000 Weld Neck RTJ 0
