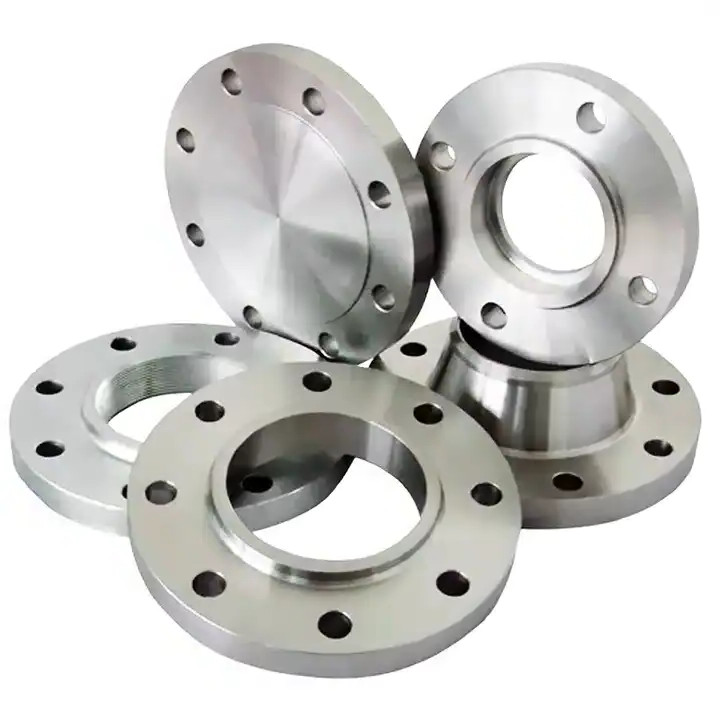

Austenitic Stainless Steel Flange

B16.5 ASTM A182 F304 304L Slip On Flange Austenitic Stainless Steel Flanges

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description:

ASTM A182 is a standard specification for forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves. It includes various material grades, such as stainless steels (e.g., F304, F316), alloy steels (e.g., F11, F22), and other grades suitable for high-temperature service.

The specification covers various types of flanges, including weld neck, slip-on, socket weld, threaded, lap joint, and blind flanges.

Equivalent Grades

304-304L Stainless Steel:

• Grade 304 stainless steel is an austenitic stainless steel and is one of the most widely used stainless steel alloys.
• Grade 304L is a low-carbon version of 304, which helps minimize the risk of sensitization during welding.
• These grades are known for their corrosion resistance, versatility, and ease of fabrication, and they are commonly used in industries such as food and beverage, pharmaceuticals, and architectural applications.

Flanges Grades

Stainless Steel Flange: F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F317L, F347, F347H, F904L etc

Duplex Steel Flange: UNS S31803, 2205, S31254 (254SMO)

Super Duplex Steel Flange : UNS S32750, UNS S32760, UNS S32304, S31500

Carbon Steel Flange: ASTM A105, A105N etc.

Alloy Steel Flange: F1, F11, F22, F5, F9, F91 etc.

Nickel Alloy Flange as below

Monel 400 & K500,

Inconel 600, 601, 617, 625, 690, 718, X-750.

Incolloy 800, 800H, 800HT, 825, 925.

Hastelloy C22, C4, C276, S, C2000, G-30, G-35, X, N, B, B-2, B-3.

Copper Alloys Flanges: Copper, Brass & Gunmetal

Various Kinds of Flanges we can supply as below

1. Slip-on Flanges.

Slip-on Flanges have a lower initial cost than welding neck flanges because they require less accuracy in cutting pipe to length, and they provide a greater ease of alignment in assembly. However, their calculated strength under internal pressure is approximately 2/3's the strength of welding neck flanges, and their life under fatigue is 1/3 shorter. Slip-on Flanges are limited to 1/2" to 2½" sizes in 1500lbs standard.

2. Threaded Flanges

Threaded Flanges are used for special applications. They can be assembled without welding and can be used in extremely high pressure services--at or near atmospheric pressure--where alloy steel is essential for strength. Threaded flanges are not suited for conditions involving temperature or bending stresses, or under cyclic conditions where leakage through the threads may occur.

3. Weld Neck Flanges

Weld Neck Flanges have a long tapered hub and gradual transition of thickness in the region of the butt weld joining them to the pipe. The tapered hub provides important reinforcement to the flange and resistance to dishing. This type of flange is preferred for severe service conditions resulting from high pressure, sub-zero or high temperatures.

4. Blind Flanges

Blind Flanges are used to blank off the ends of piping, valves and pressure vessel openings. Blind Flanges can handle high stress from internal pressure and bolt loading since the maximum stresses in the blind flange are bending stresses at the center.

5. Socket Weld Flanges

Socket Weld Flanges were developed for use on small size high pressure piping. With an internal weld, socket weld flanges are stronger and have greater fatigue strength than double welding a slip-on flange. Smooth bore conditions can be easily attained by grinding the internal weld. This flange is commonly used in chemical process piping.

6. Lap Joint Flanges

Lap Joint Flanges are used with lap joint stubs. Lap joint flanges are commonly used in carbon or low alloy steel piping systems that need to be frequently dismantled for inspection and cleaning. They should not be used at any points where severe bending stresses occur.

Flanges Size Range & Pressure Class & Flange Facing

Flanges Size Range : 1/8" NB to 48"NB.

Flanges Class : 150#, 300#, 400 #, 600#, 900#, 1500# & 2500#.

Flanges Facings : FF,RF,M,F,T,G,RJ,MF,TG

Applications of pipe flanges
Pipe flanges are widely used in pipe fittings of various industrial, commercial and residential applications. Pipe flanges can be customized to suit your application with various machining details. These pipe flanges have been used extensively in:

UHV applications

• Hydraulic control systems for turbine generators
• High pressure ground support missile systems
• Nuclear and conventional power plant applications etc.
