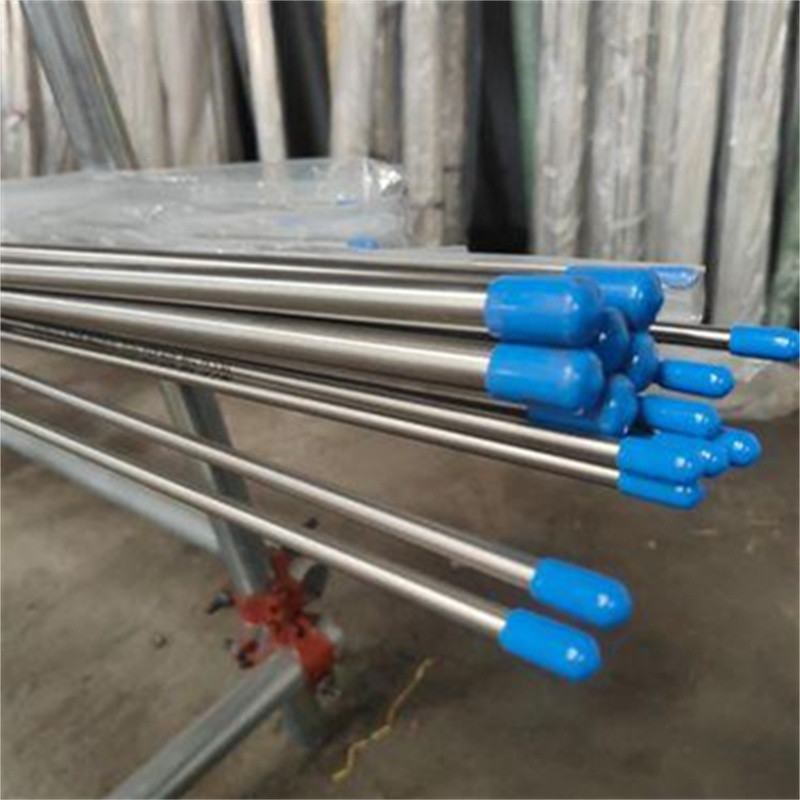

Bright Annealed Stainless Steel Tube, ASTM A269 TP321 TP347H
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shangle |
| Certification | PED,IS09001 |
| Model Number | 12.7 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Woven Packing |
| Delivery Time | 30DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 500TONS/30DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 ,304L 310 321 316 316L | Standard | AISI, ASTM, DIN, EN, GB |
|---|---|---|---|
| Shape | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 | Technique | Cold Draw |
| Application | Oil, Petroleum/Power | Package | Woven Packing |
| Highlight | TP321 Bright Annealed Stainless Steel Tube,TP347H Bright Annealed Stainless Steel Tube |
||
Product Description
Bright Annealed stainless steel tube, ASTM A269, ASME SA269 -2015 TP310, 310S, TP316Ti ,TP347, 904L, TP347H, 254Mo
0Cr18Ni12Mo2Ti, TP 316Ti=UNS S31635=1.4571, This is one of the family of 17%Cr12-13%Ni steels containing Mo of 2,0-2,4% stabilized with Ti which minimizes chromium carbide precipitation and improves resistance to intergranular corrosion. In the damp industrial or coastal atmospheres of Europe, they perform better than TP 304/304L and ferritic grades. In low temperature seawater they offer limited resistance to pitting but are susceptible to crevice attack. Their short- and long-time properties at elevated temperatures are also superior to those of comparable TP 304/304L grades.
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A269 / A269M:Standard Specification for Welded Austenitic Steel Boiler, Superheater
Heat-Exchanger, and Condenser Tubes.
Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463...
Material Grade:
| American Standard | Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| GOST | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Heat Exchanger Tube | 6.00mm to 101.6mm | 0.5mm to 8mm |
Final Finishing
Solution Annealed & Pickled/Bright Annealed.
Type of Tubes:
U-bend & Straight.
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
