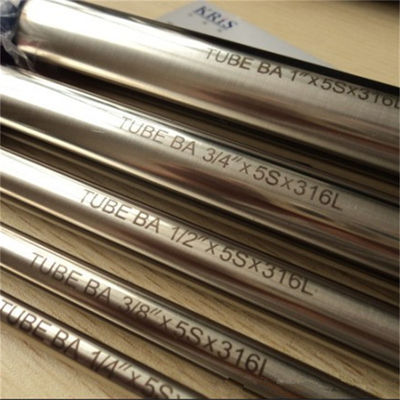

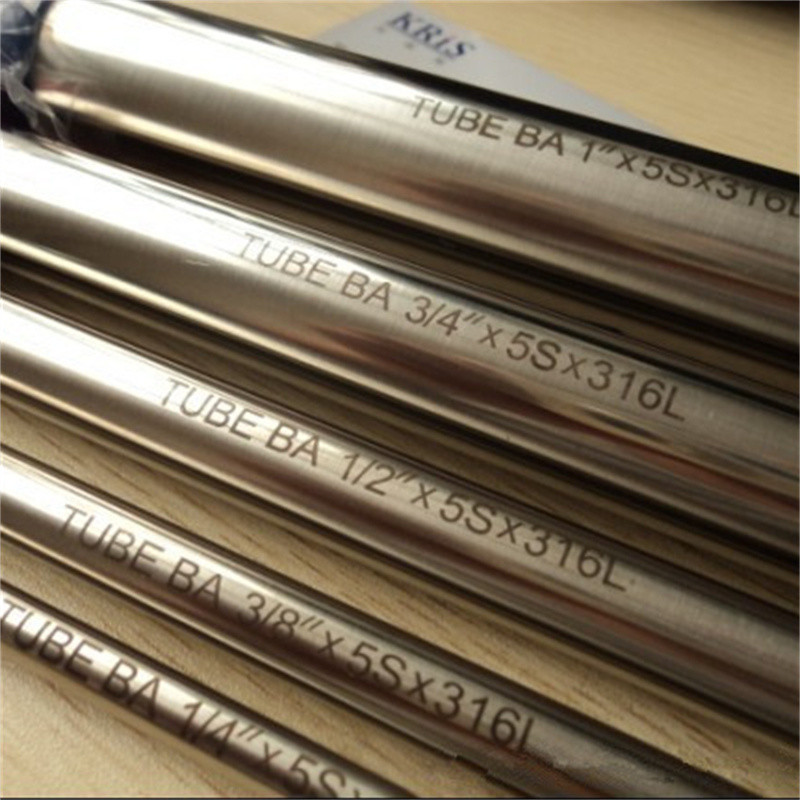

ASTM A269 TP316L Bright Annealed 320 Polished Stainless Steel Seamless Tube

  • ASTM A269 TP316L Bright Annealed 320 Polished Stainless Steel Seamless Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

320 Polished Stainless Steel Seamless Tube

,

Bright Annealed Stainless Steel Seamless Tube

,

ASTM A269 Stainless Steel Seamless Tube
Leave a Message
Product Description

ASTM A269 TP316L Bright Annealed 320 Polished Stainless Steel Seamless Tube

ASTM A269 Tp316 pipe is used in high temperature services with high pressure, such as hydraulic systems. Other specifications of ASTM A269 pipe are available in the textile, chemical and marine industries. For chloride-rich environments and most oxidizers, ASTM A269 has high tolerances. Therefore, ASTM A269 seamless stainless steel pipe is ideal for the chemical and marine industries. In addition, ASTM A269 seamless pipe has good corrosion resistance for general service. ASTM A269 SS pipe is widely used in these industries due to its accuracy in size, strength and corrosion resistance.



ASTM A269 seamless stainless steel tubing for low and high temperature service. These pipes can be made from austenitic steel using resistance welding, electrofusion welding or seamless cold drawn mechanisms. SA269 tubing is also available in different finishes and can be heat treated. SA 269 Tp 316 is more corrosion resistant than 304 material type and can be used in high pressure and high temperature as well as low pressure and low temperature applications. Therefore, SA 269 Tp 304 and ASTM A269 Tp316l material grade pipes have different schedules. These schedules correspond to different wall thicknesses corresponding to different nominal diameters.

ASTM A269 Seamless Stainless Steel Tubing Specification

Check Tolerances and Pressure Rating of ASTM A269 GRADE TP316L Stainless Steel U Tube

Shapes Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils
Manufacturing Type Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Delivery Condition Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF
Surface Finish BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish Tubing or Custom Finish as per customer's specification
Thickness Range SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Standard SUS, JIS, AISI, ASTM, GB, DIN, EN
Relevant Standard ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296
Value Added Services
  • Cutting
  • Beveling
  • Threading
  • Polishing (Electro & Commercial)
  • Draw & Expansion as per required Size & Length
  • Destructive and Non Destructive
  • Ultrasonic Testing
  • Annealed & Pickled Bending
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
END Plain End, Beveled End, Treaded
Processing Service Bending, Welding, Decoiling, Punching, Cutting, Moulding
Technique Cold drawn, Cold rolled, Hot rolled, Extrusion Tube
Test Certificate
  • DFARS compliant
  • EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
  • 100% Radiography Test Report
  • Raw Materials Certificate
  • Third Party Inspection Report
  • Fumigation Certificates
  • Heat Treatment Charts
  • HS Code Commercial Invoice
  • Form A for Generalized System of Preferences (GSP)
  • Manufacturer Test Certificate
  • Moisture testing
  • Surface roughness measurement
  • Laboratory Test Certificate from Govt. Approved Lab
Packing Ends Capped, Sleeved, Wooden Boxed
Port Mumbai, India
Uses & Application
  • Common industrial services (Petroleum, chemical, paper, fertilizer, fabric, aviation and nuclear)
  • Fluid, gas and oil industry
  • Heat transmission and pressure service
  • Construction and ornamental
  • Boilers and Heat exchangers
  • Decoration purpose, boiler, auto parts, medical device, food industry, building materials)

ASME SA269 Tubes Mechanical Properties

SS GRADE HEAT TREATMENT TEMPERURE F (C) MINIMUM HARDNESS
BRINELL ROCKWELL
TP304 Solution 1900 (1040) 192HBW/ 200HV 90HRB
TP304L Solution 1900 (1040) 192HBW/ 200HV 90HRB
TP316 Solution 1900(1040) 192HBW/ 200HV 90HRB
TP316L Solution 1900(1040) 192HBW/ 200HV 90HRB
TP321 Solution 1900(1040) F 192HBW/ 200HV 90HRB
TP347 Solution 1900(1040) 192HBW/ 200HV 90HRB

ASTM A269 Standard Tubing Chemical Composition

SS GRADE ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM
C MN P S SI CR NI MO N B NB TI
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 --- --- --- ---
TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 --- --- --- ---
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 --- --- ---
TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 --- --- ---
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 --- --- --- 5C -0.70
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0     10C -1.10 ---

SA269 tubing Tolerance

OD, INCH OD TOLERANCE INCH(MM) WT TOLERANCE % LENGTH TOLERNACE INCH(MM)
+ -
≤1 /2 ± 0.005 ( 0.13 ) ±15 1 /8 ( 3.2 ) 0
> 1 /2~1 1 /2 ±0.005(0.13) ±10 1 /8(3.2) 0
> 1 1 /2~< 3 1 /2 ± 0.010(0.25) ±10 3 /16(4.8) 0
> 3 1 /2~< 5 1 /2 ± 0.015(0.38) ±10 3 /16(4.8) 0
> 5 1 /2~< 8 ± 0.030(0.76) ±10 3 /16(4.8) 0
8~< 12 ± 0.040(1.01) ±10 3 /16(4.8) 0
12~< 14 ± 0.050(1.26) ±10 3 /16(4.8) 0



ASTM A269 TP316L Bright Annealed 320 Polished Stainless Steel Seamless Tube 0
