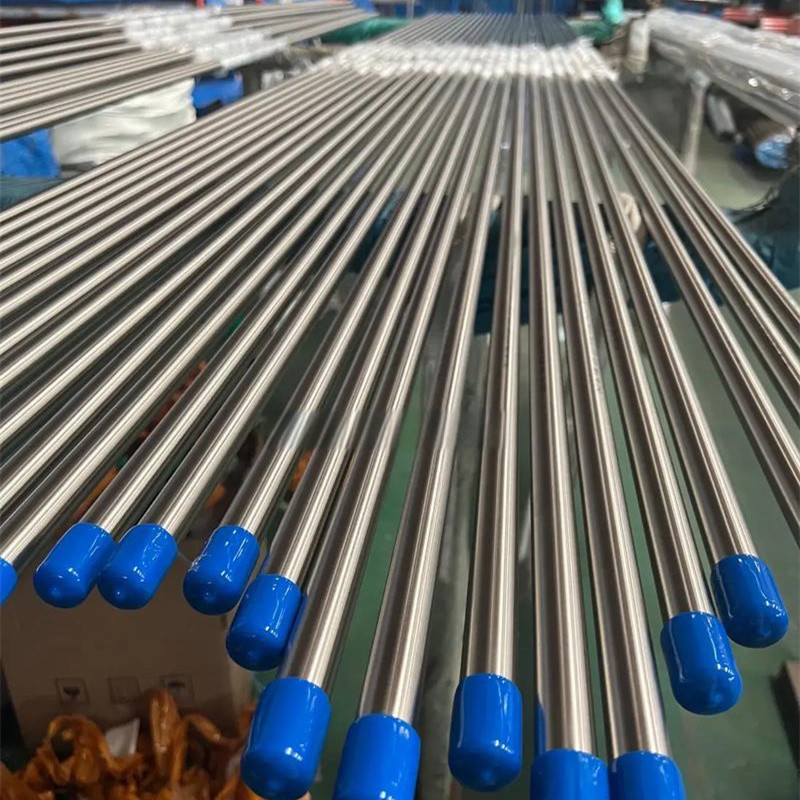

ASTM A269 TP304L Stainless Steel Seamless Tube, Bright Annealed, Heat Exchanger Application

  • ASTM A269 TP304L Stainless Steel Seamless Tube, Bright Annealed, Heat Exchanger Application
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

ASTM A269 Steel Seamless tube

,

Bright Annealed Steel Seamless tube

,

TP304L Stainless Steel Seamless Tube
Leave a Message
Product Description

ASTM A269 TP304L Stainless Steel Seamless Pipe Bright Annealed Boiler



ASTM A269 is a standard published by the American Society for Materials and Testing (ASTM) to regulate the manufacturing requirements and chemical composition of stainless steel seamless and welded pipes. The standard applies to pressure vessels operating at high and low temperatures, as well as pipes and equipment in industries such as food processing, pharmaceuticals and chemicals.



The ASTM A269 standard specifies the requirements for the physical properties, chemical composition, size, permissible deviations, mechanical properties and test methods of stainless steel materials. It is mainly suitable for seamless and welded stainless steel pipes, including 316 and 3161 and other common grades. The wall thickness of the pipe is between 0.5mm and 12.7mm, the outer diameter of the pipe is between 6mm and 101.6mm, and the length can be customized according to customer needs.



The ASTM A269 standard requires that stainless steel pipes must meet high quality manufacturing and material requirements while meeting strict quality control and inspection requirements. Each pipe must pass a number of tests and inspections such as corrosion resistance testing, appearance inspection, dimensional measurement and mechanical properties testing to ensure that its quality is qualified and can meet the requirements of various industries.When manufacturing and using stainless steel pipes, the ASTM A269 standard can help people ensure the stability and reliability of pipe quality. Therefore, it is widely used in various fields, such as food processing, medical, petrochemical, pharmaceutical and aviation industries.





ASME SA269 Tubes Mechanical Properties

SS GRADE HEAT TREATMENT TEMPERURE F (C) MINIMUM HARDNESS
BRINELL ROCKWELL
TP304 Solution 1900 (1040) 192HBW/ 200HV 90HRB
TP304L Solution 1900 (1040) 192HBW/ 200HV 90HRB
TP316 Solution 1900(1040) 192HBW/ 200HV 90HRB
TP316L Solution 1900(1040) 192HBW/ 200HV 90HRB
TP321 Solution 1900(1040) F 192HBW/ 200HV 90HRB
TP347 Solution 1900(1040) 192HBW/ 200HV 90HRB





ASTM A269 Standard Tubing Chemical Composition

SS GRADE ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM
C MN P S SI CR NI MO N B NB TI
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 --- --- --- ---
TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 --- --- --- ---
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 --- --- ---
TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 --- --- ---
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 --- --- --- 5C -0.70
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0     10C -1.10 ---





SA269 tubing Tolerance

OD, INCH OD TOLERANCE INCH(MM) WT TOLERANCE % LENGTH TOLERNACE INCH(MM)
+ -
≤1 /2 ± 0.005 ( 0.13 ) ±15 1 /8 ( 3.2 ) 0
> 1 /2~1 1 /2 ±0.005(0.13) ±10 1 /8(3.2) 0
> 1 1 /2~< 3 1 /2 ± 0.010(0.25) ±10 3 /16(4.8) 0
> 3 1 /2~< 5 1 /2 ± 0.015(0.38) ±10 3 /16(4.8) 0
> 5 1 /2~< 8 ± 0.030(0.76) ±10 3 /16(4.8) 0
8~< 12 ± 0.040(1.01) ±10 3 /16(4.8) 0
12~< 14 ± 0.050(1.26) ±10 3 /16(4.8) 0





Application

Chemical and petrochemical

Power generation

Renewable energy

Pulp and Paper

Process piping

Pharmaceutical

Food and beverage

Medical

Oil and gas

Water/waste

Marine Industry

or FertilizersASTM A269 TP304L Stainless Steel Seamless Tube, Bright Annealed, Heat Exchanger Application 0
