ASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube

  • ASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

TP304 Bright Annealed Tube

,

ASME SA269 Bright Annealed Tube

,

1.4301 Bright Annealed Tube
Leave a Message
Product Description

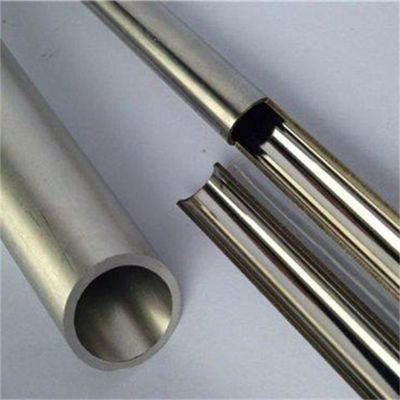

ASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube


Advantages:

The ASME SA269 TP304 Bright Annealed Tubes can perform well in caustic solutions where chloride and fluoride are absent. They also have excellent forming and welding characteristics and show a great performance in corrosive environments. The seamless tube can also withstand higher pressure.

The ASME SA269 TP304 is an austenitic grade of steel that covers standard seamless and welded configurations. The ASME SA269 TP304 Tube is designed with a superior composition of nickel and chromium with other constituting alloys, giving these tubes enhanced resistance against corrosive and oxidative media.

ASME SA269 TP304 Stainless Steel Tubing has a density of 8g/cm³ with a melting point of 1400 degrees C. These tubes has excellent mechanical properties and can work well in different pressures and temperatures.


Chemical Composition



Grade C Mn Si P S Cr Mo Ni N
TP304 min. – – – – – 18.0 – 8.0 –
max. 0.08 2.0 0.75 0.045 0.030 20.0   10.5 0.10



Tolerance Of ASTM A269 TP304 Tube


Size
Inches
Tolerances, Inches
OD,
Inches
Wall
Ovality
2 x Tol., In.
Cut Length
(b), In.
Less than 1/2
±0.005
±15%
——
+1/8
–0
Over 1/2 to 1-1/2
±0.005
±10%
–0.065
Over 1-1/2 to 3-1/2
±0.010
±10%
–0.095
+3/16
–0
Over 3-1/2 to 5-1/2
±0.015
±10%
–0.150
Over 5-1/2 to 8
±0.030
±10%
——



TP304 Mechanical Properties


Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
TP304 515 205 40 92 201


Physical Properties

Grade Density (kg/m3)
Elastic Modulus (GPa)
Mean Coefficient of Thermal Expansion (m/m/0C)
Thermal Conductivity (W/m.K)
Specific Heat 0-1000C (J/kg.K)
Electrical Resistivity (n.m)
0-1000C
0-3150C
0-5380C
at 1000C
at 5000C
304/L/H
8000
193
17.2
17.8
18.4
16.2
21.5
500
720


Equivalent Material For 304 Grade Stainless Steel

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304



Applications

-Food processing equipment, particularly in beer brewing, milk processing & wine making.
-Kitchen benches, sinks, troughs, equipment and appliances
-Architectural panelling, railings & trim
-Chemical containers, including for transport
-Heat Exchangers
-Woven or welded screens for mining, quarrying & water filtration
-Threaded fasteners
-SpringsASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube 0
