TP316L Stainless Steel Welded Pipe for Waste Water Treatment Plant

  • TP316L Stainless Steel Welded Pipe for Waste Water Treatment Plant
Place of Origin CHINA
Brand Name Shangle
Certification Stainless Steel Welded Pipe
Model Number welded tube
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Stainless Steel Welded Tube Usage Industry/Construction
Tolerance ±1% Technique Cold Rolled Or Hot Rolled
Price Term CIF CFR FOB EX-WORK Welding Line Type ERW
Highlight

TP316L Stainless Steel Welded Pipe

,

Waste Water Treatment SS Welded Pipe
Leave a Message
Product Description

TP316L Stainless Steel Welded Pipe for Waste Water Treatment Plant





Overview:



EN10217-7 is a European standard that specifies the technical delivery conditions for welded stainless steel tubes for pressure purposes. The standard covers a range of grades, including 1.4401 and 1.4404, which are commonly known as 316 and 316L stainless steel.



1.4401 and 1.4404 are austenitic stainless steels with high corrosion resistance and excellent mechanical properties. They are commonly used in applications where resistance to corrosion is critical, such as in the chemical, petrochemical, and food processing industries.



The welded pipes produced in accordance with EN10217-7 1.4401/1.4404 are typically used for conveying fluids under pressure. The pipes are manufactured using a variety of welding techniques, including TIG, plasma, and laser welding. The pipes are available in a range of sizes and wall thicknesses to suit different applications.



In addition to the technical delivery conditions, EN10217-7 also specifies the testing and inspection requirements for the welded pipes. This includes non-destructive testing, such as ultrasonic testing, and visual inspection to ensure the pipes meet the required quality standards.



Specification:

Specification EN10217-7
Grades TP316/316L; 1.4401/1.4404
Type Straight welded pipe
Outer Diameter 10.2mm to 1016mm or custom size
Wall Thickness 1.0mm to 14.2mm or custom thickness
Length 6 meters or custom cut lengths
Delivery Condition Solution Annealed & Pickled
Ends Plain End, Beveled End
Other Testing Product Analysis, Eddy Current Test, Hydrostatic Test, Radiographic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc.
Dimension All Pipes are Manufactured and Inspected / Tested to the Relevant standards
Packing Plywood case/Woven bag in bundle


Chemical Composition:

Grade UNS C Mn P S Si Cr Ni Mo N
TP316 S31600 0.08 max 2.00 max 0.045 max 0.03 max 1.00 max 16.0-18.0 10.0-14.0 2.00-3.00 /
TP316L S31603 0.035 max 2.00 max 0.045 max 0.03 max 1.00 max 16.0-18.0 10.0-14.0 2.00-3.00 /
1.4401 / 0.07 max 2.00 max 0.045 max 0.015 max 1.00 max 16.5-18.5 10.0-13.0 2.00-2.50 0.11 max
1.4404 / 0.03 max 2.00 max 0.045 max 0.015 max 1.00 max 16.5-18.5 10.0-13.0 2.00-2.50 0.11 max


Mechanical Properties:

Grade Tensile Strength, min, ksi (MPa) Yield Strength,
min, ksi (MPa)		 Elongation in 2 in.
or 50mm, min (%)
TP316 515 205 35
TP316L 485 170 35
1.4401 510-710 205 40
1.4404 490-690 190 40



Application:



1. Chemical Processing: The high corrosion resistance of EN10217-7 1.4401/1.4404 welded pipe makes it ideal for use in chemical processing plants where it is exposed to harsh chemicals and corrosive environments.



2. Food and Beverage Industry: The pipe is also used in the food and beverage industry due to its hygienic properties and resistance to corrosion, making it suitable for transporting food and beverages.



3. Oil and Gas Industry: EN10217-7 1.4401/1.4404 welded pipe is used in the oil and gas industry for transporting oil, gas, and other fluids. The pipe's high strength and corrosion resistance make it ideal for use in harsh environments.



4. Pharmaceutical Industry: The pipe is also used in the pharmaceutical industry due to its hygienic properties and resistance to corrosion, making it suitable for transporting pharmaceutical products.



5. Water Treatment: EN10217-7 1.4401/1.4404 welded pipe is used in water treatment plants due to its resistance to corrosion and its ability to withstand high pressure and temperature.

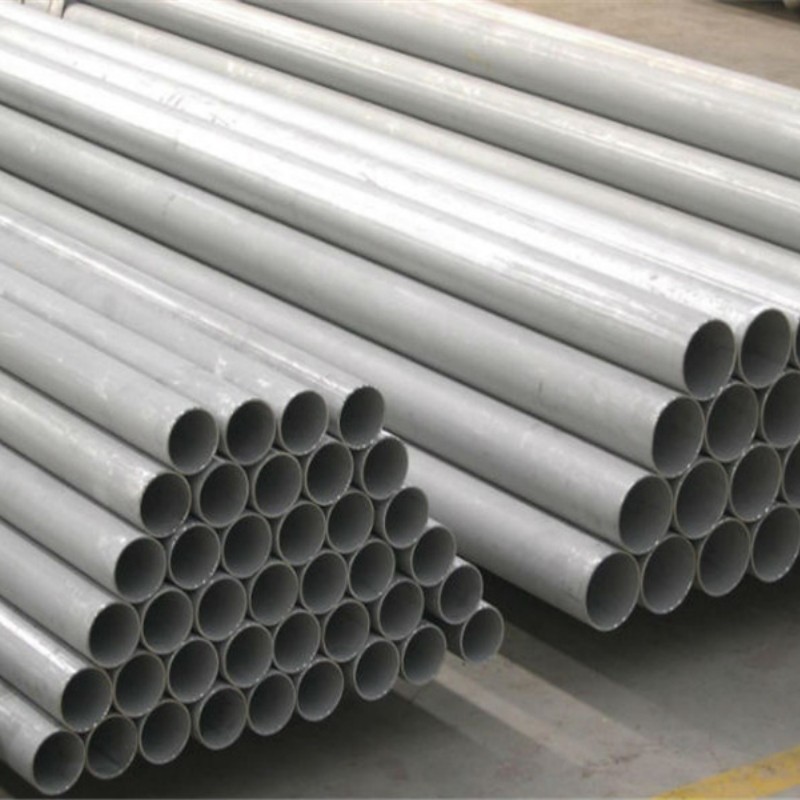

TP316L Stainless Steel Welded Pipe for Waste Water Treatment Plant 0
