Sanitary Stainless Steel Welded Pipe ASTM A270 ASME SA270 TP316L

  • Sanitary Stainless Steel Welded Pipe ASTM A270 ASME SA270 TP316L
Place of Origin CHINA
Brand Name Shangle
Certification Stainless Steel Welded Pipe
Model Number Welded Tube
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Stainless Steel Welded Tube Usage Industry/Construction
Tolerance ±1% Technique Cold Rolled Or Hot Rolled
Price Term CIF CFR FOB EX-WORK Welding Line Type ERW
Highlight

Sanitary Stainless Steel Welded Pipe

,

TP316L Sanitary Stainless Steel Pipe

,

Stainless Steel Welded Pipe
Leave a Message
Product Description

ASTM A270/ ASME SA270 TP316L Stainless Steel Sanitary Welded Pipe
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

ASTM A270 sanitary pipe is specifically designed for use in the food, dairy, beverage, and pharmaceutical industries where cleanliness and sanitation are of utmost importance. The pipe is also subjected to various tests such as hydrostatic testing, eddy current testing, and pneumatic testing to ensure that it meets the required standards. Additionally, the pipe is polished to a specified finish to eliminate any surface imperfections that could harbor bacteria or other contaminants.



ASTM A270 Sanitary Stainless Steel Pipe Specification

ASTM A270 sanitary stainless pipe usually refers to the small pipe diameters, normally from 1/2” to 2 1/2”, thickness from 0.049 in (1.24mm) to 0.15 in (3.81mm). Length can be fixed or random
The maximum outer diameter of ASTM A270 tubing is 12 inches (304.8 mm).
ASTM A270 tubing using inch-pound as the standard unit of measure.
Wall thickness tolerance shall not vary more than 12.5%.





Tolerance

a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
EndPE/Plain Ends, BE/Beveled Ends
Techniquecold drawn
Applicationchemical industry, decoration, building, Food plant, etc.
TestSquash test, extended test, water pressure test, crystal rot test, heat treatment, NDT





ASTM A270 TP316L Stainless Steel Welded Pipe Equivalent Grade

GRADEUNSWERKSTOFF NR.JISAFNORBSGOSTENSS
 USAGERMANJAPANRUSSIANBRITISHRUSSIANEUROPESWEDISH
TP 316LS316031.4404 / 1.4435SUS 316LZ3CND17‐11‐02 / Z3CND18‐14‐03316S11 / 316S1303Ch17N14M3 / 03Ch17N14M2X2CrNiMo17-12-2 / X2CrNiMo18-14-32348





ASTM A270 TP316L Stainless Steel Welded Pipe Chemical Composition

GRADESUNSCMnPSSiCrNiMoTiNbN
TP316LS316030.03520.0450.03116.0-18.010.0-14.02.0-3.0





ASTM A270 TP316L Stainless Steel Welded Pipe Mechanical Properties

MaterialHeatTemperure º F(º C)Tensile StrengthYield StrengthElongation %, Min
TreatmentMin.Ksi (MPa), Min.Ksi (MPa), Min.
TP316LSolution1900(1040)70(485)25(170)35





ASTM A270 TP316L Stainless Steel Welded Pipe Physical Properties

GradeDensity (kg/m3)Elastic Modulus (GPa)Mean Coefficient of Thermal Expansion (μm/m/°C)Thermal Conductivity (W/m.K)Specific Heat 0-100°C (J/kg.K)Electrical Resistivity (nΩ.m)
0-100°C0-315°C0-538°Cat 100°Cat 500°C
ASTM A270 TP316L800019317.217.818.416.221.5500720



Application
1. Industrial hydraulic
2. Automobile industry
3. Industrial machinery industry
4. Industrial automation
5. Rail transit
6. Heat exchange
7. Seamless pipe
8. Decoration works
9. Other

Detail Images:

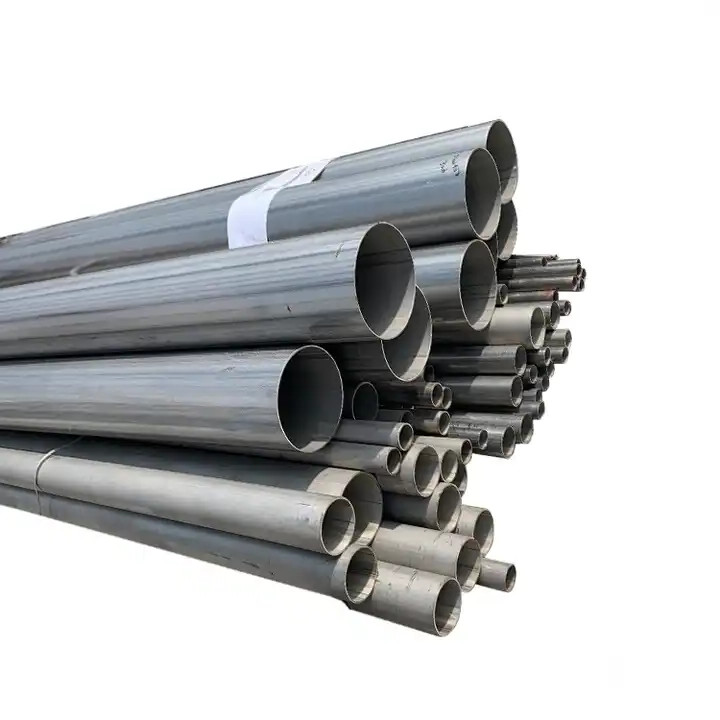

Sanitary Stainless Steel Welded Pipe ASTM A270 ASME SA270 TP316L 0
