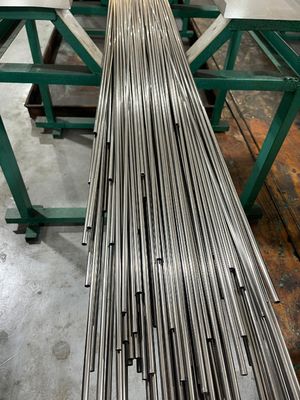

ASTM A213/ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER

  • ASTM A213/ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

TP304 ANNEALED STAINLESS STEEL TUBE

,

HEAT EXCHANGER STAINLESS STEEL TUBE

,

ASME SA213 STAINLESS STEEL TUBE
Leave a Message
Product Description

ASTM A213/ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER​





Overview:



Most stainless steel tubing is heat treated by the bright annealing process, in which the tubing is annealed in a protective medium to prevent discoloration of the bright surface. Since austenitic stainless steel is the most often used tubing material, the heat treatment process is bright annealing of austenitic stainless steel in essence.



The stainless steel tubing is generally produced by a cold-drawing process. A subsequent annealing process is required to eliminate residue stress and obtain improved softness and ductility. Meanwhile, since chromium carbides formed at the grain boundaries during high-temperature exposure may result in susceptibility of the austenitic stainless steel to intergranular corrosion, they must be dissolved during annealing before cooling begins. If the annealing is conducted in a protective atmosphere such as pure hydrogen or dissociated ammonia, the formation of an oxide layer on the tubing exterior and interior surfaces can be completely avoided. The stainless steel tubing maintains its original metal luster as well as excellent surface finish. There is no need for a subsequent pickling process.



Specification:



Specification ASTM A213 & Its equivalent ASME, DIN & EN Standard.
Grades 304, 304H, 304L, 304LN.
Type Superheater, Seamless Ferritic and Austenitic Boiler and Heat-Exchanger Tubes
Outer Diameter Size 1/4” OD, NB to 3” OD, NB sizes
Wall Thickness 1mm to 12mm, SCH 5/5S, 40/40S, 10/10S, 20/20S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Length Up to 6 meters, custom cut lengths
Ends No.4 finish, No.1 Pickled Finish, BA Finish, Electropolished Seamless Tubes
Other Testing Product Analysis, Radiographic Examination, Transverse Tension Test, Flattening Test, Etching Test, Stabilizing Heat Treatment, Intergranular Corrosion Test, Grain Size Test, NACE 0175, Dual Grade, Weld Decay Test, Magnetic Particle Detection, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
Dimension All Pipe & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packaging Loose / Bundle / Plastic Cloth Wraps / Wooden Pallet / Wooden Box / Plastic End Caps / Beveled Protector



Grade UNS C Mn P S Si Cr Ni
304 S30400 0.08 max 2.00 max 0.045 max 0.03 max 1.00 max 18.0-20.0 8.0-11.0
304L S30403 0.035 max 2.00 max 0.045 max 0.03 max 1.00 max 18.0-20.0 8.0-12.0
304H S30409 0.04-0.10 2.00 max 0.045 max 0.03 max 1.00 max 18.0-20.0 8.0-11.0



Mechanical Properties:



Grade Tensile Strength, min, ksi (MPa)

Yield Strength,

min, ksi (MPa)

Elongation in 2 in.

or 50mm, min (%)

 Hardness

Solutioning Temperature,

min, °F(°C)
Rockwell Brinell/Vickers
304 75(515) 30(205) 35 90HRB 192HBW/200HV 1900(1040)
304L 70(485) 25(170) 35 90HRB 192HBW/200HV 1900(1040)
304H 75(515) 30(205) 35 90HRB 192HBW/200HV 1900(1040)



Equivalent Grades:



Standard WERKSTOFF NR. Unified Numbering System European Standards AFNOR British Standards GOST Japanese Standards
304 1.4301 S30400 X5CrNi18-10 Z7CN18‐09 304S31 08Х18Н10 SUS 304
304L 1.4306 / 1.4307 S30403 X2CrNi18-9 / X2CrNi19-11 Z3CN18‐10 304S11 03Х18Н11 SUS 304L
304H 1.4948 S30409 X6CrNi18-10 Z6CN18-09 304S51 08KH18N10 SUS 304H



Applications:

1.Oil & Gas Equipments

2.Offshore Technology

3.Seawater Desalination Plants

4.Chemical Industry

5.Bridges

6.Storage Tanks

7.Medical Industry

8.Civil Engineering

9.Pressure Vessels, Reactor Tanks, and Heat Exchangers

10.Rotors, Impellers and Shafts

11.Power Plants

12.Petrochemical

13.Shipbuilding Industry
