ASME SA249 / ASTM A246 TP316L Stainless Steel Welded Tube BA Surface In Bundle Package

  • ASME SA249 / ASTM A246 TP316L Stainless Steel Welded Tube BA Surface In Bundle Package
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

ASTM Stainless Steel Welded Tube

,

TP316L Stainless Steel Welded Tube

,

BA Surface Stainless Steel Tube
Leave a Message
Product Description

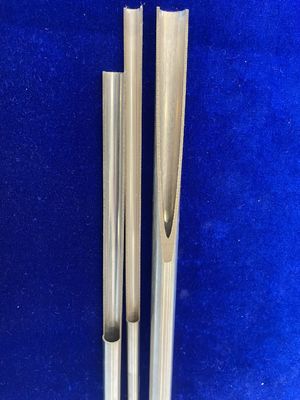

ASME SA249/ASTM A246 TP316L Stainless Steel Welded Tube BA Surface in Bundle Package



ASME SA 249 TP316L stainless steel tube is a type of welded tube, ASME SA 249 specification specifies Aaustemitic steel welded tubes for heat exchanger system, It is the same with ASTM A249 standard, TP316L stainless steel is typical grade used in special environment, which require good corrosion resistance steel.

ASME SA 249 TP316L Stainless Steel Chemical Composition, %, Max

  C Mn P S Si Ni Cr Mo Fe
316 0.08 2.00 0.045 0.030 1.0 11-14 16-18 2-3 Balance
316L 0.035 2.00 0.045 0.030 1.0 10-14 16-18 2-3 Balance

ASME SA 249 TP316L Stainless Steel Properties

  Tensile Strength(Mpa), Min Yield Point(Mpa), Min Elongation(%), Min Hardness, Max
316 515 205 35 B90
316L 485 170 35 B90

TP316L Stainless Steel Alternatives

There are several alternatives of TP316 in different standards, some of them referring to chemical composition are little difference, noticing SUS316L is JIS standard grade, Ni content 12% – 15%.

  • UNS S 31603
  • EN 02Cr17Ni12Mo2
  • DIN 1.4404
  • JIS SUS316L
  • China GB 022Cr17Ni12Mo2

ASME SA 249 TP316L Stainless Steel Tube

Tolerances

We offer TP316L welded stainless steel tube conforming to ASME SA 249 / ASTM A249, outside diameter and wall thickness tolerances should be controlled according to SA249 or ASTM A1016, aiming to offer closer tolerances welded tubes, specific details on tolerances

Application

ASME SA 249 TP316L stainless steel tube is applied in condenser, boiler, super heater and heat exchanger and other pressure equipment, TP316L stainless steel has high strength and corrosion resistance characteristics compared to typical Austenitic stainless steel 304, the tubes are able to work under high temperature and corrosive environment, of course TP316L tube is a good option, and it is durable and cost effective.
