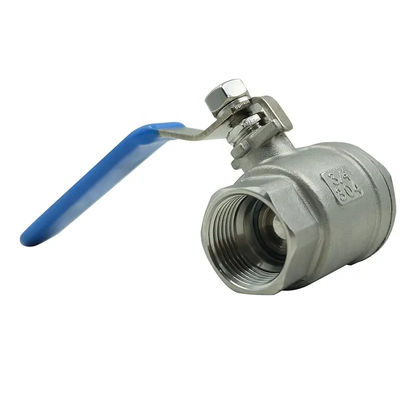

Stainless Steel Ball Valve CF8M 1000WOG Valve 2 Inch 3 Inch

  • Stainless Steel Ball Valve CF8M 1000WOG Valve 2 Inch 3 Inch
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number valve
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 7-15workdays
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Size 1/2"-10" Temperature Of Media Normal Temperature
Application General Customized Support OEM, ODM
Highlight

API 6D 300LB Gate Valve

,

3 Inch WCB Gate Valve

,

Flanged 300LB Gate Valve
Leave a Message
Product Description

Stainless Steel Ball Valve CF8M 1000WOG Valve 2 Inch 3 Inch



Applicable standards:

Steel gate valves: API 600/API 6D

Steel gate valves: ISO 10434/ISO 14313 Steel valves: ASME B16.34 Face to face: ASME B16.10 End flanges: ASME B16.5 Butt welding ends: ASME B16.25 Inspection and test: API 598/API 6D



Design description:

Full port design OS & Y, Outside screw and yoke BB, Bolted bonnet Flexible wedge, fully guided Choice of solid or split wedge Renewable seat rings Forged T- head stem Rising stem and non- rising handwheel Flanged or butt welding ends Available with BG operator

Max working pressure:

DN40~ DN250: 10K g/cm2

DN300~ DN400: 6K g/cm2

DN4 50: 5Kg/cm2

DN500~ DN650: 4Kg/cm2

DN700~ DN2000: 2Kg/cm2



Pressure Standard:

(PN1.0-2.5MPa),( 150LB),(10K),(Table D, BS4504),(PN1.0-2. 5MPa),(TD, TE, TF,TH)


BODY
Material
References Standard
Coating
Ductile Iron
GGG400 GGG450 GGG500
Epoxy Ral 5005
Carbon Steel
WCB WCC LCC LCB
Epoxy Ral 7011
Stainless Steel
CF8 CF8M CF3 CF3M

Aluminuim-Bronze
C95800 C95400

Valve Parts
Material
Seat
316, 316L
Seal
EPDM,NBR, VOTIN
Body
WCB,CF8,CF8M,CF3,CF3M,HT200,GGG40
Stem seal
PTFE+ EPDM
Stem seal
WCB,CF8
Wedge Disc
201,304,316L
Stem Mut
Copper
Stem
2Cr13, 304,316,316L
A valve is a pipeline accessory used to open and close pipelines, control flow direction, regulate and control the parameters (temperature, pressure, and flow) of the conveying medium. According to their functions, they can be divided into shut-off valves, check valves, regulating valves, etc.
Valves are control components in fluid conveying systems that have functions such as cutoff, regulation, flow guidance, prevention of backflow, pressure stabilization, diversion, or overflow pressure relief. Valves used in fluid control systems, ranging from the simplest globe valves to various valves used in extremely complex self-control systems, have a wide variety of varieties and specifications.
Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media. Valves are further divided into cast iron valves, cast steel valves, stainless steel valves (201, 304, 316, etc.), chromium molybdenum steel valves, chromium molybdenum vanadium steel valves, duplex steel valves, plastic valves, non-standard customized valves, etc.

Detail Images:

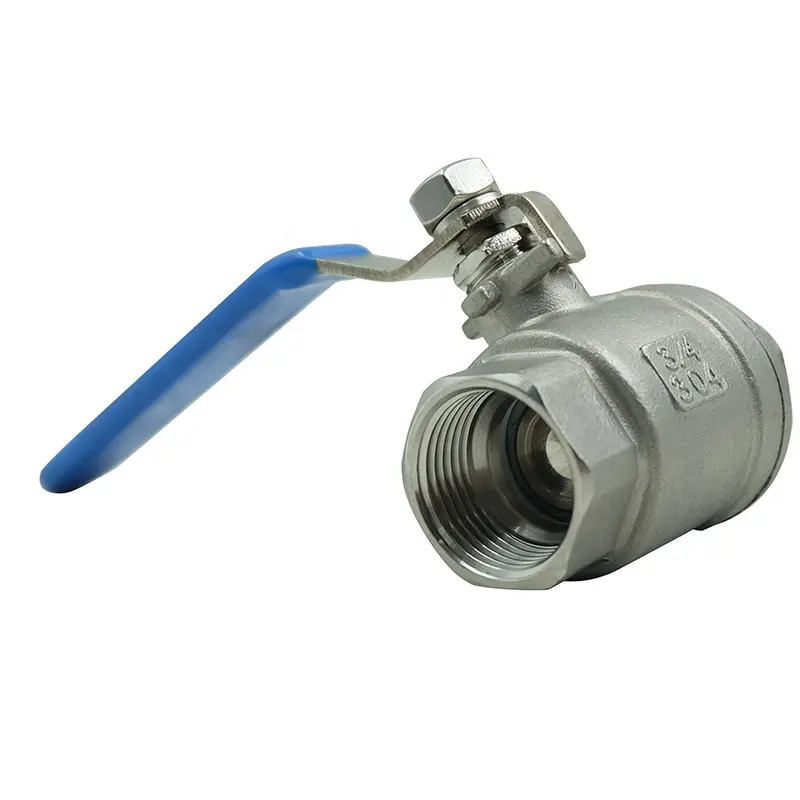

Stainless Steel Ball Valve CF8M 1000WOG Valve 2 Inch 3 Inch 0
