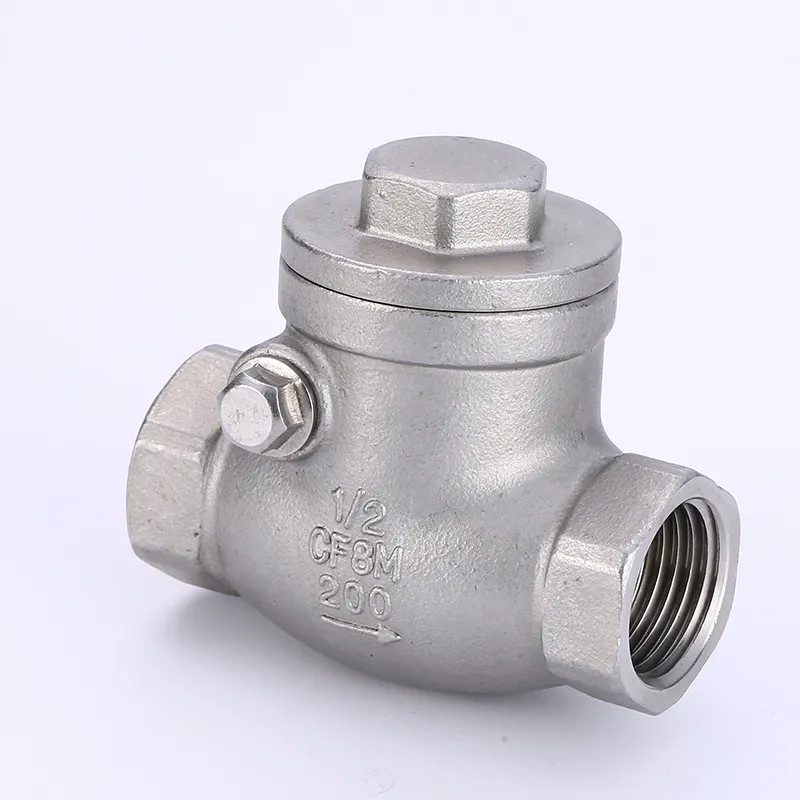

Stainless Steel Swing Check Valve PN16

  • Stainless Steel Swing Check Valve PN16
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number valve
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 7-15workdays
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Size 1/2"-2" Temperature Of Media Normal Temperature
Application General Customized Support OEM, ODM
Highlight

316l Stainless Steel Valve

,

3 piece stainless steel ball valve

,

ODM Stainless Steel Valve
Leave a Message
Product Description

Stainless Steel Swing Check Valve PN16



Applicable standards:

Steel gate valves: ISO 10434/ISO 14313

Steel valves: ASME B16.34 Face to face: ASME B16.10 End

flanges: ASME B16.5

Butt welding ends: ASME B16.25

Inspection and test: API 598/API 6D



Design Description:

Full port design OS & Y, Outside screw and yoke BB, Bolted bonnet Flexible wedge, fully guided Choice of solid or split wedge Renewable seat rings Forged T- head stem Rising stem and non- rising handwheel Flanged or butt welding ends Available with BG operator



Pressure Standard:

(PN1.0-2.5MPa),( 150LB),(10K),(Table D, BS4504),(PN1.0-2. 5MPa),(TD, TE, TF,TH)



BODY

Material

References Standard

Coating

Ductile Iron

GGG400 GGG450 GGG500

Epoxy Ral 5005

Carbon Steel

WCB WCC LCC LCB

Epoxy Ral 7011

Stainless Steel

CF8 CF8M CF3 CF3M



Aluminuim-Bronze

C95800 C95400



Valve Parts

Material

Seat

316, 316L

Seal

EPDM,NBR, VOTIN

Body

WCB,CF8,CF8M,CF3,CF3M,HT200,GGG40

Stem seal

PTFE+ EPDM

Stem seal

WCB,CF8

Wedge Disc

201,304,316L

Stem Mut

Copper

Stem

2Cr13, 304,316,316L





A valve is a pipeline accessory used to open and close pipelines, control flow direction, regulate and control the parameters (temperature, pressure, and flow) of the conveying medium. According to their functions, they can be divided into shut-off valves, check valves, regulating valves, etc.
Valves are control components in fluid conveying systems that have functions such as cutoff, regulation, flow guidance, prevention of backflow, pressure stabilization, diversion, or overflow pressure relief. Valves used in fluid control systems, ranging from the simplest globe valves to various valves used in extremely complex self-control systems, have a wide variety of varieties and specifications.
Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media. Valves are further divided into cast iron valves, cast steel valves, stainless steel valves (201, 304, 316, etc.), chromium molybdenum steel valves, chromium molybdenum vanadium steel valves, duplex steel valves, plastic valves, non-standard customized valves, etc.
Stainless Steel Swing Check Valve PN16 0
