4mm Stainless Steel Welded Pipe ASTM A358 CL.1 TP316L S31603 1.4404

  • 4mm Stainless Steel Welded Pipe ASTM A358 CL.1 TP316L S31603 1.4404
Place of Origin CHINA
Brand Name Shangle
Certification Stainless Steel Welded Pipe
Model Number welded tube
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Stainless Steel Welded Tube Usage Industry/Construction
Tolerance ±1% Technique Cold Rolled Or Hot Rolled
Price Term CIF CFR FOB EX-WORK Welding Line Type ERW
Highlight

1.4404 Stainless Steel Welded Pipe

,

ASTM 4mm Stainless Steel Pipe

,

S31603 Stainless Steel Welded Pipe
Leave a Message
Product Description

ASTM A358 CL.1 TP316L S31603 1.4404 Stainless Steel Welded Pipe

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

ASTM A358 316/316L Pipe has been serving the need of gas and oil industry, power plants, shipbuilding, automotive and many other industries also. This type of alloy is leading in the transportation industry for carrying water, gas, oil, etc, from one place to another.

ASTM A358 CL1 - ASTM A358 Class 1 Pipe shall be double welded by processes employing filler metal in all passes and shall be completely radiographed.
ASTM A358 CL2 - ASTM A358 Class 2 Pipe shall be double welded by processes employing filler metal in all passes, no radiography is required.
ASTM A358 CL3 - ASTM A358 Class 3 Pipe shall be single welded by processes employing filler metal in all passes and shall be completely radiographed.
ASTM A358 CL4 - Same as ASTM A358 Class 3 except that the weld pass exposed to the inside pipe surface may be made without the addition of filler metal.
ASTM A358 CL5 - ASTM A358 Class 5 Pipe shall be double welded by processes employing filler metal in all passes and shall be spot radiographed.



Chemical Composition:

Grade   C Mn Si P S Cr Mo Ni N
316 Min – – – 0 – 16.0 2.00 10.0 –
Max 0.08 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10
316L Min – – – – – 16.0 2.00 10.0 –
Max 0.03 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10



MECHANICAL PROPERTIES OF TP316 / 316L CLASS 1 EFW PIPES

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %



Equivalent Material:

Grade UNS No Old British Euronorm Swedish
SS		 Japanese
JIS
BS En No Name
316 S31600 316S31 58H, 58J 1.4401 X5CrNiMo17-12-2 2347 SUS 316
316L S31603 316S11 - 1.4404 X2CrNiMo17-12-2 2348 SUS 316L



Applications:

-Cryogenic Industry
-LNG Gas
-Offshore Industry
-Process Plants
-Sub Sea
-Refineries etc.

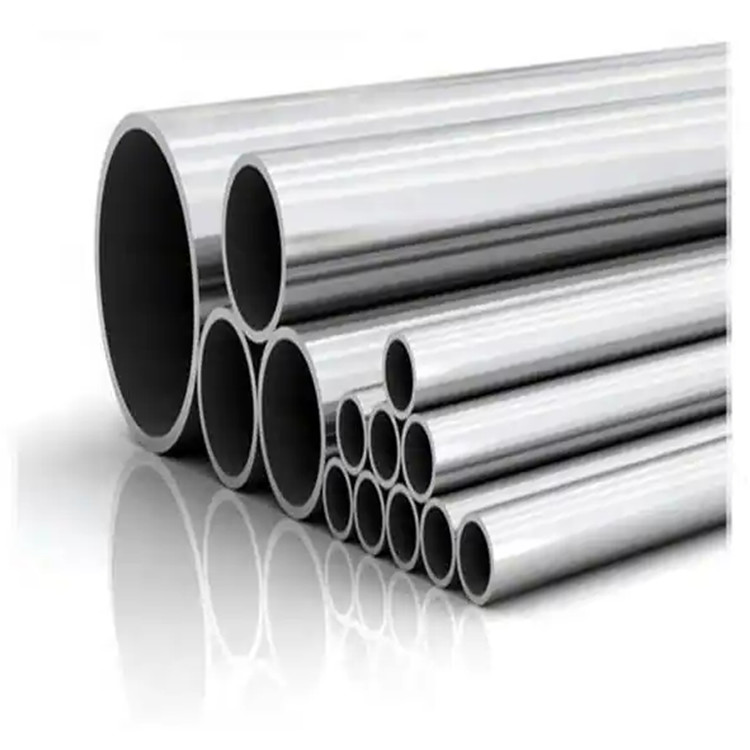

Detail image

4mm Stainless Steel Welded Pipe ASTM A358 CL.1 TP316L S31603 1.4404 04mm Stainless Steel Welded Pipe ASTM A358 CL.1 TP316L S31603 1.4404 1
