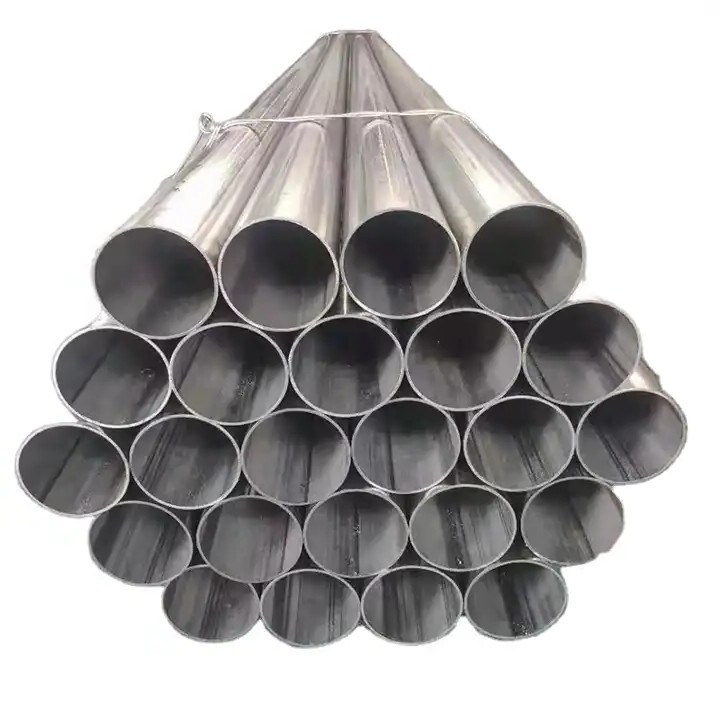

Heat Resistant Stainless Steel Welded Pipe 316L TP316L Tubing 6m

  • Heat Resistant Stainless Steel Welded Pipe 316L TP316L Tubing 6m
Place of Origin CHINA
Brand Name Shangle
Certification Stainless Steel Welded Pipe
Model Number welded tube
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Stainless Steel Welded Tube Usage Industry/Construction
Tolerance ±1% Technique Cold Rolled Or Hot Rolled
Price Term CIF CFR FOB EX-WORK Welding Line Type ERW
Highlight

316L Stainless Steel Welded Pipe

,

Heat Resistant 6m Stainless Steel Pipe

,

TP316L Stainless Steel Welded Pipe
Leave a Message
Product Description

316L TP316L Grade Stainless Steel Welded Pipe For High Temperature

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

316 stainless steel tube is an austenitic stainless steel material. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. The main uses of stainless steel 316 are heat exchangers for pulp and paper-making equipment, dyeing equipment, film washing equipment, pipelines, and exterior materials for buildings in coastal areas. It is also used in the field of solenoid valves, mainly for housings, clamps, spheres, valve bodies, valve seats, nuts, valve stems, etc.



Chemical composition

C Si Mn P S Cr Mo Ni N
0.07 1.00 2.00 0.045 0.015 16.5-18.5 2.00-2.5 10.0-13.0 0.11



Physical Property

Density 8.0g/cm³
Melting point 1400℃
Thermal Expansion 15.9 x10^-6 /K
Modulus of Elasticity 193GPa
Thermal Conductivity 16.3W/m.K
Electrical Resistivity 0.74 x10^-6 Ω .m



Welded Tube Advantage

1. Uniform wall thickness - the base material is formed strip, with good wall thickness consistency and high surface finish, reaching industrial clean surface level 2B.

2. Low residual stress - the steel pipe after forming uses a high temperature above 1040 degrees for bright annealing of the stainless steel pipe to eliminate stress.

3. High weld strength - welding adopts fusion welding, the material composition is unchanged, after high temperature heat treatment, the weld and the base material have the same intergranular structure, flattening the weld, reverse bending, flaring and other damage experiments, the weld will not appear cracking or cracks, burring and other problems. In addition to eddy current testing and water pressure or gas test to ensure the quality of the pipe.

4. Good consistency - the outer diameter, wall thickness, length and straightness of the pipe are consistent, and the processing accuracy is high



Stainless Steel Welded Tube Product Description

Material 304, 304L, 316, 316L, 201, 202, 430, 409
Standard: ASTM A554, JIS G3446, EN 10297
Outside Diameter 9.5mm ~ 100mm
Thickness: 0.4mm ~ 4.0mm
Length: 10mm ~ 7.5 meter or any custom made
MOQ: 10 to 1000pcs or more quantity
Technixal flow Coil → Inspecting → Slitting → Welding → Cutting → Buffing → Inspecting → Packing → Trucking
Surface Hairline polished mirror



Packaging &Shipping



Packing Idea Packing Method by Customer Request
1 Each piece per poly bag or labeling.
2 Each piece per paper tube.
3 Pack tubes into paper cartons for customer special requirement.
4 50 pieces per bundle with waterproof packing
5 Provide strong packing with wooden crate, wooden case, steel crate, plastic pallet, wooden pallet, paper pallet as customer need.
6 Good experience for loading goods into container for customer request



Detail image
Heat Resistant Stainless Steel Welded Pipe 316L TP316L Tubing 6m 0Heat Resistant Stainless Steel Welded Pipe 316L TP316L Tubing 6m 1
