A312 TP304 ERW Stainless Steel Pipe , Austenitic Stainless Steel Pipe 0.5mm 0.6mm

  • A312 TP304 ERW Stainless Steel Pipe , Austenitic Stainless Steel Pipe 0.5mm 0.6mm
Place of Origin CHINA
Brand Name Shangle
Certification Stainless Steel Welded Pipe
Model Number welded tube
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Stainless Steel Welded Tube Usage Industry/Construction
Tolerance ±1% Technique Cold Rolled Or Hot Rolled
Price Term CIF CFR FOB EX-WORK Welding Line Type ERW
Highlight

TP304 ERW Stainless Steel Pipe

,

0.5mm Austenitic Stainless Steel Pipe

,

0.6mm Austenitic Stainless Steel Pipe
Leave a Message
Product Description

A312 TP304 Grade Welded Stainless Steel Pipes / Tubes

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

A312 TP304 is an austenitic alloy grade designed with a superior nickel and chromium composition.ASTM A312 Tp304 alloy offers excellent resistance to corrosive and oxidizing media across stress-induced environments. This versatile alloy grade has excellent mechanical properties. They have a minimum tensile strength of 75 ksi and a minimum yield strength of 30 ksi. ASTM A312 grade TP304 tubing can be processed by hot or cold rolling processes. These tubes are available in thicknesses ranging from 0.8 mm to 12 mm and are available in various sizes and specifications to meet project requirements.

Components in this grade are produced in seamless, welded and two-dimensional configurations. Each of these modules has its own characteristics that allow them to be used in different applications.ASME SA 312 TP 304 seamless tubing is produced by an extrusion process in which a hot billet is passed through the metal. This gives the material the ability to work at high temperatures and pressures. These pipes are slightly more expensive than welded pipes. astm a312 tp 304 welded pipes are not suitable for pressure vessel grades. In these modules, the sheet or strip is rolled and welded in a series of shop welding procedures. a312 Tp304 welded pipe is relatively inexpensive and can be produced in sizes from 1/8 to 36 NB. These pipes are very versatile and are designed for outside diameters ranging from 6.35 mm to 114.3 mm. The robust SA 312 Tp 304 ERW pipes are made by longitudinally welding the metal to precisely shape the pipe. These pipes are very durable and do not require any filler material to weld them in place.



Chemical Composition of ASTM A312 TP304 Welded Pipe

Grade Carbon Sulfur Manganese Chromium Phosphorus Silicon Nickel
TP304 0.08 0.03 2 18.0-20.0 0.045 1 8.0-11.0



Mechanical Properties of ASTM A312 TP304 Welded Pipe

Material Yield Strength Heat Tensile Strength Temperure Elongation
Ksi (MPa), Min. Treatment Ksi (MPa), Min. Min.º F(º C)
TP304 30(205) Solution 75(515) 1900 (1040) 35



Equivalent of ASTM A312 TP304 Welded Pipe

Werkstoff/ DIN European Standards grades ASTM grades
1.4301 X5CrNi18-10 A 312 Grade TP304



Physical properties of A312 TP304 Welded Pipe


Grade		 Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
304/L/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720



Application

1. Industrial hydraulic
2. Automobile industry
3. Industrial machinery industry
4. Industrial automation
5. Rail transit
6. Heat exchange
7. Seamless pipe
8. Decoration works
9. Other



Detail Images:

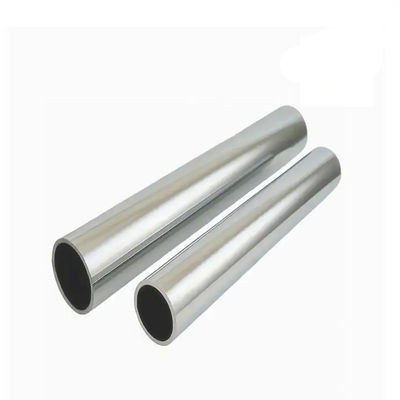

A312 TP304 ERW Stainless Steel Pipe , Austenitic Stainless Steel Pipe 0.5mm 0.6mm 0
