316 316l Thick Wall Stainless Steel Pipe , 0.5mm-48mm SS Duplex ASTM A790 Pipe

  • 316 316l Thick Wall Stainless Steel Pipe , 0.5mm-48mm SS Duplex ASTM A790 Pipe
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

316L Thick Wall Stainless Steel Pipe

,

Duplex ASTM A790 Pipe

,

316 Thick Wall Stainless Steel Pipe
Leave a Message
Product Description

ASTM A790 UNS S31803/2205 Duplex Steel Thick Wall Seamless Pipes

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



About Grade UNS S31803

Stainless steel alloy grades such as UNS S31803 prove to be particularly useful in applications that are susceptible to stress related corrosion cracking. SCC or stress related corrosion cracking in pipes can have harmful effects on not only the workers in the factory but also to the business itself. Since ASTM A790 UNS S31803 Duplex Steel Seamless Pipe is resistant to SCC, the piping system becomes durable and it has longevity in comparison to conventional steels.

Besides having superior resistance to SCC, the ASME SA 790 UNS S31803 Pipe has improved mechanical characteristics like higher yield strength, which incidentally is almost twice that of a traditional austenitic stainless steel alloy. Pipes under specification ASTM A790, are produced either in a seamless manner or they have a welded construction. The automatic welding process used to weld the ASTM A790 Pipe is to be done without the use of any filler metal. The specification also calls for determining the percentage of elements used to alloy both ASTM A790 Grade UNS S31803 Welded Pipe and seamlessly constructed ones as well. Testing is also an important parameter of these pipes. In addition to a nondestructive electric test, the ASTM A790 UNS S31803 Seamless Pipe is required to conform to the values of tension test, flattening tests, hydrostatic tests as well as a hardening test. Perfect impex is a large manufacturer and supplier of these pipes and we produce all kinds and variations of the product. The advantage to choose ASTM A790 Grade UNS S31803 Pipe manufacturer is to get 5 to 10% discount price compare to stockist and supplier in Mumbai and Prime quality material with Mill test Certificate.





Chemical Composition

Grade C
max		 Si
max		 Mn
max		 P
max		 S
max		 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10





Physical Properties

Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20



Shangle Quality Tests

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections



Application:

  • Chemical processing, Transport and Storage.
  • Oil and gas exploration and offshore rigs.
  • Oil and gas refining.
  • Marine environments.
  • Pollution control equipment.
  • Pulp and paper manufacturing
  • Chemical process Plant



Detail Images:

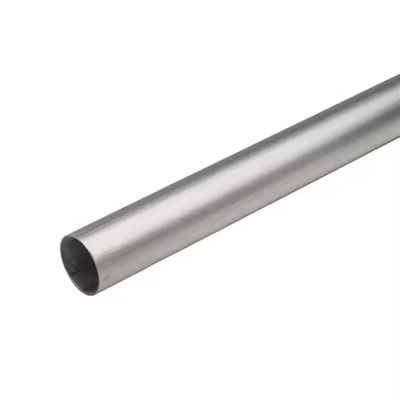

316 316l Thick Wall Stainless Steel Pipe , 0.5mm-48mm SS Duplex ASTM A790 Pipe 0316 316l Thick Wall Stainless Steel Pipe , 0.5mm-48mm SS Duplex ASTM A790 Pipe 1
