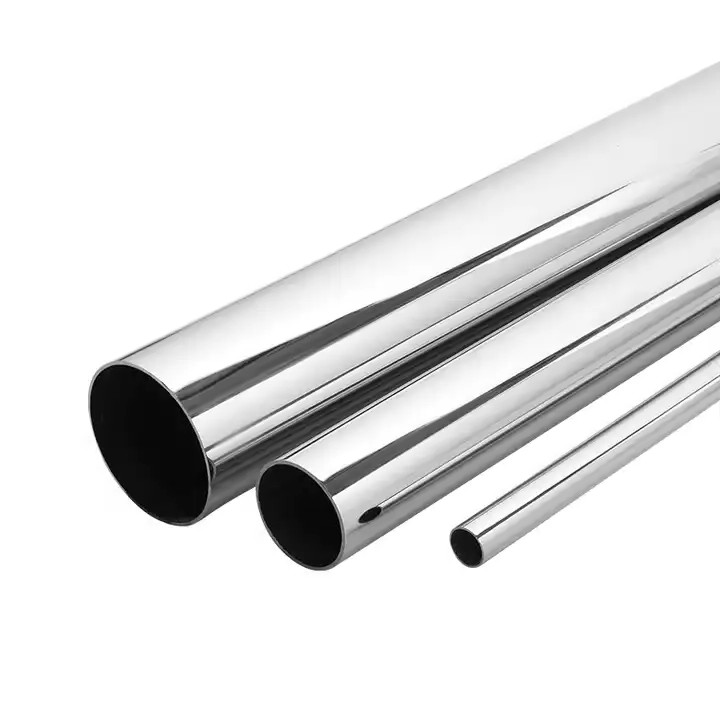

4.0mm Stainless Steel Welded Tube ASTM A312 A270 304 304L 316 316L
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shangle |
| Certification | Stainless Steel Welded Pipe |
| Model Number | welded tube |
| Minimum Order Quantity | 1ton |
| Price | Negotiable |
| Packaging Details | In wooded cases or pallets,or as for clients requirement |
| Delivery Time | 7-15 working days after receiving payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Stainless Steel Welded Tube | Usage | Industry/Construction |
|---|---|---|---|
| Tolerance | ±1% | Technique | Cold Rolled Or Hot Rolled |
| Price Term | CIF CFR FOB EX-WORK | Welding Line Type | ERW |
| Highlight | 4.0mm Stainless Steel Welded Tube,4.0mm ASTM A312 Stainless Steel Pipe,316L Stainless Steel Welded Tube |
||
Product Description
ASTM A312 A270 304 304L 316 316L Welded Tube Pipe Stainless Steel
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
Standard Specification:
ASTM A249 / A249M - 10a Standard Specification for Welded Austenitic Steel Boiler, Superheater,
Heat-Exchanger, and Condenser Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing
for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A358/A358M-08a:Standard Specification for Electric-Fusion-Welded Austenitic
ASTM A778 - 01(2009)e1:Standard Specification for Welded, Unannealed Austenitic Stainless
Steel Tubular Products
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Pipe
Others like BS, JIS , DIN , EN , GOST standard we all can supply .
Material Grade:
| American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| GOST | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Welded Pipe | 6.00mm to 830mm | 0.5mm to 48mm |
Welded tube advantage
1. Uniform wall thickness - the base material is formed strip, with good wall thickness consistency and high surface finish, reaching industrial clean surface level 2B.
2. Low residual stress - the steel pipe after forming uses a high temperature above 1040 degrees for bright annealing of the stainless steel pipe to eliminate stress.
3. High weld strength - welding adopts fusion welding, the material composition is unchanged, after high temperature heat treatment, the weld and the base material have the same intergranular structure, flattening the weld, reverse bending, flaring and other damage experiments, the weld will not appear cracking or cracks, burring and other problems. In addition to eddy current testing and water pressure or gas test to ensure the quality of the pipe.
4. Good consistency - the outer diameter, wall thickness, length and straightness of the pipe are consistent, and the processing accuracy is high
Stainless Steel Welded Tube Product Description
| Material | 304, 304L, 316, 316L, 201, 202, 430, 409 |
| Standard: | ASTM A554, JIS G3446, EN 10297 |
| Outside Diameter | 9.5mm ~ 100mm |
| Thickness: | 0.4mm ~ 4.0mm |
| Length: | 10mm ~ 7.5 meter or any custom made |
| MOQ: | 10 to 1000pcs or more quantity |
| Technixal flow | Coil → Inspecting → Slitting → Welding → Cutting → Buffing → Inspecting → Packing → Trucking |
| Surface | Hairline polished mirror |
Packaging &Shipping
| Packing Idea | Packing Method by Customer Request |
| 1 | Each piece per poly bag or labeling. |
| 2 | Each piece per paper tube. |
| 3 | Pack tubes into paper cartons for customer special requirement. |
| 4 | 50 pieces per bundle with waterproof packing |
| 5 | Provide strong packing with wooden crate, wooden case, steel crate, plastic pallet, wooden pallet, paper pallet as customer need. |
| 6 | Good experience for loading goods into container for customer request |
Detail image
