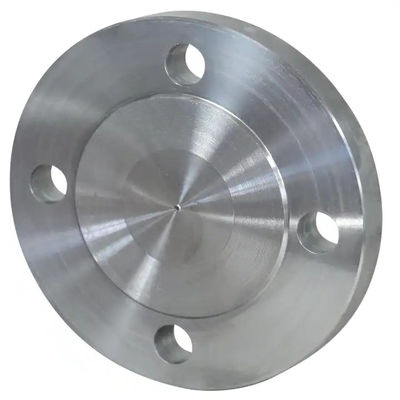

Austenitic Steel Flange Fittings ASTM A182 F317 317L BLRF ANSI B16.5

  • Austenitic Steel Flange Fittings ASTM A182 F317 317L BLRF ANSI B16.5
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001 PED
Model Number 304/304L,0Cr19Ni10,EN1.4306 ect
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details as required
Delivery Time 5-7days
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material F304L Type Slip On
Standard Ansi Asme Other Lap Joint Flange
Application Natural Gas, Chemical, Power And Metallurgy Size 1/2"-24"
Manufacturing Way Forging;Casting Packing Wooden Box
Highlight

B16.5 Steel Flange Fittings

,

Austenitic ANSI B16.5 Flange

,

ASTM Steel Flange Fittings
Leave a Message
Product Description
Austenitic Stainless Steel ASTM A182 F317 And 317L Flange BLRF B16.5

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Chemical Composition of 317 / 317L Flange

Grade C Mn Si P S Cr Mo Ni Fe
SS 317 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.845 min
SS 317L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.89 min





Mechanical Strength of A182 F317 / 317L Flanges

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %





ASTM A182 F317 / 317L Pipe Flange Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317 1.4449 S31700 SUS 317 –
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4





Dimension of 317 Stainless Steel Flange

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
AS4087 PN14 95 67 4 M12 14
AS 2129 Flange Table C 95 67 4 13 14
Table D 95 67 4 13 14
Table E 95 67 4 13 14
Table F 95 67 4 13 14
Table H 114 83 4 16 17
Table J 114 83 4 16 17
ANSI B16.5 ANSI 150 89 60 4 13 16
ANSI 300 95 67 4 13 16
ANSI 600 95 67 4 13 16
ANSI 900 121 83 4 19 22
ANSI 1500 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 80 55 4 M10 11
PN10 95 65 4 M12 14
PN16 95 65 4 M12 14
PN20 90 60.5 4 M14 16
PN25 95 65 4 M12 14
PN40 95 65 4 M12 14





317 Stainless Steel Flanges Pressure Rating

Temp. °F 150 300 400 600 900 1500 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 235 620 825 1240 1860 3095 5160
300 215 560 745 1120 1680 2795 4660
400 195 515 685 1025 1540 2570 4280
500 170 480 635 955 1435 2390 3980
600 140 450 600 900 1355 2255 3760
650 125 445 590 890 1330 2220 3700
700 110 430 580 870 1305 2170 3620
750 95 425 570 855 1280 2135 3560
800 80 420 565 845 1265 2110 3520
850 65 420 555 835 1255 2090 3480
900 50 415 555 830 1245 2075 3460
950 35 385 515 775 1160 1930 3220
1000 20 350 465 700 1050 1750 2915
1050 20 345 460 685 1030 1720 2865
1100 20 305 405 610 915 1525 2545
1150 20 235 315 475 710 1185 1970
1200 20 185 245 370 555 925 1545
1250 20 145 195 295 440 735 1230
1300 20 115 155 235 350 585 970
1350 20 95 130 190 290 480 800
1400 20 75 100 150 225 380 630
1450 20 60 80 115 175 290 485
1500 20 40 55 85 125 205 345



Applications:

-Oil and Gas Industries
-Food Processing Industries
-Equipments
-Pipeline
-Power Industries
-Ship Building Industries
-Paper Industries
-Cement Industries
-Chemical Industries
