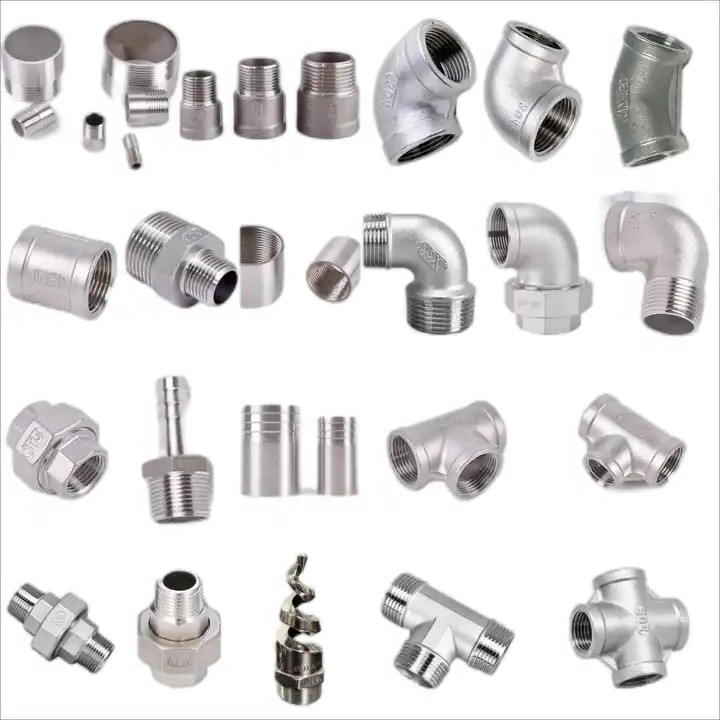

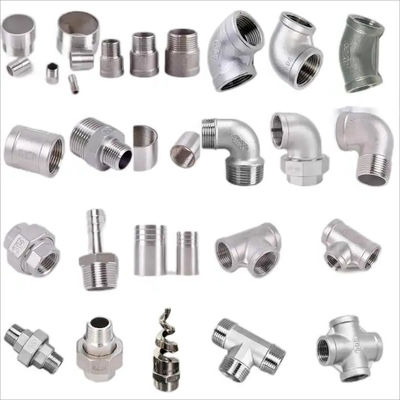

SUS304 90 Degree LR Elbow

  • SUS304 90 Degree LR Elbow
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number stainless steel pipe fittings
Minimum Order Quantity MOQ500kg
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Size 1/8”NB To 4”NB (Socketweld & Screwed-Threaded)
Type Screwed-Threaded Fittings Package Seaworthy Standard Package
Price Terms FOB,CIF,CFR,EXW Shape Equal
Connection Female/Male Degree 45°，90°，180°
Highlight

SUS304 90 Degree LR Elbow

,

SUS304 stainless steel tube fittings

,

JIS B2311 90 Degree LR Elbow
Leave a Message
Product Description

SS Pipe Fitting JIS B2312 SUS304 90 Degree LR Elbow Petrochemical

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

A 90° elbow attaches readily to pipes of various materials like plastic, copper, cast iron, steel, lead, rubber etc. In other words, the 90° elbows are used to provide a joint between two pipes at right angles to each other. They are used as railing ends or corners on a level installation.



JIS B2312 standard specifies the steel and nickel chromium ferro alloy seamless pipe fittings to be fitted by butt welding,mainly to pressure service pipings 1), high pressure service pipings 2), high temperature service pipings 3), alloy steel pipings 4) stainless steel pipings 5) low temperature service pipings 6) and steel pipes for fired heaters 7) (hereafter referred to as “pipe fittings”).



Standard Dimensions Of JIS B2312 90 DEG Elbow



SS Pipe Fitting JIS B2312 SUS304 90 Degree LR Elbow Petrochemical 0



NPS Of JIS B2312 Elbows

O.D.

Center to End

90 Degree elbows Weight In KG

Normal Size Of Pipe

90 Degree (A)

Kilogram/PC

(A)

(B)

(D)

(Long)

(Short)

(Long)

(Short)

15

½

21.7

38.1

-

0.08

0.05

20

¾

27.2

38.1

-

0.1

0.07

25

1

34

38.1

25.4

0.15

0.1

32

1¼

42.7

47.6

31.8

0.26

0.17

40

1½

48.6

57.2

38.1

0.35

0.24

50

2

60.5

76.2

50.8

0.64

0.43

65

2½

76.3

95.3

63.5

1.12

0.75

80

3

89.1

114.3

76.2

1.58

1.05

90

3½

101.6

133.4

88.9

2.17

1.45

100

4

114.3

152.4

101.6

2.91

1.94

125

5

139.8

190.5

127

4.49

2.99

150

6

165.2

228.6

152.4

7.09

4.73

200

8

216.3

304.8

203.2

14.4

9.61

250

10

267.4

381

254

25.4

16.9

300

12

318.5

457.2

304.8

38.1

25.4

350

14

355.6

533.4

355.6

56.7

37.8

400

16

406.4

609.6

406.4

74.3

49.5

450

18

457.2

685.8

457.2

94.2

62.8

500

20

508

762

508

116

77.7

550

22

558.8

838.2

558.8

141

94.1

600

24

609.6

914.4

609.6

168

112

650

26

660.4

990.6

660.4

198

132

700

28

711.2

1066.8

711.2

230

154

750

30

762

1143

762

264

176

800

32

812.8

1219.2

812.8

301

201

850

34

863.6

1295.4

863.6

340

227

900

36

914.4

1371.6

914.4

380

253

950

38

965.2

1447.8

965.2

425

283

1000

40

1016

1524

1016

471

314

1050

42

1066.8

1600.2

1066.8

518

346

1100

44

1117.6

1676.4

1117.6

570

380

1150

46

1168.4

1752.6

1168.4

623

415

1200

48

1219.2

1828.8

1219.2

677

452




SUS304 90 Degree LR Elbow 1
