Elbow Codo Stainless Steel Buttweld Fitting For Waste Water Treatment 316L

  • Elbow Codo Stainless Steel Buttweld Fitting For Waste Water Treatment 316L
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number stainless steel pipe fittings
Minimum Order Quantity MOQ500kg
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Size 1/8”NB To 4”NB (Socketweld & Screwed-Threaded)
Type Screwed-Threaded Fittings Package Seaworthy Standard Package
Price Terms FOB,CIF,CFR,EXW Shape Equal
Connection Female/Male Degree 45°，90°，180°
Highlight

Elbow Stainless Steel Buttweld Fitting

,

316L stainless steel butt weld elbow

,

Stainless Steel Buttweld Fitting
Leave a Message
Product Description

EN10253-4 1.4404 / WP316L Elbow Codo Stainless Steel Buttweld Fitting For Waste Water Treatment

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description:

The 1.4404 elbow is a type of pipe fitting that is made from stainless steel. The designation "1.4404" corresponds to the material grade of the stainless steel, which is also commonly known as 316L stainless steel. This type of stainless steel is known for its excellent corrosion resistance, making it suitable for a wide range of applications, particularly those involving exposure to corrosive environments such as chemical processing, food processing, and marine applications.



The elbow fitting itself is designed to change the direction of flow in a piping system. It typically features a curved section, allowing for fluid or gas to change direction smoothly, reducing turbulence and pressure drop within the system. Elbow fittings are commonly used in a variety of industries including petrochemical, oil and gas, pharmaceutical, and water treatment, among others.



The 1.4404 elbow is available in various sizes and pressure ratings to accommodate different piping system requirements. It may also come in different configurations, such as butt weld, socket weld, and threaded types, allowing for flexibility in installation and connection methods.



Specification:

Standard

EN10253-4

Grades

1.4404/WP316L

Size

DN15-DN1000 or customized

Wall Thickness

1.6-14.0mm or customized

Radius

R=2D/3D/5D

End

Beveled End

Surface

Sand Blasting

Packing

Plywood case/Pallet



Grade

C

Mn

P

S

Si

Cr

Ni

Mo

N

WP316L

0.035 max

2.00 max

0.045 max

0.03 max

1.00 max

16.0-18.0

10.0-14.0

2.00-3.00

-

1.4404

0.03 max

2.00 max

0.040 max

0.015 max

1.00 max

16.5-18.5

10.0-13.0

2.00-2.50

0.11 max



Grade

Tensile Strength

min, MPa

Yield Strength
min, MPa

Elongation in 2 in.
or 50mm, min (%)

WP316L

485

170

35

1.4404

490-690

190

40



Application:

1. Chemical Processing: They are used in chemical plants where resistance to corrosion from various chemicals is required.
2. Food and Beverage Industry: Stainless steel elbows are preferred in the food and beverage industry due to their hygiene, corrosion resistance, and ease of cleaning.
3. Pharmaceutical Industry: Similar to the food and beverage industry, pharmaceutical companies use stainless steel elbows due to their sanitary properties and resistance to corrosion.
4. Water Treatment: Stainless steel elbows are also used in water treatment facilities and systems due to their corrosion resistance, especially in situations where corrosion due to moisture and chemicals is a concern.
5. Oil and Gas Industry: They are used in oil and gas production and processing facilities due to their corrosion resistance in harsh environments.
6. Marine Applications: Due to their corrosion resistance in saltwater environments, stainless steel elbows are used in marine applications such as shipbuilding and offshore structures.



Detail Images:

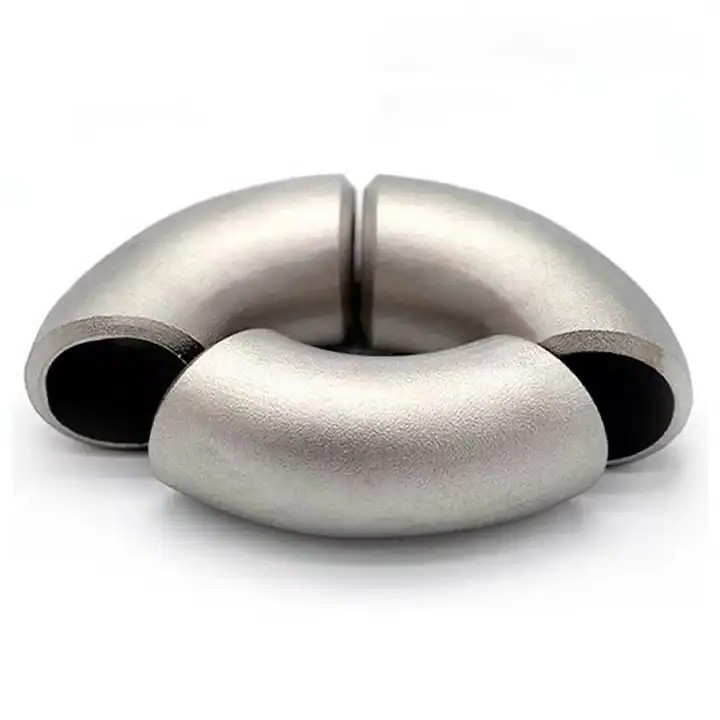

Elbow Codo Stainless Steel Buttweld Fitting For Waste Water Treatment 316L 0
