316L Stainless Steel Welded Pipe ASTM A358 CL1 TP316L For Offshore Industry

  • 316L Stainless Steel Welded Pipe ASTM A358 CL1 TP316L For Offshore Industry
  • 316L Stainless Steel Welded Pipe ASTM A358 CL1 TP316L For Offshore Industry
Place of Origin CHINA
Brand Name Shangle
Certification Stainless Steel Welded Pipe
Model Number welded tube
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Stainless Steel Welded Tube Usage Industry/Construction
Tolerance ±1% Technique Cold Rolled Or Hot Rolled
Price Term CIF CFR FOB EX-WORK Welding Line Type ERW
Highlight

ASTM Stainless Steel Welded Pipe

,

A358 316L Stainless Steel Pipe

,

A358 Stainless Steel Welded Pipe
Leave a Message
Product Description

ASTM A358 CL1 TP316L Welded Stainless Steel Pipe for Offshore Industry



Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

ASTM A358 TP316L is a standard specification for electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service, or both.316L is a low carbon version of Type 316 stainless steel, which is commonly used for its excellent corrosion resistance, especially in corrosive environments.



ASTM A358 specifies that the pipes covered by this standard should be produced by the electric-fusion-welding process. This welding method involves melting two or more pieces of metal using an electric arc. The molten metal is then fused together to form a continuous joint.



Pipe Dimensions and Sizes: ASTM A358 TP316L covers a range of pipe sizes and thicknesses. The standard includes provisions for various nominal pipe sizes, wall thicknesses, and schedules to meet different design requirements.



Chemical Composition: The chemical composition requirements for TP316L stainless steel are specified in the standard to ensure the material's corrosion resistance and other mechanical properties.



Mechanical Properties: ASTM A358 provides requirements for mechanical properties such as tensile strength, yield strength, and elongation. These properties are essential for assessing the material's performance in different applications.

Heat Treatment: The standard may specify heat treatment requirements for the TP316L pipes to achieve the desired mechanical and corrosion-resistant properties.





ASTM A358 Grade 316L Stainless Steel EFW Pipes Chemical Composition



Grade C Mn Si P S Cr Mo Ni
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00



ASTM A358 Grade 316L Stainless Steel EFW Pipes Mechanical Properties



Grade Tensile Str
(MPa) min		 Yield Str
0.2% Proof
(MPa) min		 Elong
(% in 50mm) min		 Hardness
Rockwell B (HR B) max Brinell (HB) max
316 515 205 40 95 217
316L 485 170 40 95 217



ASTM A358 Grade 316 /316L Stainless Steel EFW Pipes Physical Properties



Grade Density
(kg/m3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100°C
(J/kg.K)		 Elec Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C At 100°C At 500°C
316/L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740



Specification Grade Comparison for ASTM A358 Grade 316 /316L Stainless Steel EFW Pipes



Grade UNS No Old British Euronorm Swedish
SS		 Japanese
JIS
BS En No Name
316 S31600 316S31 58H, 58J 1.4401 X5CrNiMo17-12-2 2347 SUS 316
316L S31603 316S11 - 1.4404 X2CrNiMo17-12-2 2348 SUS 316L



ASTM A358 Grade 316 Stainless Steel EFW Pipes Apllication

  • Cryogenic Industry
  • LNG Gas
  • Offshore Industry
  • Process Plants
  • Sub Sea
  • Refineries etc.

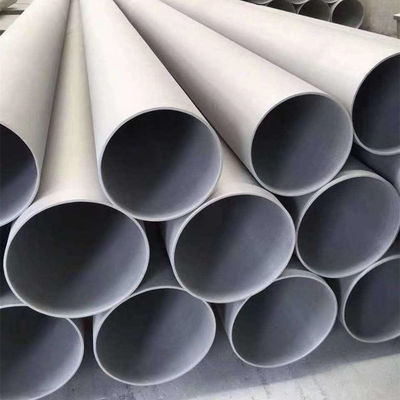

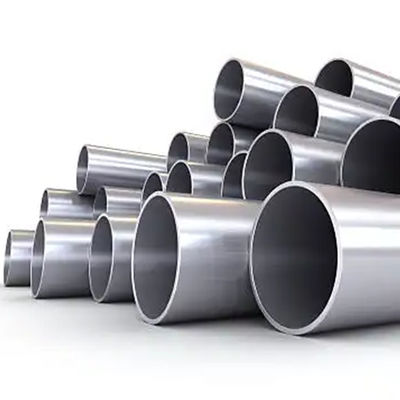

Detail Images:





316L Stainless Steel Welded Pipe ASTM A358 CL1 TP316L For Offshore Industry 0
