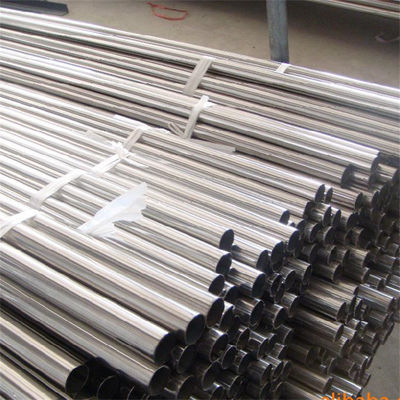

Super Duplex Stainless Steel 2507 ASTM A790 UNS S32750 / 1.4410 Seamless Pipes

  • Super Duplex Stainless Steel 2507 ASTM A790 UNS S32750 / 1.4410 Seamless Pipes
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material S31803/s32205/309S/2520/314/317/347/904/254 Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Stainless Steel 1.4410 Seamless Pipes

,

UNS 1.4410 Seamless Pipes

,

UNS S32750 Seamless Pipes
Leave a Message
Product Description

ASTM A790 / ASME SA790 UNS S32750 Super Duplex Stainless Steel Seamless Pipes





A790 S32750 pipes refer to pipes made from the duplex stainless steel grade S32750, which is also known as 2507 stainless steel. These pipes are highly resistant to corrosion and have excellent mechanical properties, making them ideal for use in harsh environments such as offshore oil and gas platforms, chemical processing and marine engineering.





What are the characteristics of Duplex 2507 / UNS S32750?

  • High resistance to chloride stress corrosion cracking
  • High Strength
  • Superior resistance to chloride pitting and crevice corrosion
  • Good general corrosion resistance
  • Suggested for applications up to 600° F
  • Low rate of thermal expansion
  • Combination of properties given by austenitic and ferritic structure
  • Good weldability and workability





ASTM A790 / ASME SA790 S32750 Super Duplex Stainless Steel Specification

Standard ASTM A790, ASME SA790
Equivalent Standards DIN 17458, GOST 9941-81, GOST 9940-81, EN 10216-5, ASTM A790, ASME SA790, DIN 17456
Material UNS S32750
Equivalent Materials X2CrNiMoN25-7-4, 1.4410, 2507, F53
Related Products stainless steel tube, stainless steel pipe, heat exchanger steel tube





Chemical Composition

Grade

C

max

Si

max

Mn

max

P

max

S

max

 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10



Physical Properties

Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20





Some of the quality tests carried out by us includes

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections




Applications

A790 S32750 pipes have a wide range of applications due to their excellent corrosion resistance and mechanical properties. Some of the common applications of these pipes include:

  • Offshore oil and gas platforms
  • Chemical processing plants
  • Desalination plants
  • Water treatment plants
  • Pulp and paper industry
  • Heat exchangers
  • Power generation plants
  • Marine engineering
  • Food processing industry
  • Pharmaceutical industry

These pipes are also used in various other industries where resistance to corrosion and high strength are required.Super Duplex Stainless Steel 2507 ASTM A790 UNS S32750 / 1.4410 Seamless Pipes 0
