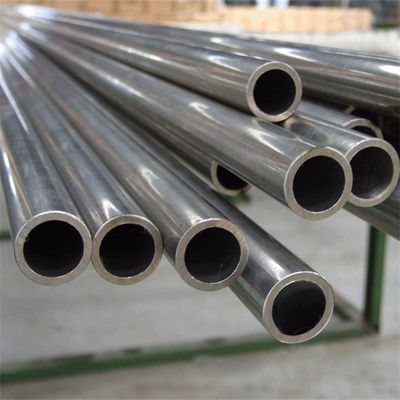

Super Duplex Stainless Steel Pipes, EN 10216-5 1.4462 / 1.4410, UNS32760(1.4501), Pickled & Annealed 20ft

  • Super Duplex Stainless Steel Pipes, EN 10216-5 1.4462 / 1.4410, UNS32760(1.4501), Pickled & Annealed 20ft
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material S31803/s32205/309S/2520/314/317/347/904/254 Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

UNS32760 Duplex Stainless Steel pipe

,

EN 10216-5 Stainless Steel pipe

,

20ft Stainless Steel pipe
Leave a Message
Product Description

Super Duplex Stainless Steel Pipes, EN 10216-5 1.4462 / 1.4410, UNS32760(1.4501), Pickled & Annealed, ,20ft









Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530

Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),

UNS32760(1.4501)



STAINLESS AND DUPLEX STEEL PIPE & TUBE OD Range Wall Range Max.
S=Seamless W=Welded AW=Average Wall Thk. MW=Min. Wall Thk. Length
Specifications Material Grade inches mm inches mm ft. m
A/SA-213 Seamless Ausenitic Alloy Steel Boiler, TP304 TP304L TP304H TP317 TP321 0.125 3.18 0.016 0.41 AW/MW 660 200
SuperHeater and Heat Exchanger Tube TP310S TP310H TP316H TP317L TP321H TO TO TO TO
U-Bending Available TP316 TP316L TP316Ti TP347 TP347H 6 152.4 1 25.4
A/SA-249 Welded Ausenitic Alloy Steel Boiler, TP304 TP316 TP321 TP310S 　 0.25 6.35 0.016 0.41AW 3280 1000
SuperHeater and Heat Exchanger Tube TP304L TP316L TP321H TP347H 　 TO TO TO TO
U-Bending Available 　 　 　 　 　 6 152.4 1 25.4
A/SA-268 Seamless and Welded Ferritic And TP405 TP409 TP410 TP430 　 0.25 6.35 0.02 0.508AW/MW 3280 1000
Martensitic Stainless Steel Tube TP439 TP444 TP446 　 　 TO TO TO TO
For General Service 　 　 　 　 　 6 152.4 1 25.4
A/SA-269 Seamless and Welded Austenitic TP304 TP304L TP304H TP317 TP321 0.125 3.18 0.016 0.41 AW 3280 1000
Stainless Steel Tube TP310S TP310H TP316H TP317L TP321H TO TO TO TO
U-Bending or Coil Available TP316 TP316L TP316Ti TP347 TP347H 6 152.4 1 25.4
A/SA-270 Seamless and Welded Austenitic TP304 TP304L 　 　 　 0.125 3.18 0.016 0.41 AW 80 25
Stainless Steel Sanitary Tube TP316 TP316L 　 　 　 TO TO TO TO
　 　 　 　 　 　 6 152.4 0.2 5.08
A/SA-312 Seamless and Welded Austenitic TP304 TP304L TP304H TP317 TP321 0.5 12.7 0.016 0.41 AW 80 25
Stainless Steel Pipe TP310S TP310H TP316H TP317L TP321H TO TO TO TO
Square/Round Pipe and Tube Avilable TP316 TP316L TP316Ti TP347 TP347H 　
　 TP309S TP316LN TP347HFG TP347LN TP348H 　 3600 2.5 63.5
A/SA-358 Welded Austenitic TP304 TP304L TP321 　 　 1 25.4 0.05 1 AW 50 15
Stainless Steel Pipe TP316 TP316L TP321H 　 　 TO TO TO TO
For high temperature 　 　 　 　 　 　 3600 2.5 63.5
A/SA-511 Seamless TP304 TP304L TP304H TP317 TP321 0.5 12.7 0.016 0.41 AW 80 25
Stainless Steel Pipe and Tube TP310S TP310H TP316H TP317L TP321H TO TO TO TO
Square/Round Pipe and Tube Avilable TP316 TP316L TP316Ti TP347 TP347H 48 1219 2.5 63.5
A/SA-554 Welded TP304 TP304L 　 　 　 0.5 12.7 0.016 0.41 AW 50 15
Stainless Steel Mechanical Tubing TP316 TP316L 　 　 　 TO TO TO TO
　 　 　 　 　 　 6 152.4 0.1 2.5
A/SA-778 Welded , Un-Annealed TP304 TP304L TP321 　 　 1 25.4 0.05 1 AW 50 15
Austenitic Stainless Steel Pipe TP316 TP316L TP321H 　 　 TO TO TO TO
　 　 　 　 　 　 　 3600 1 25.4
A/SA-789 Seamless and Welded Ferritic And S31803 S32205 S31500 　 　 0.25 6.35 0.02 0.508AW/MW 80 25
Austenitic Stainless Steel Tube S32750 S32760 S32304 　 　 TO TO TO TO
U-Bending Available 　 　 　 　 　 6 152.4 0.5 12.7
A/SA-790 Seamless and Welded Ferritic And S31803 S32205 S31500 　 　 0.25 6.35 0.02 0.508AW/MW 80 25
Austenitic Stainless Steel Pipe S32750 S32760 S32304 　 　 TO TO TO TO
　 　 　 　 　 　 　 3600 2.5 63.5
A/SA-928 Ferritic/Austenitic (Duplex) Stainless Steel Pipe S31803 S32205 S31500 　 　 0.25 6.35 0.02 0.508AW/MW 80 25
Electric Fusion Welded with S32750 S32760 S32304 　 　 TO TO TO TO
Addition of Filler Metal 　 　 　 　 　 　 3600 2.5 63.5
JIS-G3459 Stainless Steel Pipe and Tube SUS304 SUS304L SUS321 　 　 1 25.4 0.05 1 AW 50 15
  SUS316 SUS316L SUS316Ti 　 　 TO TO TO TO
  SUS347 SUS317 SUS347 　 　 48 1219 2 50.8
JIS-G3463 Stainless Steel Boiler and SUS304 SUS304L SUS321 　 　 0.125 3.18 0.016 0.41 AW/MW 80 25
Heat Exchanger Tube SUS316 SUS316L SUS316Ti 　 　 TO TO TO TO
U-Bending Available SUS347 SUS317 SUS347 　 　 6 152.4 1 25.4
GOST 9941-81 Seamless 08X18H10 03X18H11 12X18H10 03X17H14M2 　 0.5 12.7 0.016 0.41 AW 80 25
Stainless Steel Pipe and Tube 08X17H14M2 12X18H20T 08X18H10T 12X18H11T 　 TO TO TO TO
U-Bending Available 08X18H10 03X18H11 12X18H10 03X17H14M2 　
　 08X17H14M2 12X18H20T 08X18H10T 12X18H11T 　 48 1219 2.5 63.5
EN 10216-5 Seamless 1.4301 1.4306 1.4307 1.4571 　 0.5 12.7 0.016 0.41 AW 80 25
Stainless Steel Pipe and Tube 1.4948 1.4401 1.4404 1.4541 　 TO TO TO TO
  1.4940 1.4550 1.4912 1.4845 　
　 1.4462 1.4539 1.4438 1.4501 　 48 1219 2 50
DIN17456 Seamless 1.4301 1.4306 1.4307 1.4571 　 0.5 12.7 0.016 0.41 AW 80 25
Circular Austenitic 1.4948 1.4401 1.4404 1.4541 　 TO TO TO TO
Stainless Steel Pipe and Tube 1.4940 1.4550 1.4912 1.4845 　
For General Service 1.4462 1.4539 1.4438 1.4501 　 48 1219 2 50
DIN17457 Welded Circular Austenitic 1.4301 1.4306 1.4307 　 　 0.5 12.7 0.016 0.41 AW 50 15
Stainless Steel Pipe and Tube 1.4401 1.4404 1.4541 　 　 TO TO TO TO
For Special requirments 　 　 　 　 　 48 1219 2 50
DIN17458 Seamless 1.4301 1.4306 1.4307 1.4571 　 0.5 12.7 0.016 0.41 AW 80 25
Circular Austenitic 1.4948 1.4401 1.4404 1.4541 　 TO TO TO TO
Stainless Steel Pipe and Tube 1.4940 1.4550 1.4912 1.4845 　
For General Service 1.4462 1.4539 1.4438 1.4501 　 48 1219 2 50







Chemical Composition



Grade

C

max

Si

max

Mn

max

P

max

S

max

 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10





Physical Properties



Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20





Duplex Stainless Steel Pipe Application:



Chemical processing, Transport and Storage.

Oil and gas exploration and offshore rigs.

Oil and gas refining.

Marine environments.

Pollution control equipment.

Pulp and paper manufacturing

Chemical process PlantSuper Duplex Stainless Steel Pipes, EN 10216-5 1.4462 / 1.4410, UNS32760(1.4501), Pickled & Annealed 20ft 0
