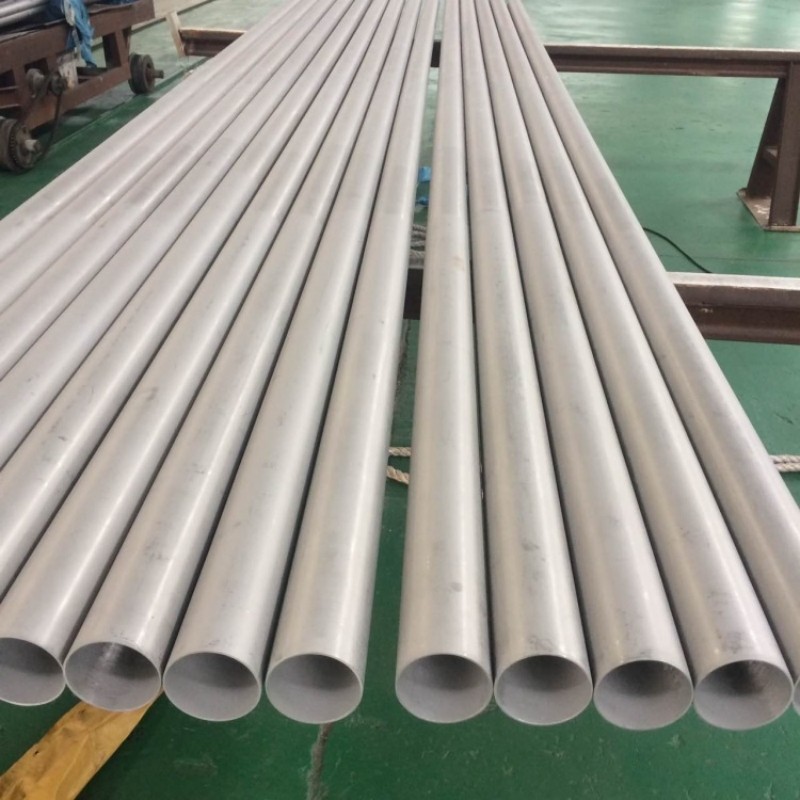

ASTM A312 TP347H Stainless Steel Seamless Pipe For High Temperature

  • ASTM A312 TP347H Stainless Steel Seamless Pipe For High Temperature
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

High Temperature Stainless Steel Seamless Pipe

,

TP347H Stainless Steel Seamless Pipe

,

ASTM A312 SS Seamless Pipe
Leave a Message
Product Description

ASTM A312 TP347H Stainless Steel Seamless Pipe For High Temperature



What is material TP347H?



ASTM A312 Gr Tp347h is an austenitic stainless steel. It has chromium and nickel content which give it the corrosion resistant properties. For extra toughness, the A312 347h material has higher carbon content.



We are the professional exporter and supplier of ASTM A312 TP347H Seamless Stainless Steel Pipe,SA 312 TP347H pipe,ASTM A312 TP347 Seamless Stainless Steel Pipe.


A312 TP347H pipe is mainly used where corrosion resistance and sustained operations at temperatures between 800°F and 1500°F (427°C ~ 816°C) is of the utmost importance. It is also a superior grade for use on heavy welded objects, which cannot be re-annealed.



As a higher grade from AISI 321H, the intergranular corrosion of 347H is achieved through the use of niobium (Nb) as a stabilizing element to maximize this feature. SS 347 has a good mechanical properties welding performance, excellent resistance to intergranular corrosion.



Chemical Composition:



Grade UNS C Mn P S Si Cr Ni
TP347H S34709 0.04-0.10 ≤2.00 ≤0.045 ≤0.030 ≤1.00 17.0-19.0 9.00-13.00





Mechanical Properties:



Grade Tensile Strengtd ksi (MPa) min Yield Strengtd 0.2% ksi offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
347/347H 75
(515)		 30
(205)		 40 201 95





Physical Properties:



Density
lbm/in3		 Coefficient of
Thermal Expansion (min/in)-°F		 Thermal Conductivity BTU/hr-ft-°F Specific Heat BTU/lbm -°F Modules of Elasticity (annealed)2-psi
at 68 °F at 68 – 212°F at 68 – 1832°F 68-932°F at 32 – 212°F in tension (E)
0.288 9.2 11.4 14.7 0.12 28 x 106





ASTM A312 TP347H Stainless Steel Equivalent Material:



ASTM



UNS NO.

 KOREA/JAPAN GERMAN BRITISH
STAND ARD



KS/JIS Symbol



KS/JIS Numbe



Remarks



DIN Type

 DIN
Number		 Materiral
Number



Remarks

 B.S
Number		 B.S
Grade



Remarks
TP 347H S34709 316HTP D3576 / G3459 -16 X5 CrNiNb 18 9   1.4543 (3b) 3605 347HS18





Applications:



-Food processing equipment, particularly in beer brewing, milk processing & wine making
-Kitchen benches, sinks, troughs, equipment and appliancesArchitectural panelling, railings & trim
-Chemical containers, including for transport
-Heat Exchangers
-Woven or welded screens for mining, quarrying & water filtration
-Threaded fasteners

-SpringsASTM A312 TP347H Stainless Steel Seamless Pipe For High Temperature 0
