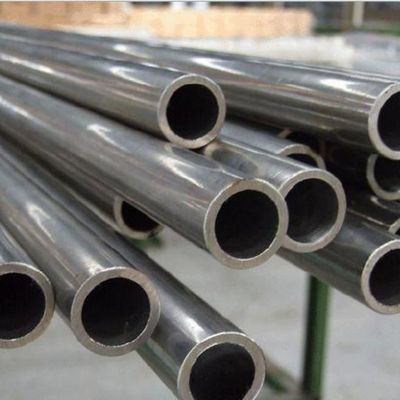

ASTM A213 (ASME SA213) TP444 Stainless Steel Seamless Pipe Applied For Heat Exchanger

  • ASTM A213 (ASME SA213) TP444 Stainless Steel Seamless Pipe Applied For Heat Exchanger
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

ASME SA213 Stainless Steel Seamless Pipe

,

ASME A213 Stainless Steel Seamless Pipe

,

Heat Exchanger Stainless Steel Seamless Pipe
Leave a Message
Product Description

ASTM A213 (ASME SA213) TP444 Stainless Steel Seamless Pipe Applied For Heat Exchanger



ASTM A213 ASME SA213 Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes. YUHONG GROUP is specialized manufacturer of ASTM A213 TP304L, ASME SA213 TP304 TP304L TP304H TP316L TP316Ti TP321 TP317L TP347 TP347H Stainless Steel Heat Exchanger Tubesare used in Shell and Tube Heat Exchanger with all types of process industries. We offer the market’s widest selection of stainless steel grades and has extensive experience of manufacturing heat exchanger tubes.



ASTM A213 SS tubes and ASME SA213 Stainless Steel Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general ASTM A213 ss seamless tube is manufactured in sizes from 1/2” to 8”NB according to current standards ASTM, API, and ASME.



ASTM A213 ASME SA213 Heat Exchanger Tube Main Testing Terms and Procedure
1. Heat Treatment and Solution Annealing / Bright Annealing
2. Cutting to required length and deburring;
3. Chemical Composition Analysis Test With 100% PMI and One tube from each heat by Direct Reading Spectrometer
4. Visual Test and Endoscope Test for Surface Quality Test
5. 100% Hydrostatic Test and 100% Eddy Current Test
6. Ultrasonic Test subject to the MPS (Material Purchase Specification)
7. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test
8. Impact Test subject to Standard request
9. Grain Size Test and Intergranular Corrosion Test
10. Ultrasoic measuring of Wall Thickness.
Tubes End: Tubes are supplied with Plain end, Bevel end, Square cut under request, and deburring.





A213 TP444 Chemical element composition content

Component C Si Mn P S Cr Mo N More
Max - - - - - 17.5 1.75 - Ni+Cu≤1.00；Ti+Nb:0.20+4(C+N) ~ 0.80
Min 0.03 1 1 0.04 0.03 19.5 2.5 0.035



A213 TP444 Mechanical properties

Tensile strength

σb
Mpa

yield point

σs
Mpa

elongation or elongation after fracture

δ
%

Hardness

HBW
≥415 ≥275 ≥20 ≤217





Application:
Nuclear Industries
Chemical Industry
Petro-Chemical industry
HVAC (Heating Ventilation Air Conditioning), refrigeration
Food and Beverages
Power Generation


Shell and Tube Heat Exchangers

ASTM A213 (ASME SA213) TP444 Stainless Steel Seamless Pipe Applied For Heat Exchanger 0
