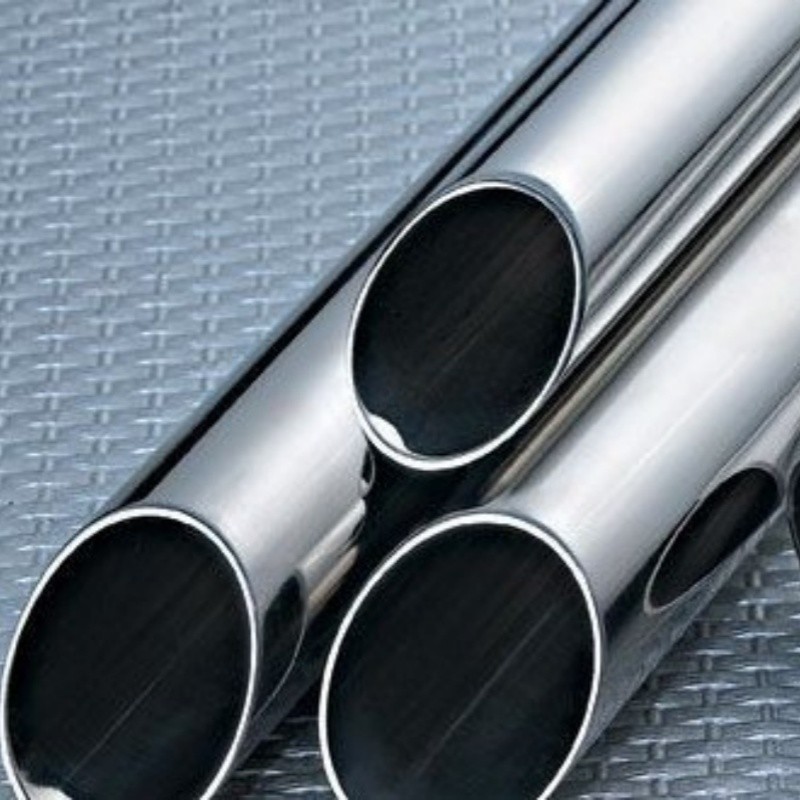

ASTM A312 S31254 SMO 254 Seamless Pipe For High Temperature Seawater

  • ASTM A312 S31254 SMO 254 Seamless Pipe For High Temperature Seawater
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Seawater SMO 254 Seamless Pipe

,

High Temperature S31254 Seamless Pipe

,

ASTM A312 Seamless Pipe
Leave a Message
Product Description

ASTM A312 S31254 SMO 254 Seamless Pipe High Temperature Seawater

What is S31254 material?

NAS 185N (SUS 312L, UNS S31254,SMO 254) is a high corrosion resistant austenitic stainless steel with a high nickel, high chromium, high molybdenum alloy design, and provides excellent corrosion resistance in severe corrosion environments such as high temperature seawater.


SMO 254(UNS S31254) is a high-alloy austenitic stainless steel developed for use in seawater and other aggressive chloride-bearing media. The steel is characterized by the following properties:

-Excellent resistance to pitting and crevice corrosion, PRE = ≥42.5*
-High resistance to general corrosion
-High resistance to stress corrosion cracking
-Higher strength than conventional austenitic stainless steels
-Good weldability


Chemical Composition of S31254 / SMO 254

C Si Mn P S Cr Ni Mo N Cu
≤0.020 ≤0.80 ≤1.00 ≤0.030 ≤0.010 20 18 6.1 0.20 0.7


Mechanical Properties of S31254 / SMO 254

Properties Metric Imperial
Tensile strength 680 MPa 98600 psi
Yield strength 300 MPa 43500 psi
Modulus of elasticity 195 GPa 28300 ksi
Shear modulus 75 GPa 10900 ksi
Poisson’s ratio 0.30 0.30
Elongation at break 50 % 50 %
Hardness, Brinell 210 210


UNS S31254 Physical Properties

Density (Kg.m-1) 8000
Magnetic Permeability <1.05
Young’s Modulus (N/mm2) 200 x 103
Specific Heat, 20°C (J.Kg-1.°K-1) 500
Specific Electrical Resistance, 20°C (µO.m) 0.85
Thermal conductivity, 20°C 13.5


Thermal Properties of S31254 / SMO 254

Properties Metric Imperial
Thermal expansion co-efficient (@20-100°C/68-212°F) 16.5 µm/m°C 9.17 µin/in°F
Thermal conductivity 14 W/mK 97.2 BTU in/hr.ft².°F


Equivalent Material of S31254 / SMO 254:

STANDARD UNS WERKSTOFF NR. AFNOR EN SIS
SMO 254 S31254 1.4547 Z1 CNDU 20.18.06Az X1CrNiMoCuN20-18-7 2378


Applications:

-Saltwater handling
-Tall oil distillation columns
-Flue gas desulfurization scrubbers
-Components used in petroleum production
-Food processing equipment
-Process equipment in chemical industry
-Bleaching equipment in the pulp and paper industry
-Flue-gas cleaning

Size Range Of SMO 254 Pipe


1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80
SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80
SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80
SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH
SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH
SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH
SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH
SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH
SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH
SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH
SCH-40 (.375)
ASTM A312 S31254 SMO 254 Seamless Pipe For High Temperature Seawater 0
