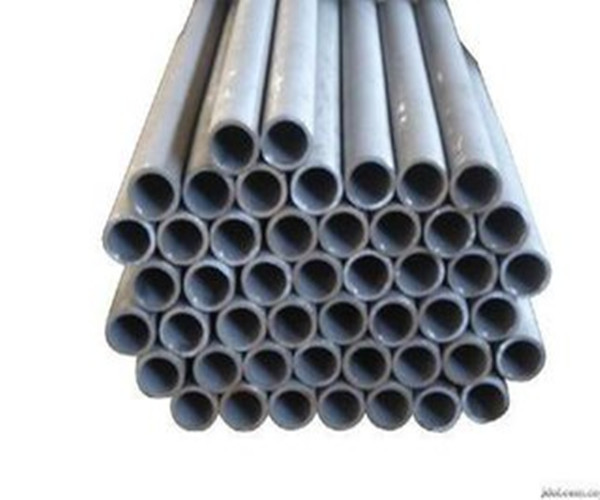

Super Duplex Steel Pipes A789, A790 , A928 S31803 (2205) S32750 (2507) S32760

  • Super Duplex Steel Pipes A789, A790 , A928 S31803 (2205) S32750 (2507) S32760
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Super Duplex Steel Pipes A789

,

A790 Super Duplex Steel Pipes

,

2205 Stainless Steel Seamless Pipe
Leave a Message
Product Description

Duplex Steel Pipes , Super Duplex Pipes, A789, A790 , A928 S31803(2205) S32750 (2507) S32760



WenZhou Shangle Steel Co., Ltd: Your premier source for special steel products. Specializing in Austenitic Stainless Steel and top-tier Nickel Alloy steels for over 10 years. Achieve unparalleled results with our seamless and welded pipes and tubes, trusted by a global clientele in 45+ countries. Our adherence to ISO9001 and ISO14001 standards underscores our commitment to special steel quality and excellence. Choose WenZhou Shangle Steel for your definitive steel solutions.

Duplex Tube

Standard: ASTM/ASME A/SA789, A/SA790, A/SA928, DIN17456/17458, EN10216-5. After negotiation, we can supply

pipe with customers'requirement.

Material Grade:

UNS EN DIN C % Cr% Ni% Mo% N% Other %
S31803 1.4462 X2CrNiMoN22-5-3 0.030max 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20 /
S32205 1.4462 X2CrNiMoN22-5-3 0.030max 22.0-23.0 4.5-6.5 3.0-3.5 0.14-0.20 /
S32101 1.4162   0.040max 21.0-22.0 1.35-1.70 0.10-0.80 0.20-0.25 Cu 0.10-0.80
S32304     0.030max 21.5-24.5 3.0-5.5 0.05-0.60 0.15-0.20 Cu 0.05-0.60
S32750 1.4410 X2CrNiMoN25-7-4 0.030max 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 Cu 0.50max
S32760     0.050max 24.0-26.0 6.0-8.0 3.0-4.0 0.20-0.30 Cu 0.50-1.00





Mechanical Property:



UNS Tensile Strength
Min, Mpa		 Yield Strength
Min, Mpa		 Elongation in 2 in Or 50mm Min, % Hardness Max,
HRC
S31803 620 450 25 30
S32205 655 485 25 30
S32101 700 530 30 30
S32304 690 450 25 30
S32750 800 550 15 32
S32760 750 550 25 32





Size Range:



Stainless Steel Seamless Tube ASTM A789/A789M: OD: Φ12.7mm-Φ630mm; WT:0.5mm-60mm
Stainless Steel Welded Tube ASTM A789/A789M: OD: Φ12.7mm-Φ2500mm; WT:0.5mm-60mm







Duplex Stainless Steel have a structure that contains both ferrite and austenite. Duplex alloys have higher strength and better stress corrosion cracking resistance than most austenitic alloys and greater toughness than ferritic alloys, especially at low temperatures. The corrosion resistance of duplex alloys depends primarily on their composition, especially the amount of chromium, molybdenum, and nitrogen they contain.
