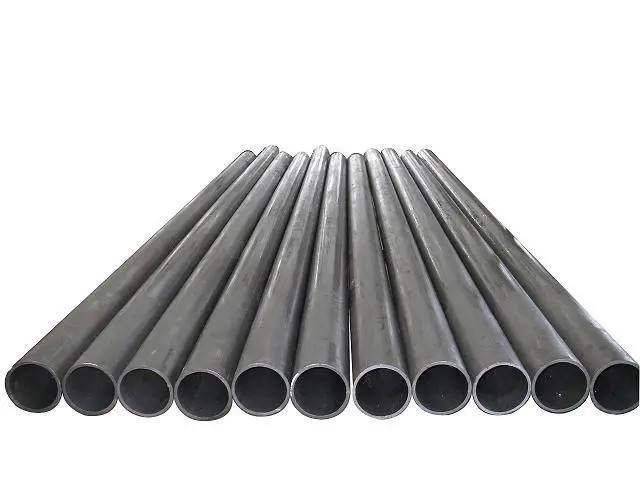

ASTM A790 UNS S31803 /32205 Duplex Stainless Steel Pipes For Heat Exchanger

  • ASTM A790 UNS S31803 /32205 Duplex Stainless Steel Pipes For Heat Exchanger
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

32205 Duplex Stainless Steel Pipes

,

UNS S31803 Stainless Steel Pipes

,

ASTM A790 UNS S31803
Leave a Message
Product Description

ASTM A790 UNS S31803 /32205 Duplex Stainless Steel Pipes For Heat Exchanger



Duplex Stainless Steel Pipe, ASTM A790/790M S31803 (2205 / 1.4462), UNS S32750 (1.4410)



WenZhou Shangle Steel Co., Ltd: Your premier source for special steel products. Specializing in Austenitic Stainless Steel and top-tier Nickel Alloy steels for over 10 years. Achieve unparalleled results with our seamless and welded pipes and tubes, trusted by a global clientele in 45+ countries. Our adherence to ISO9001 and ISO14001 standards underscores our commitment to special steel quality and excellence. Choose WenZhou Shangle Steel for your definitive steel solutions. Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530

Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),

UNS32760(1.4501)





Chemical Composition





Grade

C

max

Si

max

Mn

max

P

max

S

max

 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10





Physical Properties





Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20





Duplex Stainless Steel Pipe Application:



Chemical processing, Transport and Storage.

Oil and gas exploration and offshore rigs.

Oil and gas refining.

Marine environments.

Pollution control equipment.

Pulp and paper manufacturing

Chemical process Plant



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing





Duplex Stainless Steel have a structure that contains both ferrite and austenite. Duplex alloys have higher strength and better stress corrosion cracking resistance than most austenitic alloys and greater toughness than ferritic alloys, especially at low temperatures. The corrosion resistance of duplex alloys depends primarily on their composition, especially the amount of chromium, molybdenum, and nitrogen they contain.



Standard: ASTM/ASME A/SA789, A/SA790, A/SA928, DIN17456/17458, EN10216-5. After negotiation, we can supply pipe with customer's special requirement.

Material Grade: Chemical Composition

UNS EN DIN C % Cr% Ni% Mo% N% Other %
S31803 1.4462 X2CrNiMoN22-5-3 0.030max 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20 /
S32205 1.4462 X2CrNiMoN22-5-3 0.030max 22.0-23.0 4.5-6.5 3.0-3.5 0.14-0.20 /
S32101 1.4162   0.040max 21.0-22.0 1.35-1.70 0.10-0.80 0.20-0.25 Cu 0.10-0.80
S32304     0.030max 21.5-24.5 3.0-5.5 0.05-0.60 0.15-0.20 Cu 0.05-0.60
S32750 1.4410 X2CrNiMoN25-7-4 0.030max 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 Cu 0.50max
S32760     0.050max 24.0-26.0 6.0-8.0 3.0-4.0 0.20-0.30 Cu 0.50-1.00



Mechanical Property:



UNS Tensile Strength
Min, Mpa		 Yield Strength
Min, Mpa		 Elongation in 2 in Or 50mm Min, % Hardness Max,
HRC
S31803 620 450 25 30
S32205 655 485 25 30
S32101 700 530 30 30
S32304 690 450 25 30
S32750 800 550 15 32
S32760 750 550 25 32
