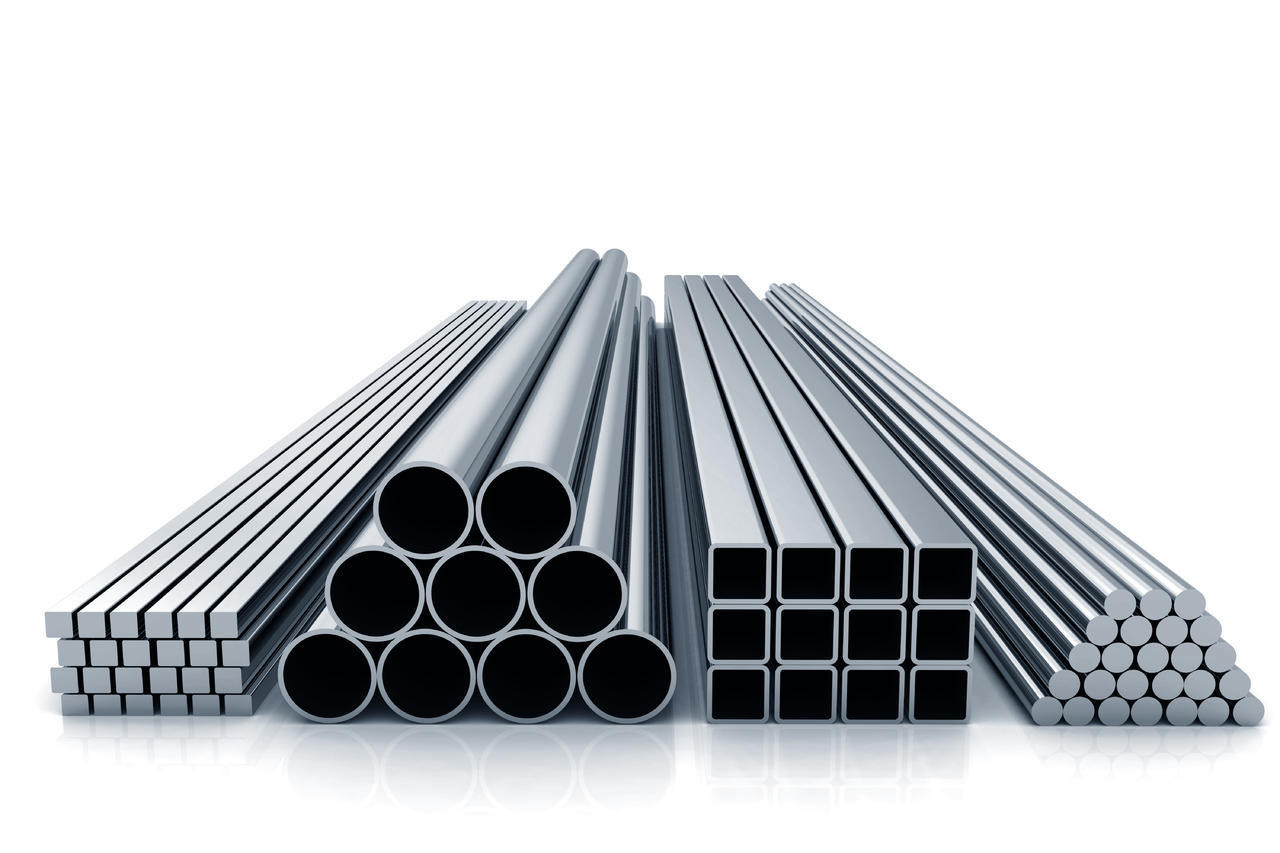

Astm A790 S32205 Duplex Stainless Steel Pipes

  • Astm A790 S32205 Duplex Stainless Steel Pipes
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

Astm Duplex Stainless Steel Pipes

,

S32205 Duplex Stainless Steel Pipes

,

Astm A790 Duplex Steel Pipes
Leave a Message
Product Description

Duplex Stainless Steel Pipes, ASTM A789, ASTM A790, S31803, S32750, S32205, S31254MO.



WenZhou Shangle Steel Co., Ltd: Your premier source for special steel products. Specializing in Austenitic Stainless Steel and top-tier Nickel Alloy steels for over 10 years. Achieve unparalleled results with our seamless and welded pipes and tubes, trusted by a global clientele in 45+ countries. Our adherence to ISO9001 and ISO14001 standards underscores our commitment to special steel quality and excellence. Choose WenZhou Shangle Steel for your definitive steel solutions.

Duplex Stainless Steel

UNS S31803 - UNS S32205

Duplex Plate/Sheet
Duplex Seamless & Welded Tube
Duplex Seamless & Welded Pipe
Duplex Round Bar
Duplex Flanges F51
Duplex Specialty Forgings
Duplex Seamless & Welded BW Fittings





Trade Name UNS Duplex Stainless Steel Industry Specifications

Chemical

Composition

 Min.Tensile
(KSI)		 Min.Yield
(KSI)		 Elongation
%
2205®
22Cr		 UNS S31803 ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F51),A240, A276, A479, A789, A790, A815, A928, A988
SAE J405		 C 0.30 max
Cr 21.0-23.0
Mn 2.00 max
Mo 2.50-3.50
N 0.08-0.20
Ni 4.50-6.50
P 0.030 max
S 0.020 max
Si 1.00 max		 90 65 25
2205®
22Cr		 UNS S32205 ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988
SAE J405		 C 0.30 max
Cr 22.0-23.0
Mn 2.00 max
Mo 3.00-3.50
N 0.14-0.20
Ni 4.50-6.50
P 0.030 max
S 0.020 max
Si 1.00 max		 95 65 25



2205® is a registered trademark for Sandvik



General Duplex stainless steel information

2205 is the most widely used duplex (ferritic/austenitic) stainless steel grade. It finds applications due to both excellent corrosion resistance and high strength. The standard duplex S31803 composition has over the years been refined by many steel suppliers, and the resulting restricted composition range was endorsed as UNS S32205 in 1996. Duplex S32205 gives better guaranteed corrosion resistance, but for much of the Duplex S31803 currently produced also complies with Duplex S32205. 2205 is not generally suitable for use at temperatures above 300ºC as it suffers from precipitation of brittle micro-constituents, nor below -50ºC because of its ductile-to-brittle-transition.



Duplex Applications

Chemical processing, transport and storage,
Oil and Gas exploration and processing equipment,
Marine and other high chloride environments,
Pulp and paper digesters, liquor tanks and paper machines.



Duplex Corrosion Resistance

Excellent general corrosion resistance; superior to Grade 316 in most environments. Excellent resistance to localized corrosion including intergranular, pitting and crevice corrosion; the CPT of 2205 is generally at least 35ºC. The grade is also resistant to chloride stress corrosion cracking (SCC) at temperatures of up to about 150ºC. Grade 2205 will often perform well in environments which cause premature failure of austenitic grades. It has better resistance to sea water then Grade 316.



Duplex Heat Resistance

Although 2205 has good high temperature oxidation resistance, this grade - like other duplex stainless steels - suffers from embrittlement if held for even short times at temperatures above 300ºC. If embrittled, this can only be rectified by a full solution annealing treatment. Duplex stainless steels are almost never used above 300ºC.



Duplex Heat Treatment

Solution treatment (annealing) - heat to 1020ºC-1100ºC and cool rapidly. This grade cannot be hardened by thermal treatment, but does work harden.


Classification Society Criterion:CSS,DNV,GL,LR,NK,KR,ABS,BV



Some of the quality tests carried out by us includes:



Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage.
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:



  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
