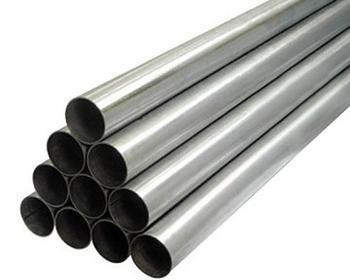

ASTM A790 UNS S31803 S32205 DUPLEX STEEL SEAMLESS PIPE 2205

  • ASTM A790 UNS S31803 S32205 DUPLEX STEEL SEAMLESS PIPE 2205
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

S32205 DUPLEX STEEL SEAMLESS PIPE

,

DUPLEX STEEL SEAMLESS PIPE 2205

,

ASTM A790 UNS S31803 PIPE
Leave a Message
Product Description

ASTM A790 UNS S31803 S32205 DUPLEX STEEL SEAMLESS PIPE 2205





WenZhou Shangle Steel Co., Ltd: Your premier source for special steel products. Specializing in Austenitic Stainless Steel and top-tier Nickel Alloy steels for over 10 years. Achieve unparalleled results with our seamless and welded pipes and tubes, trusted by a global clientele in 45+ countries. Our adherence to ISO9001 and ISO14001 standards underscores our commitment to special steel quality and excellence. Choose WenZhou Shangle Steel for your definitive steel solutions.



ASTM A790 UNS S31803 is a specification in duplex steel material. The material is an alloy of steel with chromium and molybdenum in it. The addition of these materials makes the pipes stronger and much corrosion resistant. The SA 790 UNS S31803 one of the super duplex grades which is stronger and corrosion resistant. The duplex grades are divided into three groups as duplex, lean and super duplex. The super duplex is used for specific applications that operate under elevated temperatures. The Duplex UNS S31803 Pipes also possesses an elevated strength due to the production nature. The material could be hot rolled and welded or be cold drawn. The cold drawn pipes are seamless and have less absolute roughness which makes them precise in dimensions. The hot rolled and Welded A928 UNS S31803 material on the other hand is much stronger and could be used with welding applications. The ease of welding in the ASTM A790 UNS S31803 Tube makes it a choice for high pressure applications that will require extensive welding at installation.





Chemical Composition



Grade C
max		 Si
max		 Mn
max		 P
max		 S
max		 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10



Physical Properties



Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20





Duplex Stainless Steel Pipe Application:

  • Chemical processing, Transport and Storage.
  • Oil and gas exploration and offshore rigs.
  • Oil and gas refining.
  • Marine environments.
  • Pollution control equipment.
  • Pulp and paper manufacturing
  • Chemical process Plant



Some of the quality tests carried out by us includes:



Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections



Supplementary Testing :



  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
