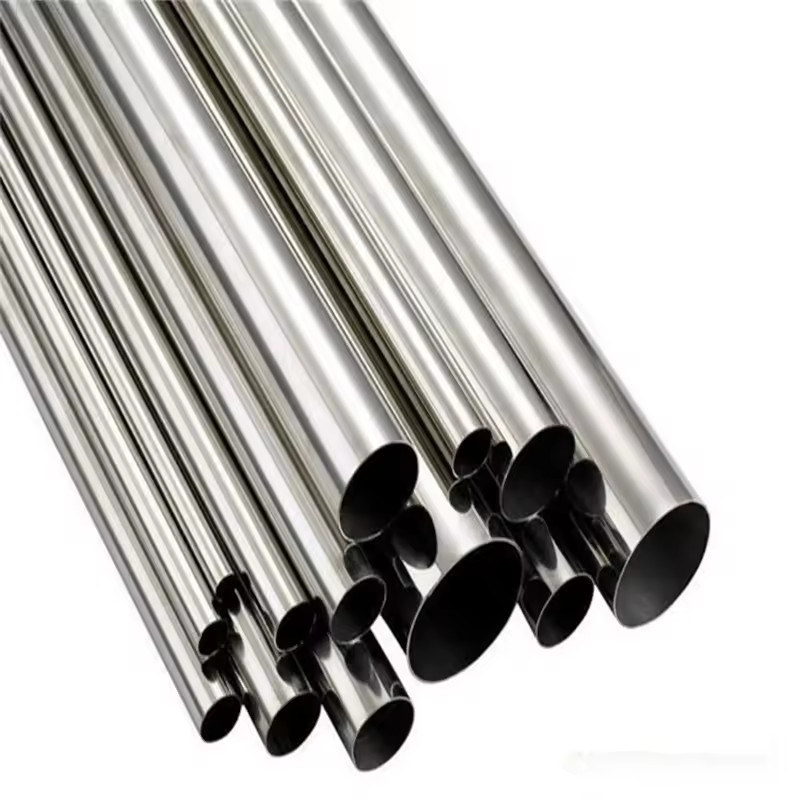

EN 10216-5 1.4841 TP310 UNS 31000 Stainless Steel Seamless Pipe

  • EN 10216-5 1.4841 TP310 UNS 31000 Stainless Steel Seamless Pipe
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

UNS 31000 Stainless Steel Seamless Pipe

,

1.4841 Stainless Steel Seamless Pipe
Leave a Message
Product Description

EN 10216-5 1.4841 TP310 UNS 31000 Stainless Steel Seamless Pipe





Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.





Outside diameter and Tolerance



Hot rolled Outside Diameter, mm Tolerance
30≤OD≤219.1 D2, ±1% or ±0.5mm
219.1＜OD≤610 D1, ±1.5% or ±0.75mm
Cold Drawn Outside Diameter, mm Tolerance
OD≤219.1 D3, ±0.75% or ±0.3mm
OD≤219.1 D4, ±0.5% or ±0.1mm





Equivalent Of 1.4841



STANDARD

WERKSTOFF NR.

UNS
SS 310 1.4841 S31000



Mechanical Properties



Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35%





Chemical Composition of 1.4841



Chemical Composition 1.4841
Carbon 0.25 max
Manganese 2.00 max
Silicon 1.50 max
Phosphorus 0.045 max
Sulphur 0.030 max
Chromium 24.00 - 26.00
Nickel 19.00 - 22.00


Size Range



Production Outside Diameter Wall Thickness
Seamless Pipe 6.00mm to 830mm 0.5mm to 48mm





Tests



1. Heat Treatment and Bright Annealing

2. Cutting to required length and deburring;

3. Chemical Composition Analysis Test With 100% PMI and One tube from each heat by Direct Reading Spectrometer

4. Visual Test and Endoscope Test for Surface Quality Test

5. 100% Hydrostatic Test and 100% Eddy Current Test

6. Ultrasonic Test subject to the MPS (Material Purchase Specification)

7. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test

8. Impact Test subject to Standard request

9. Grain Size Test and Intergranular Corrosion Test

10. Ultrasoic measuring of Wall Thickness



Applications



-High Pressure Boiler
-Heat Exchanger
-Low and Medium Pressure Boiler
-OCTG
-Ship Building
-Automobile Structure
-Petroleum Cracking
-Chemical Fertilizer EquipmentEN 10216-5 1.4841 TP310 UNS 31000 Stainless Steel Seamless Pipe 0
