SS347 347H Heavy Wall Stainless Steel Pipe , ASTM A213 TP347H Sch 40 SS Pipe

  • SS347 347H Heavy Wall Stainless Steel Pipe , ASTM A213 TP347H Sch 40 SS Pipe
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number Stainless steel thick walled pipe
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 5workdays
Payment Terms L/C, T/T
Supply Ability 900TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

347H Heavy Wall Stainless Steel Pipe

,

ASTM Sch 40 SS Pipe

,

SS347 Heavy Wall Stainless Steel Pipe
Leave a Message
Product Description

ASTM A213 TP347H, UNS S34709/1.4961 Thick Walled Stainless Steel Seamless Tubes

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description:

TP347H is a high carbon austenitic chromium stainless steel. Found in applications that demand high temperature resistance, other major design features include: Similar resistance and corrosion protection as Alloy 304. Used for heavy welded equipment when annealing is not possible.

TP347H is type of precipitation-hardened steels. It possesses many same properties and features of TP347 stainless steel. In addition to its higher carbon content, TP347H is stabilized with an addition of columbium. Because of its elevated resistance to corrosion, TP347H is usually applied in high stress, high corrosion environments where exposure tends to be severe. This steel shows high workability under common welding techniques. It can be treated with heat, however, it will not respond. Only cold working is sufficient to increase TP347H’s toughness and strength.



Chemical Composition:

Garde C Mn Si Cr Ni P S Nb
SS347 ≤0.08 ≤2.00 ≤0.75 17.0~19.0 9.0~13.0 ≤0.045 ≤0.03 10C~1.00
SS347H 0.04~0.10 ≤2.00 ≤0.75 17.0~19.0 9.0~13.0 ≤0.045 ≤0.03 8C~1.00



Mechanical Properties:

Grade Tensile Strength ksi (MPa) min Yield Strength 0.2% ksi offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
SS347/347H 75
(515)		 30
(205)		 40 201 95



Applications:

Chemical Processing

Food Processing Equipment and Storage

Petroleum Refining

Pharmaceutical Production

Waste Heat Recovery

Oil and Gas Industry

Waste Water Treatment



Detail Images:

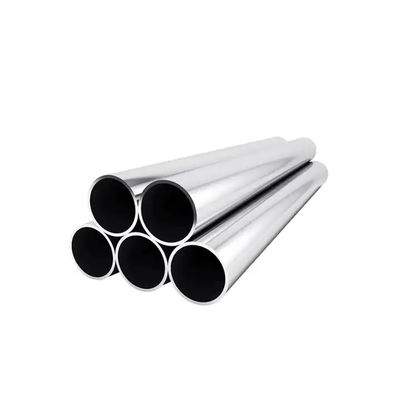

SS347 347H Heavy Wall Stainless Steel Pipe , ASTM A213 TP347H Sch 40 SS Pipe 0SS347 347H Heavy Wall Stainless Steel Pipe , ASTM A213 TP347H Sch 40 SS Pipe 1
